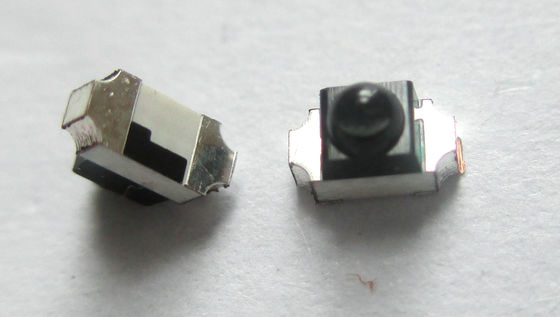

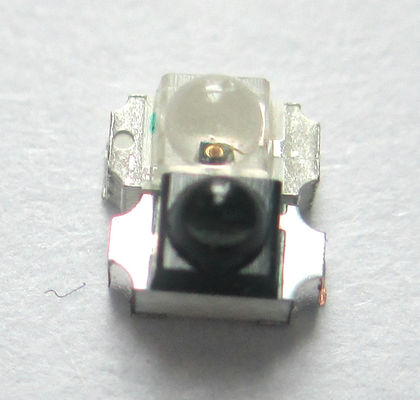

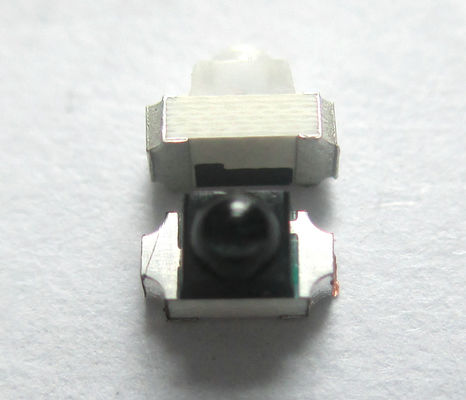

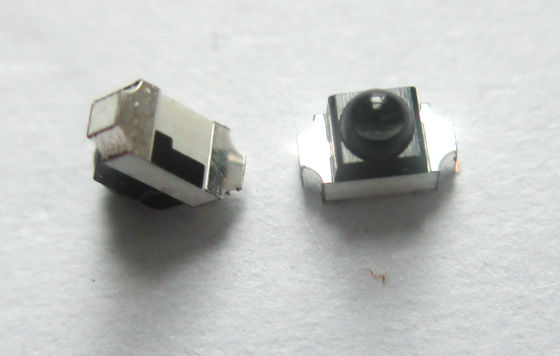

Led Chip Infrared IR 940nm / Input 100mA / DC 1.2V-1.4V SMD LED Emitter Diode Components for CCTV Cameras

Led Chip Infrared IR 940nm / Input 100mA / DC 1.2V-1.4V SMD LED Emitter Diode Components for CCTV Cameras
Led Chip Infrared IR 940nm / Input 100mA / DC 1.2V-1.4V SMD LED Emitter Diode Components for CCTV Cameras Led Chip Infrared IR 940nm / Input 100mA / DC 1.2V-1.4V SMD LED Emitter Diode Components for CCTV Cameras Led Chip Infrared IR 940nm / Input 100mA / DC 1.2V-1.4V SMD LED Emitter Diode Components for CCTV Cameras Led Chip Infrared IR 940nm / Input 100mA / DC 1.2V-1.4V SMD LED Emitter Diode Components for CCTV Cameras Led Chip Infrared IR 940nm / Input 100mA / DC 1.2V-1.4V SMD LED Emitter Diode Components for CCTV Cameras

Large Image :  Led Chip Infrared IR 940nm / Input 100mA / DC 1.2V-1.4V SMD LED Emitter Diode Components for CCTV Cameras

Product Details:
Place of Origin: China (mainland)
Brand Name: Double Light
Certification: ISO9001:2008,ROHS
Model Number: DL-R1206IRCA
Payment & Shipping Terms:
Minimum Order Quantity: 10,000pcs
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: Infrared LEDs Diameter: 1206 Size
Emitted Color: 9400nm Infrared LED Peak Emission Wavelength: 940nm
Chip Material: GaAlAs Lens Type: Water Clear
Forward Voltage @20ma: 1.1-1.4V Viewing Angle: 50 Deg
High Light:

ir emitting diode

,

940nm infrared led



Led Chip Infrared IR 940nm / Input 100mA / DC 1.2V-1.4V SMD LED Emitter Diode Components for CCTV Cameras





Features:

  1. Package in 8mm tape on 7" diameter reel.
  2. Outline Package:3.2x1.6x2.33mm
  3. Compatible with automatic placement equipment.
  4. Compatible with infrared and vapor phase reflow solder process.
  5. Mono-color type.
  6. The product itself will remain within RoHS compliant Version.



Descriptions:

  1. The 1206IR is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with flat top view lens.
  2. The device is spectrally matched with photodiode and phototransistor.



Applications:

  1. PCB mounted infrared sensor.
  2. Infrared emitting for miniature light barrier.
  3. Floppy disk drive.
  4. Optoelectronic switch.
  5. Smoke detector.
  6. Applicable to all kinds of mechanical keyboard launch requirements
  7. Suitable for all kinds of infrared transmitting and receiving equipment
  8. Infrared remote control transmitter is suitable for all kinds of electronic products
  9. Applicable to all kinds of small household electrical appliance products for reflection application



Part No. Chip Material Lens Color Source Color
DL-R1206IRCA-1IR120 GaAlAs Water Clear Infrared















Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 120 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 300 mA
Forward Current IF 100 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +100℃
Lead Soldering Temperature Tsld 260℃ for 5 Seconds




Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Radiant Intensity * Ee 0.80 1.35 --- mW/sr IF=20mA
--- 3.50 ---

IF=100mA

(Pulse Width≤100µs, Duty≤1%)
Viewing Angle * 2θ 1/2 --- 120 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 940 --- nm IF=20mA (Note 3)
Spectral Bandwidth △λ --- 50 --- nm IF=20mA
Forward Voltage VF 0.80 1.20 1.50 V IF=20mA
--- 1.60 1.80

IF=100mA

(Pulse Width≤100µs, Duty≤1%)
Reverse Current IR --- --- 10 µA VR=5V
