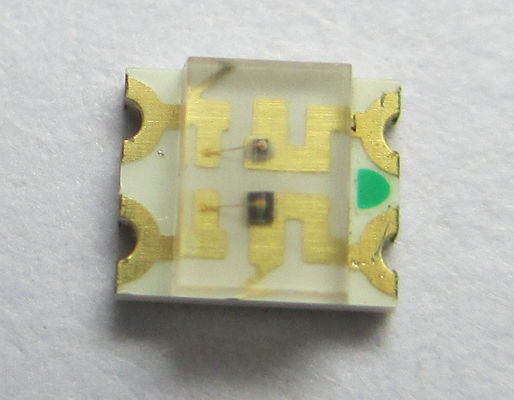

0.75mm Height Light Emitting Diode Led / Power Led Diode With Water Clear Color

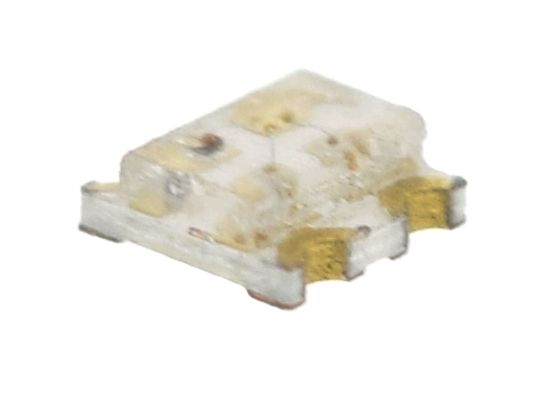

0.75mm Height Light Emitting Diode Led / Power Led Diode With Water Clear Color

0.75mm Height Light Emitting Diode Led / Power Led Diode With Water Clear Color

Product Details:

Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-PCB0605RIR

Payment & Shipping Terms:

Minimum Order Quantity: 10,000pcs
Price: US$ 0.01 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: LED Indicators Package: SMD Bi-Color Led
Emitted Color: Hyper Red & Infrared Chip Chip LEDs Peak Emission Wavelength: 630nm ,940nm
Model Number: DL-PCB0605RIR Body Color: Water Clear
Forward Voltage @20ma: 1.9-2.0v Viewing Angle: 120 Deg

DL-PCB0605RIR.pdf

Red & Infrared signal Indicators
■ Features
* Dual Optical Wavelength LED Package 660nm Red & 940nm Infrared
* Reflector Coating Type of Surface Mount Device PLCC Package
* High Power & High Uniformity
* RoHS Compliant
■ Applications
* Red & Infrared signal Indicators
* SPO2 pulse Oximeter
* Optical Switch or Data link
* Dual Channel Free Space Optical Communications
* Security Sensor * Light Source




Part No.Chip MaterialLens ColorSource Color
DL-PCB0605RIRAlGaAsWater ClearHyper Red
GaAlAsInfrared
  • Package Dimension:

0.75mm Height Light Emitting Diode Led / Power Led Diode With Water Clear Color


Absolute Maximum Ratings at Ta=25℃

ParametersSymbolEmitting ColorMax.Unit
Power DissipationPDHyper Red60mW
Infrared130

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

IFPHyper Red100mA
Infrared1000
Continuous Forward CurrentIFHyper Red25mA
Infrared50
Reverse VoltageVR 5V
Operating Temperature RangeTopr -40℃ to +80℃
Storage Temperature RangeTstg -40℃ to +85℃
Soldering TemperatureTsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

ParametersSymbolEmitting ColorMin.Typ.Max.UnitTest Condition
Luminous IntensityIVHyper Red5080---mcdIF=20mA
Radiant IntensityEeHyper Red 1.8 mW/sr

IF=20mA


Infrared---5.0---IF=50mA
Viewing Angle1/2Hyper Red---140---DegIF=20mA
Infrared---140---
Peak Emission WavelengthλpHyper Red---660---nmIF=20mA
Infrared---940---
Dominant WavelengthλdHyper Red---650---nmIF=20mA
Infrared---930---
Spectral Line Half-Width△λHyper Red---20---nmIF=20mA
Infrared---20---
Forward VoltageVFHyper Red---1.80---VIF=20mA
Infrared---1.00---
Reverse CurrentIRHyper Red------10µAVR=5V
Infrared10
