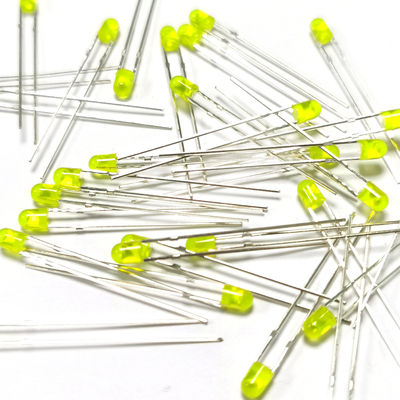

Diameter 3mm Height 4.1mm Indicator LED 200mcd 595nm Without Flange

 Wide Angle Ultra Yellow Indicator LED Yellow Diffused Lens

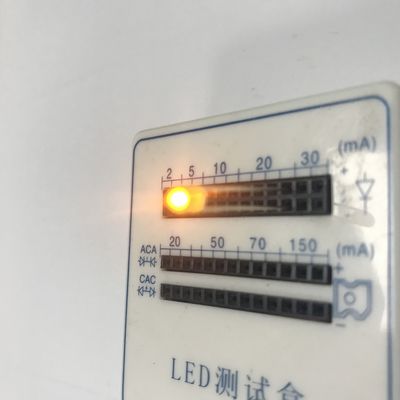

       This is  Wide Angle Ultra Yellow LED, Yellow Diffuse Lens  and the Emitting Color of this size is changeable.

Notes:

• All dimensions are in millimeters (inches).
• Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
• Protruded resin under flange is 1.00 mm (.039″) max.

Specifications are subject to change without notice.

Features:

• High luminous intensity output.
• Oval shape.
• Well defined spatial radiation.
• Wide viewing angle (2θ_1/2): 50^o/100^o.
• Reliable and robust.
• The product itself will remain within RoHS complaint Version.

Descriptions:

• This precision optical performance oval LED is specially designed for passenger information signs.

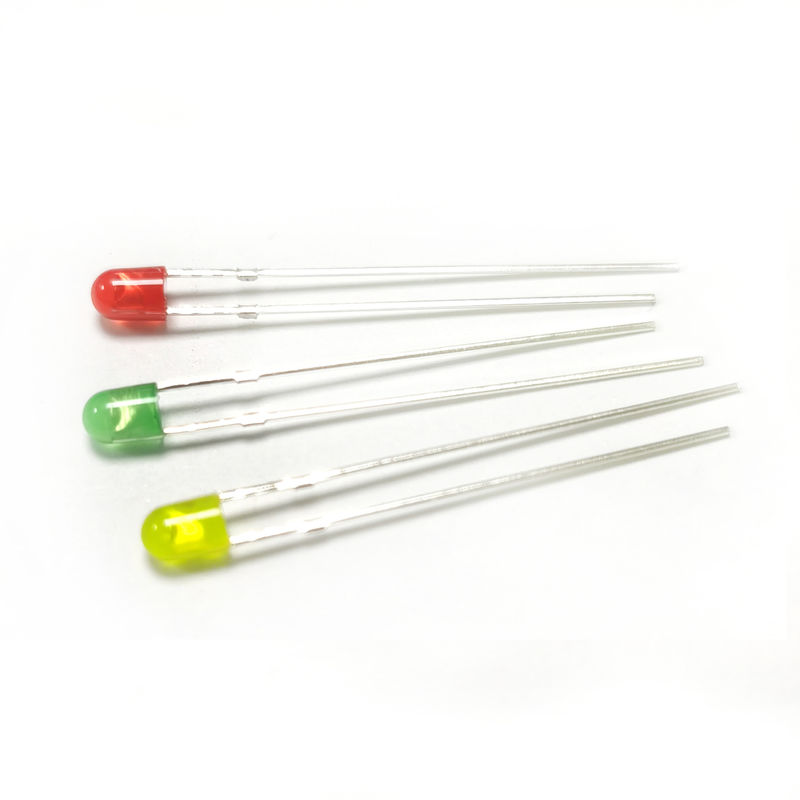

• The LED lamps are available with different colors, intensities.
• Superior performance in outdoor environment.

Applications:

• Single or dual color graphic signs.
• Message boards.
• Variable message signs (VMS).
• Commercial outdoor advertising.

Absolute Maximum Ratings at Ta=25℃

Electrical Optical Characteristics at Ta=25℃

Notes:

• Luminous Intensity Measurement allowance is ± 10%.
• θ_1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
• The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
