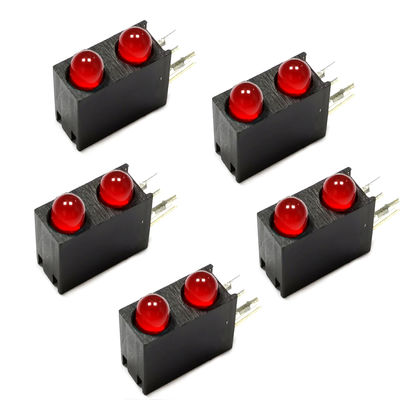

Two Red Round 3.0 mm Indicator LED , Indicator Housing Power Led Diode

Name: Two Red Round 3.0 mm Indicator LED , Indicator Housing Power Led Diode
Brand: Double Light
SKU: DL-H30D-2RD
Price: 0.1 USD
Availability: InStock
Rating: 4.9 (128 reviews)

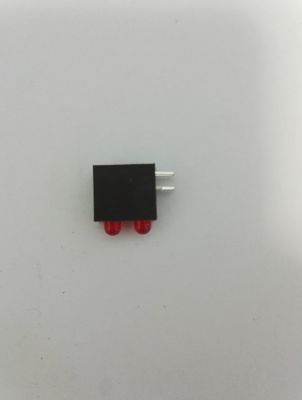

Large Image : Two Red Round 3.0 mm Indicator LED , Indicator Housing Power Led Diode

Product Details:

Place of Origin:	China
Brand Name:	Double Light
Certification:	ISO9001:2008,Rosh
Model Number:	DL-H30D-2RD

Payment & Shipping Terms:

Minimum Order Quantity:	5000 PCS
Price:	USD 0.1-0.18/PCS
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	5-7 working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	15,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:	Two Round 3.0 Mm Red Indicator Housing LED	Emitted Color:	Red
Chip Material:	GaAsP/GaP	Lens Type:	Red Diffused
Peak Emission Wavelength:	620-632nm	Forward Voltage @20ma:	1.6-2.8V
Viewing Angle:	60 Deg	Luminous Intensity:	5-32mcd
High Light:	high power light emitting diode , green light emitting diode

DL-H30D-1YGUYD.pdf

Two Red Round 3.0mm Indicator LED , Indicator Housing Power Led Diode

This is Our Two Round 3.0mm Red Indicator Housing LED.

RED LED Light Components

Features

Standard T-1 3/4 diameter package
Wide viewing angle
General purpose leads
Reliable and rugged

Part NO.	Chip Material	Lens Color	Source Color
DL-H30D-2RD	GaAsP/GaP	Red Diffused	Red

Notes:

All dimensions are in millimeters (inches).
Tolerance is ±0.25(.010”)mm unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice

Absolute Maximum Ratings at Ta=25℃

Parameter	MAX.	Unit
Power Dissipation	100	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	100	mA
Continuous Forward Current	50	mA
Derating Linear From 50℃	0.4	mA/℃
Reverse Voltage	5	V
Operating Temperature Range	-40℃ to +80℃
Storage Temperature Range	-40℃ to +80℃
Lead Soldering Temperature [4mm(.157”) From Body]	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	Iv	5	---	32	mcd	I_F=20mA (Note 1)
Viewing Angle	2θ_1/2	---	60	---	Deg	(Note 2)
Peak Emission Wavelength	λp	---	630	---	nm	I_F=20mA
Dominant Wavelength	λd	---	631	---	nm	I_F=20mA (Note 3)
Spectral Line Half-Width	△λ	---	42	---	nm	I_F=20mA
Forward Voltage	V_F	---	2.0	2.8	V	I_F=20mA
Reverse Current	I_R	---	---	100	µA	V_R=5V

Note:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
θ_1/2is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)

Two Red Round 3.0 mm Indicator LED , Indicator Housing Power Led Diode 2
