30 Deg DIP 3mm Round LED Indicator 660nm Red Light Emitting Diode

30 Deg DIP 3mm Round LED Indicator 660nm Red Light Emitting Diode

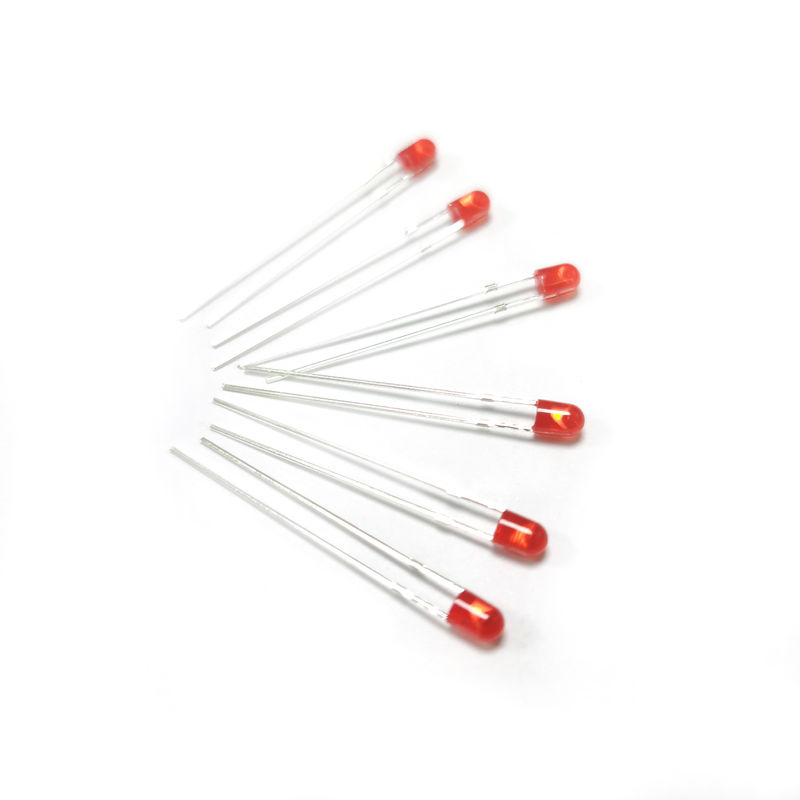

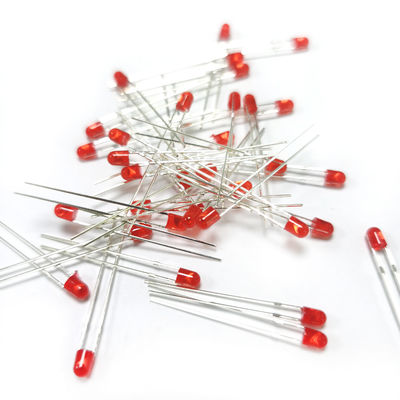

30 Deg DIP 3mm Round LED Indicator 660nm Red Light Emitting Diode 30 Deg DIP 3mm Round LED Indicator 660nm Red Light Emitting Diode

Large Image :  30 Deg DIP 3mm Round LED Indicator 660nm Red Light Emitting Diode

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-304SRDU-06W
Payment & Shipping Terms:
Minimum Order Quantity: 10,000pcs
Price: US$ 0.012-0.018 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: LED Indicators Package: DIP 3mm
Emitted Color: Super Red Peak Emission Wavelength: 660nm
Chip Material: GaAlAs Lens Type: Red Diffused
Forward Voltage @20ma: 1.8-2.4v Viewing Angle: 30 Deg
Highlight:

DIP 3mm Round LED Indicator

,

30 Deg Round LED Indicator

,

660nm Red Light Emitting Diode

3mm Round Indicator LED Without Flange Type  red light emitting diode



  1. Features:
  1. Popular T-1 diameter package.
  2. High efficiency.
  3. Selected minimum intensities.
  4. Available on tape and reel.
  5. Reliable and robust.
  6. The product itself will remain within RoHS compliant Version.



  1. Descriptions:
  1. The series is specially designed for applications requiring higher brightness.
  2. The LED lamps are available with different colors, intensities.



  1. Applications:
  1. Status indicators.
  2. Commercial use.
  3. Advertising Signs.
  4. Back lighting.



Package Dimensio:



30 Deg DIP 3mm Round LED Indicator 660nm Red Light Emitting Diode 0

Part No. Chip Material Lens Color Source Color
DL-304SRDU-06W GaAlAs Red Diffused Super Red













  1. Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation PD 60 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃

Lead Soldering Temperature

[4mm (.157″) From Body]

 Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 100 200 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 60 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 660 --- nm IF=20mA
Dominant Wavelength λd --- 640 --- nm IF=20mA (Note 3)
Spectral Line Half-Width △λ --- 45 --- nm IF=20mA
Forward Voltage VF 1.80 2.20 2.60 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V




Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
  1. Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)

30 Deg DIP 3mm Round LED Indicator 660nm Red Light Emitting Diode 1

30 Deg DIP 3mm Round LED Indicator 660nm Red Light Emitting Diode 2
