Round High Power Light Emitting Diode High Brightness For Telephone / TV Set

DL-509SRGMA-C.pdf

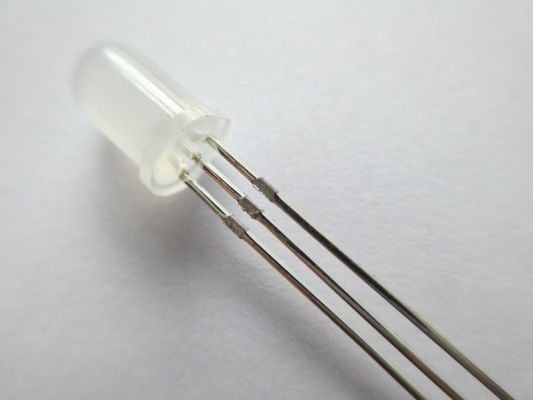

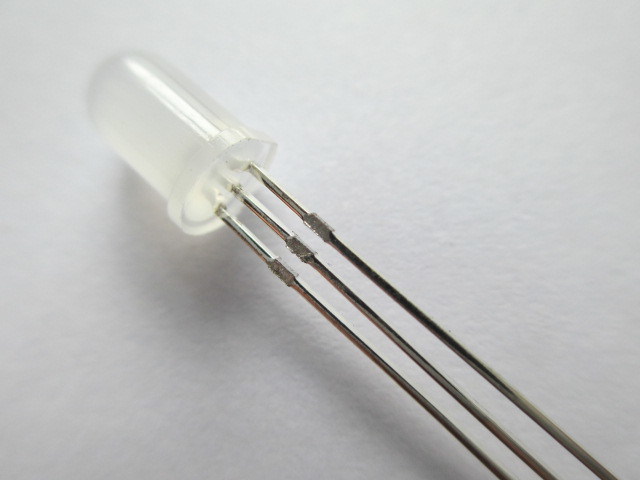

Bi-color 5mm round LED emitting diode with high brightness


Specifications:
Bi-color 5mm round LED emitting diode with high brightness
Low light decay,
long life time, energy saving
High quality with competitive price
Environmental friend




Product Description

Product Description:

energy saving lamp led diode chip 3mm/5mm/8mm/10mm
chip material InGaN/GaAsp
shape round led,oval led,straw hat led,helmet led,square led,flat top led,bullet led,concave led,rectange led
other colors red,green,yellow,blue,white,warm white,cool white,Bi-color,rgb ect
available angle 60,90,120,140,160,175 degree
available size 3mm,5mm,8mm,10mm
application adervitising signs, circuit board, computer,monitor, portable equipment, project building, status indicator, telephone, traffic signal lights and automotive, channel letter lighting
advantage of our company experience technical staff, professional led manufacture, prompt delivery, international approval, superior SED protection ect
advantage of our product top quality raw material, low power consumption, excellence performance ,good service, small order avaliable, big order offer for free shipping by express
chip Epistar,Cree,Bridgelux,Epiled,Huga,Genesis Photonics

Applications :
TV set
Monitor
Telephone
Computer

•
•
•
•
•
•
•
• Package Dimension:

Absolute Maximum Ratings at Ta=25℃

• Notes:

• All dimensions are in millimeters (inches).
• Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
• Protruded resin under flange is 1.00 mm (.04″) max.
• Specifications are subject to change without notice.

​

• Reliability Test Items And Conditions:

The reliability of products shall be satisfied with items listed below:

Confidence level: 90%. LTPD: 10%.

• Test Items and Results:

• Criteria For Judging The Damage:

• Please read the following notes before using the product:

• Over-current-proof

Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).

• Storage

1.1 Do not open moisture proof bag before the products are ready to use.

1.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

1.3 The LEDs should be used within a year.

1.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

1.5 The LEDs should be used within 168 hours (7 days) after opening the package.

• Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

• Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used. It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.

• Caution in ESD

Static Electricity and surge damages the LED. It is recommended to use a wrist band or anti-electrostatic glove when handling the LED. All devices equipment and machinery must be properly grounded.
