Product Name: | LED Light Components | Emitted Color: | Yellow Green |
---|---|---|---|
Chip Material: | AllnGaP | Lens Type: | Green Diffused |
Peak Emission Wavelength: | 660nm | Forward Voltage @20ma: | 2.0-2.4V |
Viewing Angle: | 30 Deg | Luminous Flux: | 50mcd |
High Light: | high power light emitting diode,green light emitting diode |

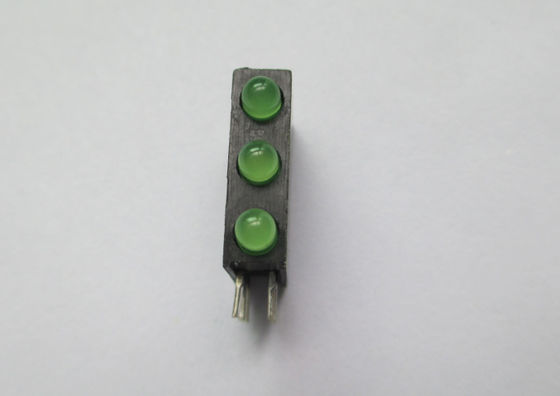

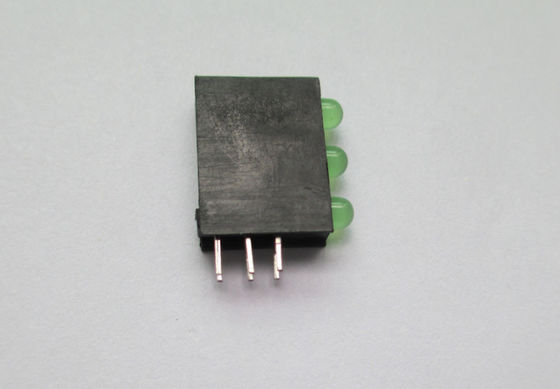

Double Light 3mm Right Angle Indicator led emitting diode with High Temperature resistant Housing
RED LED Light Components
Primary Competitive Advantages:
Green Product
Packaging
Product Features
Product Performance
Reputation
Features
◇ Low power consumption.
◇ High efficiency and low cost.
◇ Good control and free combinations on the colors of LED lamps.
◇ Good lock and easy to assembly.
◇ Stackable and easy to assembly.
◇ Stackable vertically and easy to assembly.
◇ Versatile mounting on P.C board or panel.
◇ Stackable horizontally and easy to assembly.
◇ The product itself will remain within RoHS compliant version.
◇ ARRAY=Plastic Holder + Combinations of Lamps.
◇ The array will easily mount be applicable on any panel up to.
◇ Used as indicators of indicating the Degree, Functions, Positions etc, in electronic instruments.
Absolute Maximum Ratings at Ta=25℃
Parameters | Symbol | Max. | Unit |
Power Dissipation | PD | 78 | mW |
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 100 | mA |
Forward Current | IF | 30 | mA |
Reverse Voltage | VR | 5 | V |
Operating Temperature Range | Topr | -40℃ to +80℃ | |
Storage Temperature Range | Tstg | -40℃ to +85℃ | |
Lead Soldering Temperature [4mm (.157″) From Body] |
Tsld | 260℃ for 5 Seconds |
Electrical Optical Characteristics at Ta=25℃
Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
Luminous Intensity (Note 1)* |
IV | 13 | 30 | --- | mcd | IF=20mA |
Viewing Angle* | 2θ1/2 | --- | 60 | --- | Deg | (Note 2) |
Peak Emission Wavelength | λp | --- | 640 | --- | nm | IF=20mA |
Dominant Wavelength | λd | --- | 630 | --- | nm | IF=20mA |
Spectrum Radiation Bandwidth | Δλ | --- | 45 | --- | nm | IF=20mA |
Forward Voltage | VF | 1.60 | 2.00 | 2.60 | V | IF=20mA |
Reverse Current | IR | --- | --- | 10 | µA | VR=5V |
Notes:
1. Luminous Intensity Measurement allowance is ± 10%.
2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device
