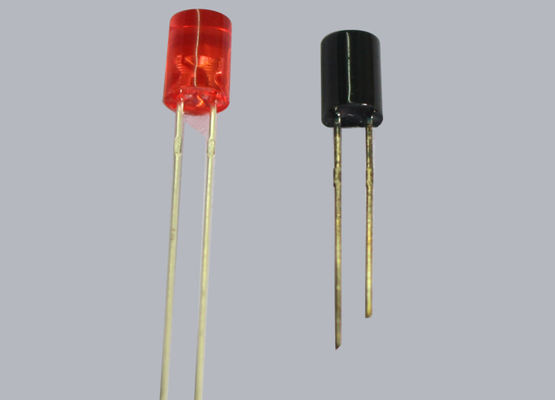

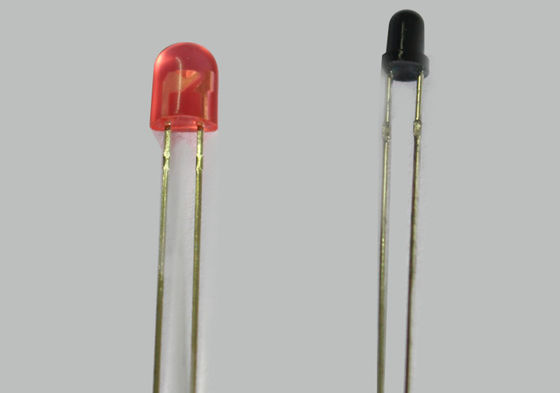

940nm Infrared Emitting Diode Tranmitter IR Module Infrared Phototransistor Ondition IC=100μA, Ee=0mW/cm²

940nm Infrared Emitting Diode Tranmitter IR Module Infrared Phototransistor Ondition IC=100μA, Ee=0mW/cm²

    • 940nm Infrared Emitting Diode Tranmitter IR Module Infrared Phototransistor Ondition IC=100μA, Ee=0mW/cm²
    • 940nm Infrared Emitting Diode Tranmitter IR Module Infrared Phototransistor Ondition IC=100μA, Ee=0mW/cm²
  • 940nm Infrared Emitting Diode Tranmitter IR Module Infrared Phototransistor Ondition IC=100μA, Ee=0mW/cm²

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: Double Light
    Certification: ISO9001:2008,ROHS
    Model Number: DL-503PTC

    Payment & Shipping Terms:

    Minimum Order Quantity: 10,000pcs
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: LED Phototransistor Diameter: Dip 5mm
    Emitted Color: Phototransistor Peak Emission Wavelength: 940nm
    Chip Material: Silicon Lens Type: Water Clear
    Forward Voltage @20ma: 1.1-1.4V Viewing Angle: 80 Deg

    940nm Infrared Emitting Diode Tranmitter IR Module Infrared Phototransistor Ondition IC=100μA, Ee=0mW/cm²



    5mm LED Phototransistor

    1. Features:
    1. 5mm round standard t-1 3/4 package.
    2. Fast response time.
    3. High photo sensitivity.
    4. Small junction capacitance.
    5. The product itself will remain within RoHS compliant Version.



    1. Descriptions:
    1. The 583PTD is a high speed and high sensitive silicon NPN phototransistor in a standard Φ5 package.
    2. Due to its black epoxy, the device is matched to visible light and infrared radiation.



    1. Applications:
    1. Infrared applied system.
    2. Optoelectronic automatic control system.
    3. Optoelectronic switch.
    4. Camera.
    5. Printer.
    6. Counters and sorters.
    7. Encoders.
    8. Floppy disk drive.
    9. Video camera, tape and card readers.
    10. Position sensors.





    1. Absolute Maximum Ratings at Ta=25℃

      Parameters Symbol Rating Unit
      Power Dissipation PD 75 mW
      Collector-Emitter Voltage VCEO 30 V
      Emitter-Collector-Voltage VECO 5 V
      Collector Current IC 20 mA
      Operating Temperature TOPR -40 to +85
      Storage Temperature TSTG -40 to +100
      Lead Soldering Temperature TSOL 260℃


      Electrical Optical Characteristics at Ta=25℃

      Parameters Symbol Min. Typ. Max. Unit Condition
      Collector-Emitter Breakdown Voltage BVCEO 30 --- --- V

      IC=100μA,

      Ee=0mW/cm²

      Emitter-Collector Breakdown Voltage BVECO 5 --- --- V

      IE=100μA,

      Ee=0mW/cm²

      Collector-Emitter Saturation Voltage VCE(SAT) --- --- 0.40 V

      IC=0.70mA,

      Ee=1mW/cm2

      Collector Dark Current ICEO --- --- 100 nA

      Ee=0mW/cm²,

      VCE=20V

      On-State Collector Current IC(ON) 0.70 2.00 --- mA

      Ee=1mW/cm²,

      VCE=5V

      Optical Rise Time (10% to 90%) TR --- 15 --- μs

      VCE=5V,

      IC=1mA,

      RL=100Ω

      Optical Fall Time (90% to 10%) TF --- 15 ---
      Reception Angle 1/2 --- 30 --- Deg
      Wavelength Of Peak Sensitivity λP --- 940 --- nm
      Rang Of Spectral Bandwidth λ0.5 400 --- 1100 nm




    Infrared Emitting Diode Package Dimension:
