Product Name: | Indicators LED | Package: | DIP 5mm |
---|---|---|---|
Emitted Color: | White And Warm White | Peak Emission Wavelength: | 2500-3500K 6000-7000K |
Model Number: | DL-504WC80A-2W30 | Forward Voltage @20ma: | 3.0-3.4v |
Viewing Angle: | 10-90 Deg | Display Brightness: | 25000-30000Mcd |
Forward Current: | 20mA | ||
High Light: | multi color led diode,green light emitting diode |

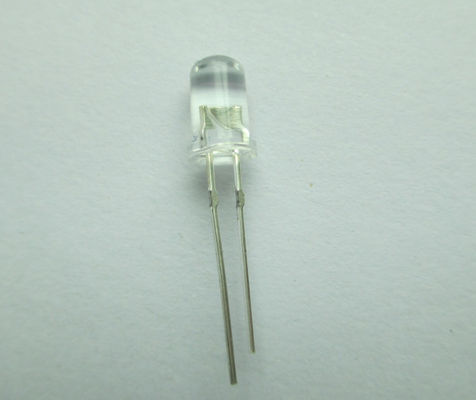

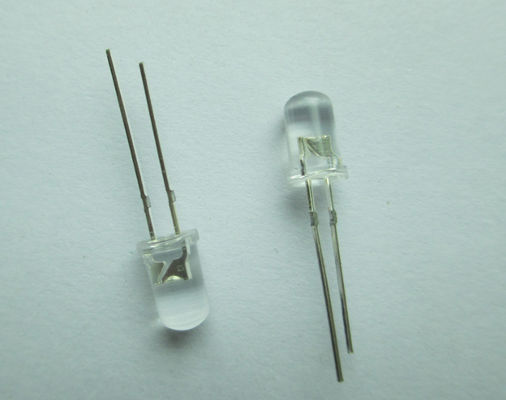

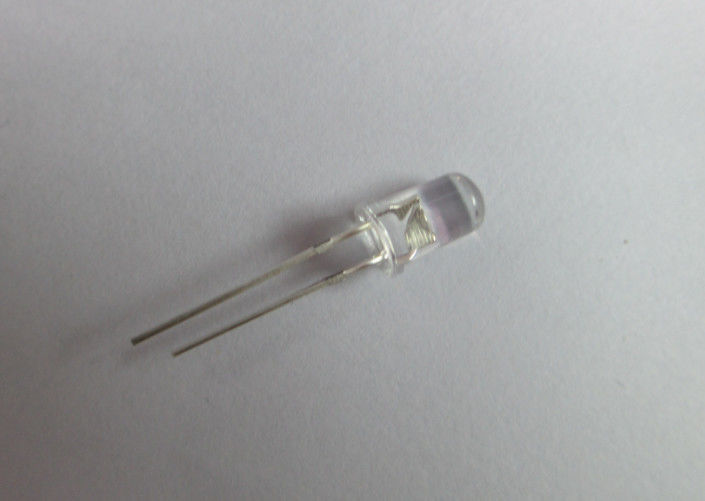

5mm Round Diffused Indicator LED Warm White light emitted diode
Part No. | Chip Material | Lens Color | Source Color |
DL-504WC80A-2W30 | GaAlAs | White | White |
Notes:
Parameters | Symbol | Max. | Unit |
Power Dissipation | PD | 95 | mW |
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 100 | mA |
Forward Current | IF | 25 | mA |
Reverse Voltage | VR | 5 | V |
Operating Temperature Range | Topr | -40℃ to +80℃ | |
Storage Temperature Range | Tstg | -40℃ to +85℃ | |
Lead Soldering Temperature [4mm (.157″) From Body] |
Tsld | 260℃ for 5 Seconds |
Notes:
Electrical Optical Characteristics at Ta=25℃
Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
Luminous Intensity | IV | 15000 | 20000 | --- | mcd | IF=20mA (Note 1) |
Viewing Angle | 2θ1/2 | --- | 30 | --- | Deg | IF=20mA (Note 2) |
Chromaticity Coordinates | x | --- | 0.30 | --- | IF=20mA (Note 3) | |
y | --- | 0.31 | --- | |||
Forward Voltage | VF | 3.00 | 3.30 | 4.00 | V | IF=20mA |
Reverse Current | IR | --- | --- | 10 | µA | VR=5V |
Notes:
(25℃ Ambient Temperature Unless Otherwise Noted)
The reliability of products shall be satisfied with items listed below:
Confidence level: 90%. LTPD: 10%.
1) Test Items and Results:
Test Item | Standard Test Method | Test Conditions | Note | Number of Damaged |
Resistance to Soldering Heat |
JEITA ED-4701 300 302 |
Tsld=260±5℃, 10sec 3mm from the base of the epoxy bulb | 1 time | 0/100 |
Solder ability |
JEITA ED-4701 300 303 |
Tsld=235±5℃, 5sec (using flux) |
1time over 95% |
0/100 |
Thermal Shock |
JEITA ED-4701 300 307 |
0℃~100℃ 15sec, 15sec | 100 cycles | 0/100 |
Temperature Cycle |
JEITA ED-4701 100 105 |
-40℃~25℃~100℃~25℃ 30min,5min,30min,5min | 100 cycles | 0/100 |
Moisture Resistance Cycle |
JEITA ED-4701 200 203 |
25℃~65℃~-10℃ 90%RH 24hrs/1cycle | 10 cycles | 0/100 |
High Temperature Storage |
JEITA ED-4701 200 201 |
Ta=100℃ | 1000hrs | 0/100 |
Terminal Strength (Pull test) |
JEITA ED-4701 400 401 |
Load 10N (1kgf) 10±1sec |
No noticeable damage | 0/100 |
Terminal Strength (bending test) |
JEITA ED-4701 400 401 |
Load 5N (0.5kgf) 0°~90°~0° bend 2 times |
No noticeable damage | 0/100 |
Temperature Humidity Storage |
JEITA ED-4701 100 103 |
Ta=60℃, RH=90% | 1000hrs | 0/100 |
Low Temperature Storage |
JEITA ED-4701 200 202 |
Ta=-40℃ | 1000hrs | 0/100 |
Steady State Operating Life | Ta=25℃, IF=20mA | 1000hrs | 0/100 | |
Steady State Operating Life of High Humidity Heat | Ta=60℃, RH=90%, IF=20mA | 500hrs | 0/100 | |
Steady State Operating Life of Low Temperature | Ta=-30℃, IF=30mA | 1000hrs | 0/100 |
2) Criteria for Judging the Damage:
Item | Symbol | Test Conditions | Criteria for Judgment | |
Min | Max | |||
Forward Voltage | VF | IF=20mA | --- | F.V.*)×1.1 |
Reverse Current | IR | VR=5V | --- | F.V.*)×2.0 |
Luminous Intensity | IV | IF=20mA | F.V.*)×0.7 | --- |
*) F.V.: First Value.
1. Over-current-proof
Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.
2.3 The LEDs should be used within a year.
2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.
2.5 The LEDs should be used within 168 hours (7 days) after opening the package.
3. Soldering Condition
3.1 Pb-free solder temperature profile
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
4. Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.
5. Repairing
Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used. It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
6. Caution in ESD
Static Electricity and surge damages the LED. It is recommended to use a wrist band or anti-electrostatic glove when handling the LED. All devices equipment and machinery must be properly grounded.
