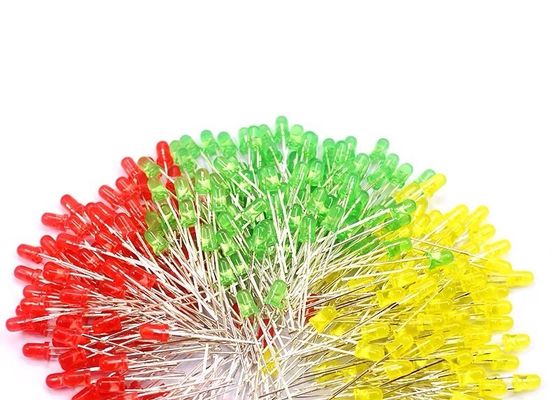

570 - 575nm light Indicator LED diffused green light emitting diode

570 - 575nm light Indicator LED diffused green light emitting diode

    • 570 - 575nm light Indicator LED diffused green light emitting diode
    • 570 - 575nm light Indicator LED diffused green light emitting diode
    • 570 - 575nm light Indicator LED diffused green light emitting diode
    • 570 - 575nm light Indicator LED diffused green light emitting diode
  • 570 - 575nm light Indicator LED diffused green light emitting diode

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-304YGDA-1YG60

    Payment & Shipping Terms:

    Minimum Order Quantity: 10,000pcs
    Price: US$ 0.01 per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: Indicators LED Package: 3mm DIP
    Emitted Color: Yellow Green Peak Emission Wavelength: 570-575nm
    Model Number: DL-304YGDA-1YG60 Body Color: Water Clear
    Forward Voltage @20ma: 1.9-2.1/2.8-3.0v Forward Current: 20mA
    Package Dimensions: 2.08*3.8mm

    ​ 570 - 575nm light Indicator LED diffused green light emitting diode

    • Features:
    • Popular T-1 diameter package.
    • High efficiency.
    • Selected minimum intensities.
    • Available on tape and reel.
    • Reliable and robust.
    • The product itself will remain within RoHS compliant Version.



    • Descriptions:
    • The series is specially designed for applications requiring higher brightness.
    • The LED lamps are available with different colors, intensities.



    • Applications:
    • Status indicators.
    • Commercial use.
    • Advertising Signs.
    • Back lighting.



    Part No. Chip Material Lens Color Source Color
    DL-304YGDA-1YG60 GaAlAs YG Yellow Green











    • Package Dimension:

      570 - 575nm light Indicator LED diffused green light emitting diode

      Notes:

    • All dimensions are in millimeters (inches).
    • Tolerance is ± 0.25mm (.010″) unless otherwise noted.
    • Protruded resin under flange is 1.00mm (.039″) max.
    • Specifications are subject to change without notice.
    • Absolute Maximum Ratings at Ta=25
    • Parameters Symbol Max. Unit
      Power Dissipation PD 60 mW

      Peak Forward Current

      (1/10 Duty Cycle, 0.1ms Pulse Width)

      IFP 100 mA
      Forward Current IF 25 mA
      Reverse Voltage VR 5 V
      Operating Temperature Range Topr -40℃ to +85℃
      Storage Temperature Range Tstg -40℃ to +100℃

      Lead Soldering Temperature

      [4mm (.157″) From Body]

      Tsld 260℃ for 5 Seconds

      Electrical Optical Characteristics at Ta=25

      Parameters Symbol Min. Typ. Max. Unit Test Condition
      Luminous Intensity * IV 30 50 --- mcd IF=20mA (Note 1)
      Viewing Angle * 1/2 --- 60 --- Deg IF=20mA (Note 2)
      Peak Emission Wavelength λp --- 570 --- nm IF=20mA
      Dominant Wavelength λd --- 572 --- nm IF=20mA (Note 3)
      Spectral Line Half-Width △λ --- 25 --- nm IF=20mA
      Forward Voltage VF 1.80 2.20 2.80 V IF=20mA
      Reverse Current IR --- --- 10 µA VR=5V

      Notes:

    • Luminous Intensity Measurement allowance is ± 10%.
    • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
    •

    • Typical Electrical / Optical Characteristics Curves
    • (25℃ Ambient Temperature Unless Otherwise Noted)570 - 575nm light Indicator LED diffused green light emitting diode

      Confidence level: 90%. LTPD: 10%.

      1) Test Items and Results:

      Test Item Standard Test Method Test Conditions Note Number of Damaged
      Resistance to Soldering Heat

      JEITA ED-4701

      300 302

      Tsld=260±5℃, 10sec 3mm from the base of the epoxy bulb 1 time 0/100
      Solder ability

      JEITA ED-4701

      300 303

      Tsld=235±5℃, 5sec(using flux)

      1time

      over 95%

      0/100
      Thermal Shock

      JEITA ED-4701

      300 307

      0℃~100℃ 15sec, 15sec 100 cycles 0/100
      Temperature Cycle

      JEITA ED-4701

      100 105

      -40℃~25℃~100℃~25℃ 30min,5min,30min,5min 100 cycles 0/100
      Moisture Resistance Cycle

      JEITA ED-4701

      200 203

      25℃~65℃~-10℃ 90%RH 24hrs/1cycle 10 cycles 0/100
      High Temperature Storage

      JEITA ED-4701

      200 201

      Ta=100℃ 1000hrs 0/100

      Terminal Strength

      (Pull test)

      JEITA ED-4701

      400 401

      Load 10N (1kgf)

      10±1sec

      No noticeable damage 0/100
      Terminal Strength (bending test)

      JEITA ED-4701

      400 401

      Load 5N (0.5kgf)

      0°~90°~0° bend 2 times

      No noticeable damage 0/100
      Temperature Humidity Storage

      JEITA ED-4701

      100 103

      Ta=60℃, RH=90% 1000hrs 0/100
      Low Temperature Storage

      JEITA ED-4701

      200 202

      Ta=-40℃ 1000hrs 0/100
      Steady State Operating Life   Ta=25℃, IF=30mA 1000hrs 0/100
      Steady State Operating Life of High Humidity Heat   Ta=60℃, RH=90%, IF=30mA 500hrs 0/100
      Steady State Operating Life of Low Temperature   Ta=-30℃, IF=20mA 1000hrs 0/100

      2) Criteria for Judging the Damage:

      Item

      Symbol Test Conditions Criteria for Judgment
      Min Max
      Forward Voltage VF IF=20mA --- F.V.*)×1.1
      Reverse Current IR VR=5V --- F.V.*)×2.0
      Luminous Intensity IV IF=20mA F.V.*)×0.7
    • Please read the following notes before using the product:
    • 1.

      Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).

    • Storage
    • 2.1 Do not open moisture proof bag before the products are ready to use.

      2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

      2.3 The LEDs should be used within a year.

      2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

      2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

    • Soldering Iron
    • Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

    • Repairing
    • Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.

      Over-current-proof
