Elliptical 632nm 25mA 1000-1800mcd Led Emitting Diode

Name: Elliptical 632nm 25mA 1000-1800mcd Led Emitting Diode
Brand: Double Light
SKU: DL-544SRCA-4SR60
Rating: 5 (164 reviews)

Large Image : Elliptical 632nm 25mA 1000-1800mcd Led Emitting Diode

Product Details:

Place of Origin:	China (mainland)
Brand Name:	Double Light
Certification:	ISO9001:2008/ROHS
Model Number:	DL-544SRCA-4SR60

Payment & Shipping Terms:

Minimum Order Quantity:	10000pcs
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	15-20 working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	15,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:	5.20×3.80mm Oval Led	Emitted Color:	Hyper Red
Peak Emission Wavelength:	632nm	Dominant Wavelength:	624nm
Lens Type:	White Diffused Or Water Clear	Viewing Angle:	X:60Deg Y:40Deg
Forward Current:	25mA	Forward Voltage @20ma:	1.6-2.6V
High Light:	1800mcd Led Emitting Diode , 632nm Led Emitting Diode , 25mA Multi Color Led Diode

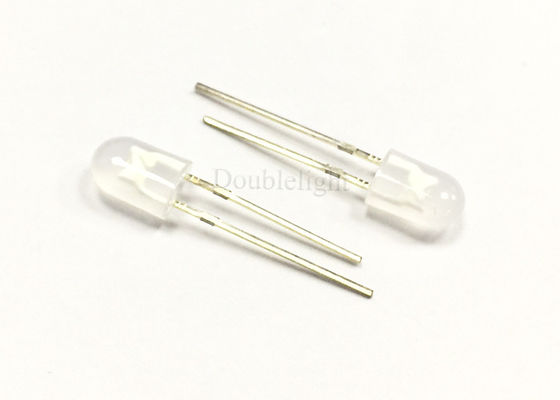

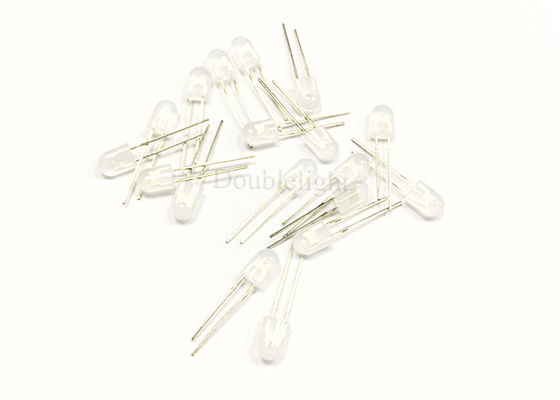

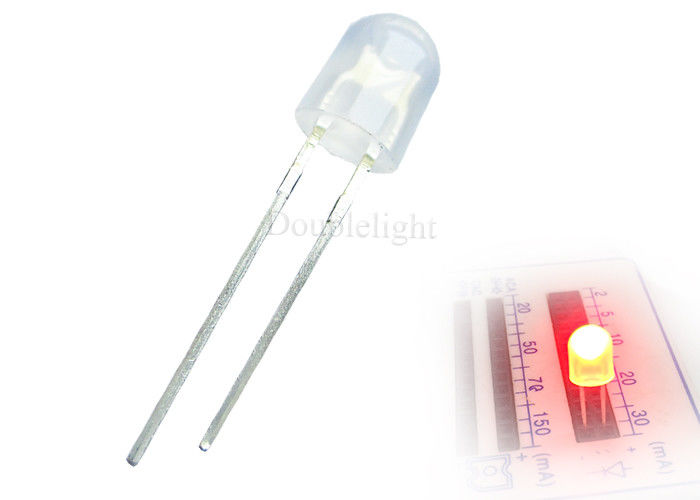

Elliptical 632nm Hyper Red LED 1000-1800mcd Oval led emitting diode for panel mount led indicator lights

Led dash indicator lights features:

Oval shape.
High luminous intensity output.
Well defined spatial radiation.
Wide viewing angle (2θ_1/2): 60^o/40^o.
Reliable and robust.
The product itself will remain within RoHS complaint Version.

Multi color led diode descriptions:

This precision optical performance oval LED is specially designed for passenger information signs.
The LED lamps are available with different colors, intensities.
Superior performance in outdoor environment.

Industrial indicator lights applications:

Single or dual color graphic signs.
Message boards.
Variable message signs (VMS).
Commercial outdoor advertising.

Package Dimension:

Part No.	Chip Material	Lens Color	Source Color
DL-544SRCA-4SR60	AlGaInP	Water Clear	Hyper Red

Notes:

All dimensions are in millimeters (inches).
Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
Protruded resin under flange is 1.00 mm (.039″) max.
Specifications are subject to change without notice.

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	75	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
Forward Current	IF	25	mA
Reverse Voltage	VR	5	V
Electrostatic Discharge (HBM)	ESD	2000	V
Operating Temperature Range	Topr	-40℃ to +85℃
Storage Temperature Range	Tstg	-40℃ to +100℃
Lead Soldering Temperature [4mm (.157″) From Body]	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol		Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity *	IV		1000	1500	---	mcd	IF=20mA (Note 1)
Viewing Angle *	2θ_1/2	x	---	60	---	Deg	IF=20mA (Note 2)
Viewing Angle *	2θ_1/2	y	---	40	---	Deg	IF=20mA (Note 2)
Peak Emission Wavelength	λp		---	632	---	nm	IF=20mA
Dominant Wavelength	λd		---	624	---	nm	IF=20mA (Note 3)
Spectral Line Half-Width	△λ		---	20	---	nm	IF=20mA
Forward Voltage	VF		1.60	2.20	2.60	V	IF=20mA
Reverse Current	IR		---	---	10	µA	V_R=5V

Notes:

Luminous Intensity Measurement allowance is ± 10%.
θ_1/2is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
