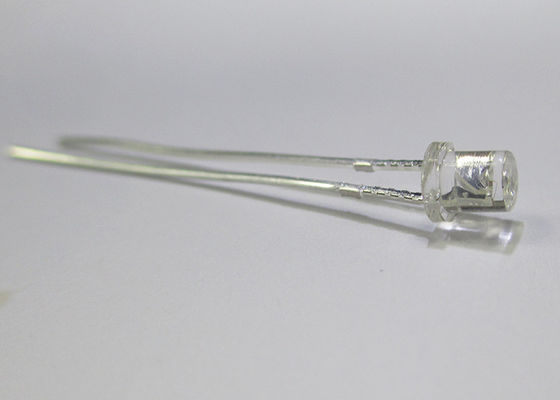

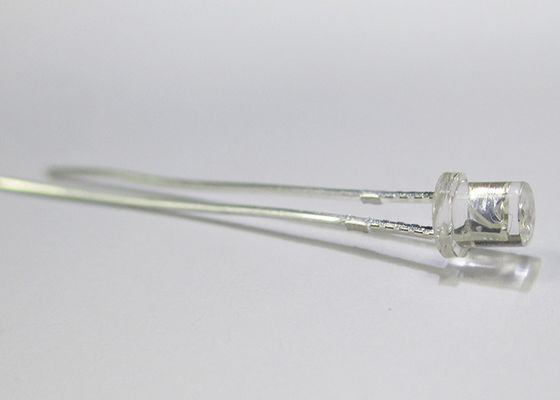

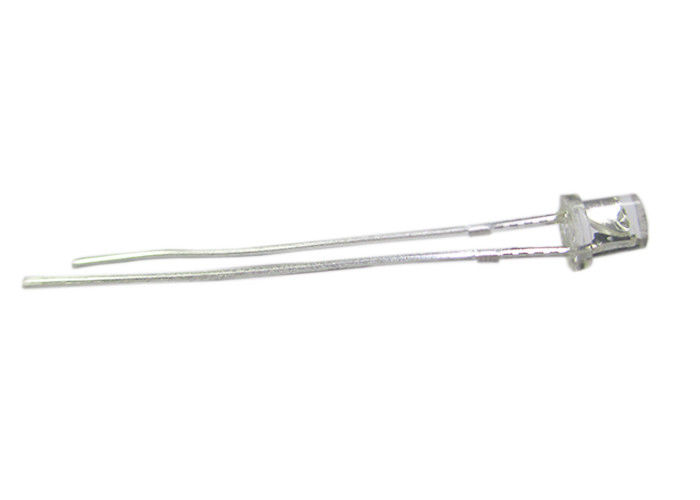

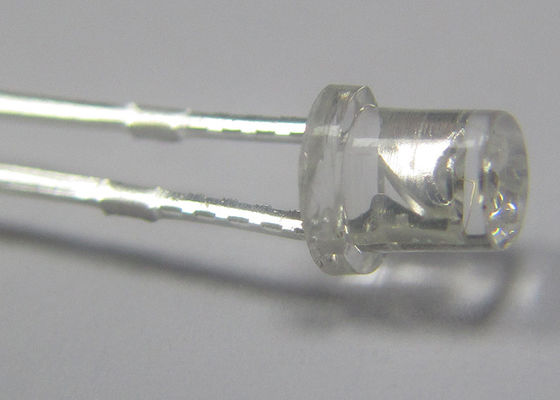

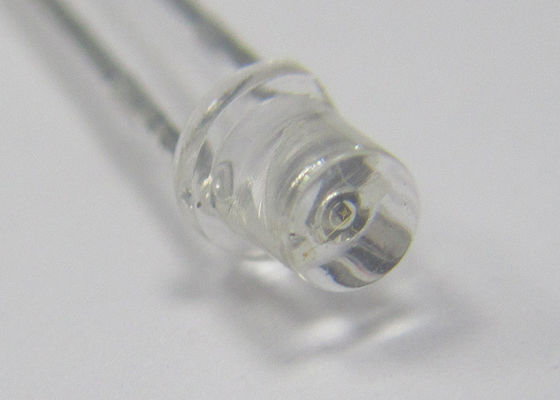

5mm Cylindrical Infrared Emitting Diode With Flange Silicon NPN Phototransistor Infrared Transceiver

Large Image : 5mm Cylindrical Infrared Emitting Diode With Flange Silicon NPN Phototransistor Infrared Transceiver

Product Details:

Place of Origin:	China
Brand Name:	Double Light
Certification:	ROHS/ REACH
Model Number:	DL-503PTE-1PT

Payment & Shipping Terms:

Minimum Order Quantity:	5,000pcs/Real
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	10-15working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	2,000,000pcs per day

Contact Now

Detailed Product Description

Product Name:	5mm Cylindrical With Flange Phototransistor	Package:	DIP 5mm Round Standard T-1 3/4 Diameter
Chip Material:	Silicon	Lens Type:	Water Clear
Source Color:	Phototransistor	Wavelength Of Peak Sensitivity:	940nm
Shape:	Cylindrical With Flange	Reception Angle:	100 Degree
Power:	75mA	Collector-Emitter Voltage:	30V
Collector Current:	20mA	Rang Of Spectral Bandwidth:	700-1200nm
Highlight:	ir emitting diode , 940nm infrared led

5mm Cylindrical With Flange silicon NPN Phototransistor infrared transceiver 940nm infrared led in Optoelectronic switch

Features:

Fast response time.
High photo sensitivity.
Small junction capacitance.
The product itself will remain within RoHS compliant Version.

Descriptions:

The 503PT is a high speed and high sensitive silicon NPN phototransistor in a standard Φ5 package.
Due to its black epoxy, the device is matched to visible light and infrared radiation.

Applications:

Infrared applied system.
Optoelectronic automatic control system.
Optoelectronic switch.
Camera.
Printer.
Counters and sorters.
Encoders.
Floppy disk drive.
Video camera, tape and card readers.
Position sensors.

Package Dimension:
5mm Cylindrical Infrared Emitting Diode With Flange Silicon NPN Phototransistor Infrared Transceiver 0

Part No.	Chip Material	Lens Color	Source Color
DL-503PTE-1PT	Silicon	Water Clear	Phototransistor

Notes:

All dimensions are in millimeters (inches).
Tolerance is ± 0.25 mm (.010″) unless otherwise specified
Protruded resin under flange is 1.00 mm (.039″) max.
Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Rating	Unit
Power Dissipation	P_D	75	mW
Collector-Emitter Voltage	V_CEO	30	V
Emitter-Collector-Voltage	V_ECO	5	V
Collector Current	I_C	20	mA
Operating Temperature	T_OPR	-40 to +85	℃
Storage Temperature	T_STG	-40 to +100	℃
Lead Soldering Temperature	T_SOL	260℃	℃

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Condition
Collector-Emitter Breakdown Voltage	BV_CEO	30	---	---	V	I_C=100μA, Ee=0mW/cm²
Emitter-Collector Breakdown Voltage	BV_ECO	5	---	---	V	I_E=100μA, Ee=0mW/cm²
Collector-Emitter Saturation Voltage	V_CE(SAT)	---	---	0.40	V	I_C=0.70mA, Ee=1mW/cm²
Collector Dark Current	I_CEO	---	---	100	nA	Ee=0mW/cm², V_CE=20V
On-State Collector Current	I_C(ON)	0.70	2.00	---	mA	Ee=1mW/cm², V_CE=5V
Optical Rise Time (10% to 90%)	T_R	---	15	---	μs	V_CE=5V, I_C=1mA, R_L=1000Ω
Optical Fall Time (90% to 10%)	T_F	---	15	---	μs	V_CE=5V, I_C=1mA, R_L=1000Ω
Reception Angle	2θ_1/2	---	100	---	Deg
Wavelength Of Peak Sensitivity	λP	---	940	---	nm
Rang Of Spectral Bandwidth	λ0.5	700	---	1200	nm

Typical Electrical / Optical Characteristics Curves
