12-16V 850nm Infrared Emitting Diode 10W High Power COB IR Led 20*20mm Fully Dimmable

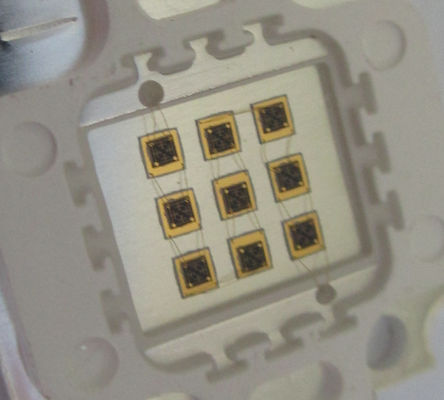

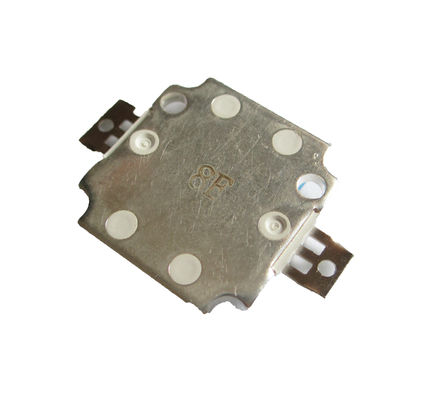

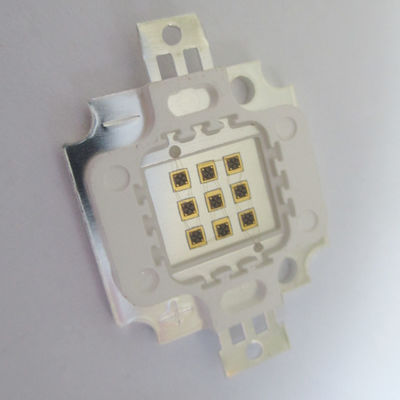

Large Image : 12-16V 850nm Infrared Emitting Diode 10W High Power COB IR Led 20*20mm Fully Dimmable

Product Details:

Place of Origin:	China (mainland)
Brand Name:	DOUBLE LIGHT
Certification:	ISO9001:2008/ROHS
Model Number:	DL-COB2020SIRC-10W

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	Negotiated
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	5-7 working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	15,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:	10W High Power Infrared LED COB LED	Emitted Color:	850nm IR Led
Model Number:	DL-COB2020SIRC-10W	Forward Current:	350mA
Forward Voltage @60ma:	12.6-16.2V	Radiant Intensity:	860-1600mW/sr
Viewing Angle:	120 Deg	Power Dissipation:	10W
Size:	20*20mm
Highlight:	light emitting diode led , 940nm infrared led

10W high power COB IR led with 12-16V 850nm Infrared emitting diode

Features

Long operating life
Highest flux
More energy efficient than incandescent and most halogen lamps
Low voltage DC operated
Instant light (less than 100ns)
Fully dimmable
No UV
Superior ESD protection
RoHS compliant

Applications

Commercial lighting
Advertisement
Architectural lighting
Street lamps

Package Dimension:

12-16V 850nm Infrared Emitting Diode 10W High Power COB IR Led 20*20mm Fully Dimmable 0

Opto-Electronical Specification

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Radiant Intensity (Note 1) *	Ee	860	1600	---	mW/sr	IF=350mA
Viewing Angle (Note 2) *	2θ1/2	---	120	---	Deg	IF=350mA
Peak Emission Wavelength	λp	---	850	---	nm	IF=350mA
Spectral Bandwidth	△λ	---	50	---	nm	IF=350mA
Forward Voltage	VF	12.6	---	16.2	V	IF=350mA
Reverse Current	IR	---	---	10	µA	V_R=45V

Buy Led components, choose long history manufacturer---DOUBLE LIGHT

12-16V 850nm Infrared Emitting Diode 10W High Power COB IR Led 20*20mm Fully Dimmable 1

our various shipping to meet all kinds of customers requirement

12-16V 850nm Infrared Emitting Diode 10W High Power COB IR Led 20*20mm Fully Dimmable 2

our cetifications to guarantee each items's quality

12-16V 850nm Infrared Emitting Diode 10W High Power COB IR Led 20*20mm Fully Dimmable 3

choose DOUBLE LIGHT, your expert LED components nearby!
