Product Name: | Square Rectangular Indicator LED | Power (mW): | 95 |
---|---|---|---|
Emitted Color: | Blue | Lens Color: | Blue Diffused |
Peak Emission Wavelength: | 468nm | Forward Voltage @20ma: | 2.8-3.3 |
Viewing Angle: | 70 Deg | Luminous Intensitysity: | 350-550mcd |
Highlight: | high power light emitting diode,multi color led diode |

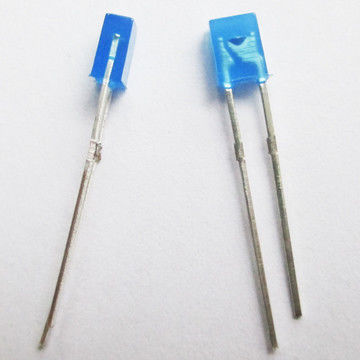

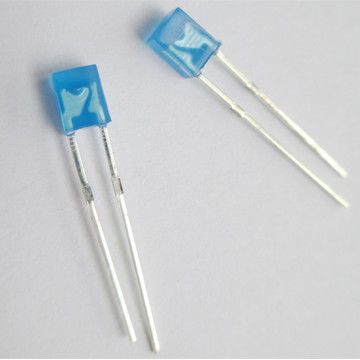

2*3*4mm Square LED long pin short pin blue rectangular LED indicator led diode
Part No. | Chip Material | Lens Color | Source Color |
DL-234BD-1B70 | InGaN | Blue Diffused | Blue |
Absolute Maximum Ratings at Ta=25℃
Parameters | Symbol | Max. | Unit |
Power Dissipation | PD | 95 | mW |
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 100 | mA |
Forward Current | IF | 25 | mA |
Reverse Voltage | VR | 5 | V |
Electrostatic Discharge (HBM) | ESD | 1000 | V |
Operating Temperature Range | Topr | -40℃ to +85℃ | |
Storage Temperature Range | Tstg | -40℃ to +100℃ | |
Lead Soldering Temperature [4mm (.157″) From Body] |
Tsld | 260℃ for 5 Seconds |
Electrical Optical Characteristics at Ta=25℃
Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
Luminous Intensity * | IV | 350 | 550 | --- | mcd | IF=20mA (Note 1) |
Viewing Angle * | 2θ1/2 | --- | 70 | --- | Deg | IF=20mA (Note 2) |
Peak Emission Wavelength | λp | --- | 468 | --- | nm | IF=20mA |
Dominant Wavelength | λd | --- | 470 | --- | nm | IF=20mA (Note 3) |
Spectral Line Half-Width | △λ | --- | 25 | --- | nm | IF=20mA |
Forward Voltage | VF | 2.8 | 3.3 | --- | V | IF=20mA |
Reverse Current | IR | --- | --- | 10 | µA | VR=5V |
