880nm infrared light emitting diode 3mm Round lamp led for infrared receiver diode with rohs complaint

Name: 880nm infrared light emitting diode 3mm Round lamp led for infrared receiver diode with rohs complaint
Brand: Double Light
SKU: DL-304HIRCA-1SIR25
Price: 0.02 USD
Availability: InStock
Rating: 4.5 (105 reviews)

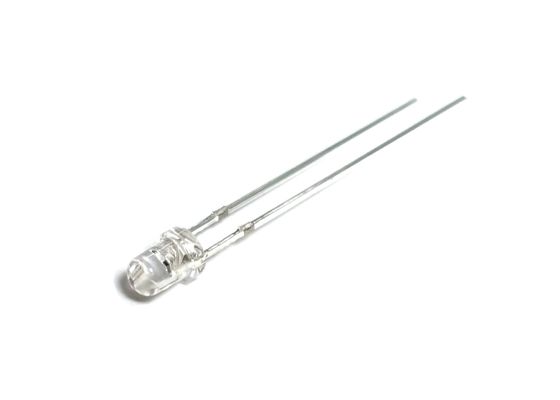

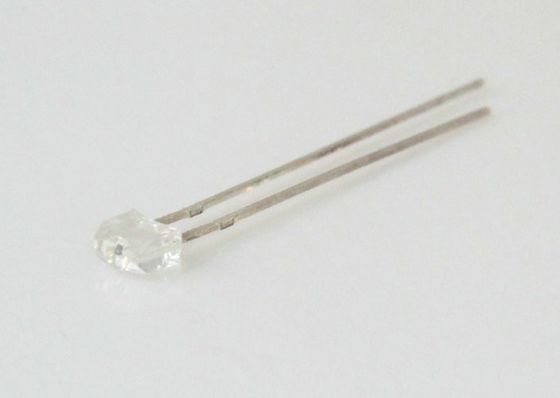

Large Image : 880nm infrared light emitting diode 3mm Round lamp led for infrared receiver diode with rohs complaint

Product Details:

Place of Origin:	China
Brand Name:	Double Light
Certification:	ROHS/ REACH
Model Number:	DL-304HIRCA-1SIR25

Payment & Shipping Terms:

Minimum Order Quantity:	1,000pcs/Real
Price:	US$ 0.02-0.05 per unit (Pieces) and negotiable
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	5-7 working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	2,000,000pcs per day

Contact Now

Detailed Product Description

Product Name:	880nm Infrared Light Emitting Diode	Package:	DIP 3mm Round In Standard T-1 Type
Emitted Color:	Infrared	Product Number:	DL-304HIRCA-1SIR25
Color Temperature:	880nm	Lens Type:	Water Clear
Forward Voltage @20ma:	1.20-2.0V	Viewing Angle:	25 Deg
High Light:	light emitting diode led , ir emitting diode

DL-304HIRCA-1SIR25.pdf

This is our 880nm infrared light emitting diode 3mm Round lamp led for infrared receiver diode with rohs complaint

Features:

Standard T-1 diameter package.
Low forward voltage.
Viewing angle=25°.
Reliable and rugged.
The product itself will remain within RoHS complaint Version.

Descriptions:

The device is spectrally matched with silicon photodiode and phototransistor.

Applications:

Floppy disk drive.
Optoelectronic switch.
Camera.
Free air transmission system.
Video.

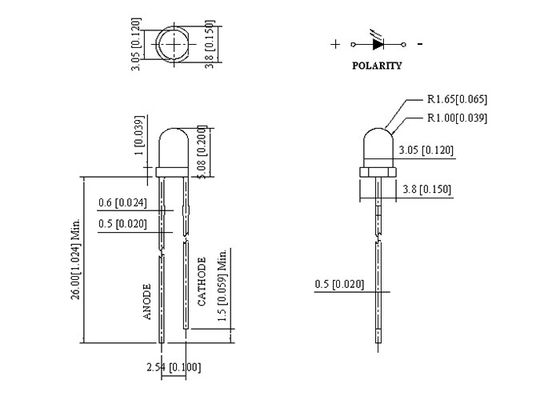

Package Dimension:
880nm infrared light emitting diode 3mm Round lamp led for infrared receiver diode with rohs complaint 0

Part No.	Chip Material	Lens Color	Source Color
DL-304HIRCA-1SIR25	GaAlAs	Water Clear	Infrared

Notes:

All dimensions are in millimeters (inches).
Tolerance is ± 0.25 mm (.010″) unless otherwise specified.
Protruded resin under flange is 1.00 mm (.039″) max.
Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	150	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	1.00	A
Forward Current	IF	100	mA
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Radiant Intensity (Note 1) *	Ee	11.0	15.0	---	mW/sr	IF=20mA
Radiant Intensity (Note 1) *	Ee	---	35.0	---	mW/sr	I_F=100mA, tp=100µs, tp/T=0.01
Viewing Angle (Note 2) *	2θ1/2	---	25	---	Deg	IF=20mA
Peak Emission Wavelength	λp	---	880	---	nm	IF=20mA (Note 3)
Spectral Bandwidth	△λ	---	45	---	nm	IF=20mA
Forward Voltage	VF	1.20	1.45	1.85	V	IF=20mA
Forward Voltage	VF	---	1.60	2.00	V	I_F=100mA, tp=100µs, tp/T=0.01
Reverse Current	IR	---	---	10	µA	V_R=5V

Notes:

Luminous (Radiant) Intensity Measurement allowance is ± 10%.
θ_1/2is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
The dominant wavelength (λp) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)

880nm infrared light emitting diode 3mm Round lamp led for infrared receiver diode with rohs complaint 1
