Product Name: | 1.9mm Height Top View 3528 Infrared Chip LED | Package: | Top View 3528 Infrared Chip LED |
---|---|---|---|
Emitted Color: | Infrared | Product Number: | DL-TOP3528SIRC-2SIR120 |
Color Temperature: | 850nm | Lens Type: | Water Clear |
Forward Voltage @20ma: | 1.00-1.50V | Viewing Angle: | 120 Deg |
Forward Current: | 50mA | ||
High Light: | ir emitting diode,940nm infrared led |

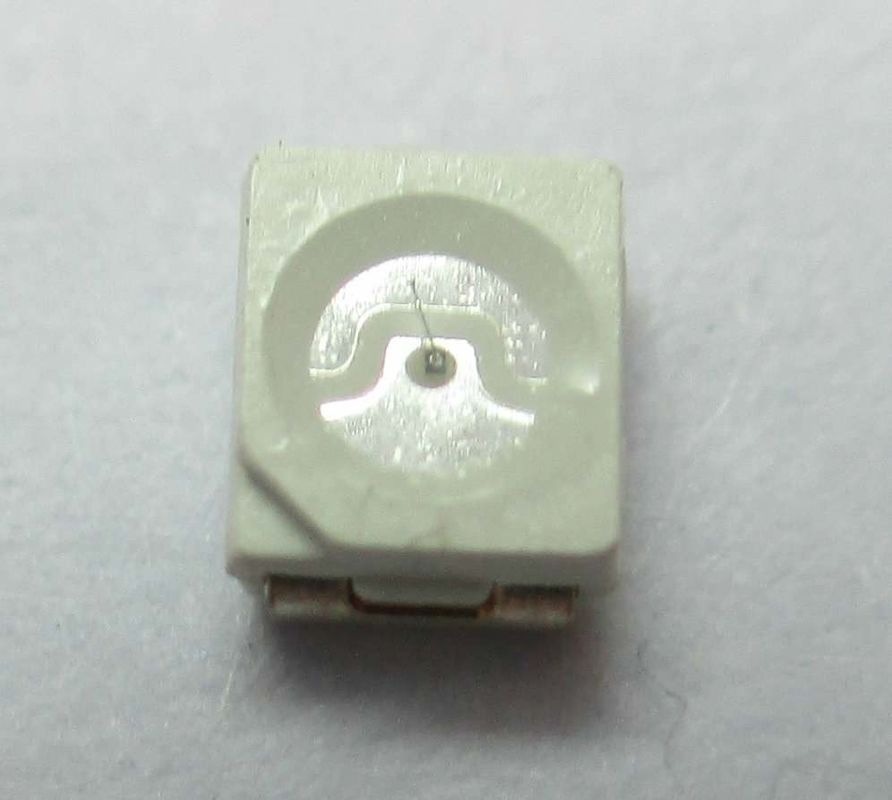

1.9mm Height Top View 3528 Infrared Emitting Diode , Infrared Chip LED 850nm
Features:
Descriptions:
Applications:
Package Dimension:
Part No. | Chip Material | Lens Color | Source Color |
DL-TOP3528SIRC-2SIR120 | GaAlAs/GaAs | Water Clear | Infrared |
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.10mm (.004") unless otherwise specified.
3. Specifications are subject to change without notice.
Absolute Maximum Ratings at Ta=25℃
Parameters | Symbol | Max | Unit |
Power Dissipation | PD | 90 | mW |
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 1000 | mA |
Continuous Forward Current | IF | 50 | mA |
Reverse Voltage | VR | 5 | V |
Operating Temperature Range | Topr | -40℃ to +80℃ | |
Storage Temperature Range | Tstg | -40℃ to +100℃ | |
Soldering Temperature | Tsld | 260℃ for 5 Seconds |
Electrical Optical Characteristics at Ta=25℃
Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
Radiant Intensity (Note 1) * | Ee | 8.0 | 15.0 | --- | mW/sr | IF=20mA |
Viewing Angle (Note 2) * | 2θ1/2 | --- | 120 | --- | Deg | IF=20mA |
Rise Time | Tr | --- | 20 | --- | nsec | IF=20mA |
Fall Time | Tf | --- | 30 | --- | nsec | IF=20mA |
Peak Emission Wavelength | λp | --- | 850 | --- | nm | IF=20mA |
Spectral Bandwidth | △λ | --- | 45 | --- | nm | IF=20mA |
Forward Voltage | VF | 1.00 | 1.30 | 1.50 | V | IF=20mA |
Reverse Current | IR | --- | --- | 10 | µA | VR=5V |
Notes:
1. Luminous Intensity Measurement allowance is ± 10%.
2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
Reliability Test Items And Conditions:
The reliability of products shall be satisfied with items listed below:
Confidence level: 90%.
LTPD: 10%.
No. | Item | Test Conditions |
Test Hours/ Cycles |
Sample Sizes |
Failure Judgment Criteria |
Ac/ Re |
1 | Reflow Soldering |
TEMP.: 260℃+5℃ 5secs |
6mins | 22pcs |
IR≧U×2 Ee≦L×0.8 VF≧U×1.2
U: Upper Specification Limit L: Lower Specification Limit |
0/1 |
2 | Temperature Cycle |
H: +100℃ 15mins ∫ 5 mins ∫ L: -40℃ 15mins |
50Cycles | 22pcs | 0/1 | |
3 | Thermal Shock |
H: +100℃ 15mins ∫ 10mins ∫ L: -10℃ 5mins |
50Cycles | 22pcs | 0/1 | |
4 |
High Temperature Storage |
TEMP.: +100℃ | 1000hrs | 22pcs | 0/1 | |
5 |
Lower Temperature Storage |
TEMP.: -40℃ | 1000hrs | 22pcs | 0/1 | |
6 | DC Operating Life | VCE=5V | 1000hrs | 22pcs | 0/1 | |
7 |
High Temperature/ High Humidity |
85℃ / 85% R.H | 1000hrs | 22pcs | 0/1 |
Reel Dimensions:
Carrier Tape Dimensions:
Loaded quantity 2000 PCS Per reel.
Please read the following notes before using the datasheets:
1. Over-current-proof
Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.
2.3 The LEDs should be used within a year.
2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.
2.5 The LEDs should be used within 168 hours (7 days) after opening the package.
2.6 If the moisture adsorbent material (silica gel) has fabled away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours.
3. Soldering Condition
3.1 Pb-free solder temperature profile.
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
4. Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.
5. Repairing
Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
6. Caution in ESD
Static Electricity and surge damages the LED. It is recommended to use a wrist band or anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be properly grounded.
