Product Name:	3mm Round With Flange Type Silicon PIN Photodiode	Package:	DIP 3mm Round Standard T-1
Emitted Color:	Photodiode Receiver	Product Number:	DL-304PDA-2PD
Rang Of Spectral Bandwidth:	840-1100nm	Lens Color:	Black
Power Dissipation:	150mW	Open-Circuit Voltage:	0.42v
Highlight:	light emitting diode led , ir emitting diode

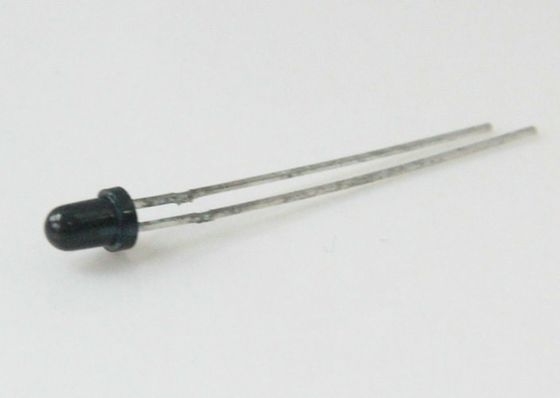

This is 3mm Round ir emitting diode Standard T -1 led with flange type silicon pin photodiode receiver

Part No.	Chip Material	Lens Color	Source Color
DL-304PDA-2PD	Silicon	Black	Photodiode Receiver

Notes:

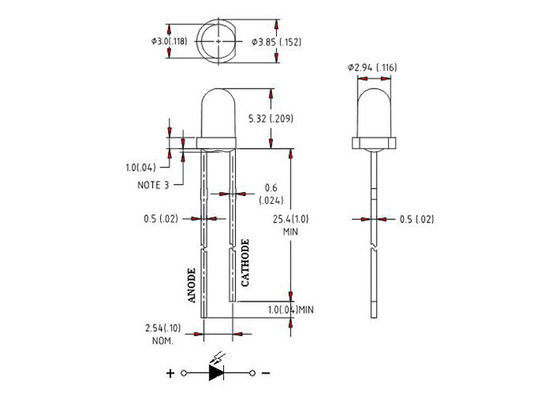

All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010") unless otherwise noted.
Protruded resin is 1.00mm (.039") max.
Specifications are subject to change without notice.

Features:

Fast response time.
High photo sensitivity.
Small junction capacitance.
The product itself will remain within RoHS compliant Version.

Descriptions:

The DL-304PDA is a high speed and high sensitive PIN photodiode in a standard φ3 epoxy package. Due to its water clear epoxy the device is sensitive to visible and infrared radiation.

Applications:

High speed photo detector.
Automatic door sensor.
Security system.
Game machine.
Camera.

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	150	mW
Reverse Voltage	VR	32	V
Operating Temperature Range	Topr	-25℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Lead Soldering Temperature [4mm (.157″) From Body]	Tsld	260℃

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Reverse Breakdown	BV_R	32	170	---	V	Ee=0mW/cm², IR=100μA
Open-Circuit Voltage	V_OC	---	0.42	---	V	Ee=5mW/cm² λp=940nm
Short-Circuit Current	I_SC	---	30	---	μA	Ee=1mW/cm², λp=940nm, V_R=5V
Reverse Light Current	I_L	1.0	3.0	---	μA	Ee=1mW/cm², λp=940nm, V_R=5V
Dark Current	I_D	---	---	10	nA	Ee=0mW/cm², V_R=10V
Wavelength of Peak Sensitivity	λp	---	940	---	nm
Rang of Spectral Bandwidth	λd	840	---	1100	nm
Total Capacitance	Ct	---	5	---	pF	Ee=0mW/cm², f=1MHZ, V_R=5V
Rise Time (10% TO 90%)	Tr	---	6	---	ns	RL=100Ω, V_R=10V
Fall Time (90% TO 10%)	Tf	---	6	---	ns	RL=100Ω, V_R=10V

Notes:

θ_1/2is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

Typical Electrical / Optical Characteristics Curves
