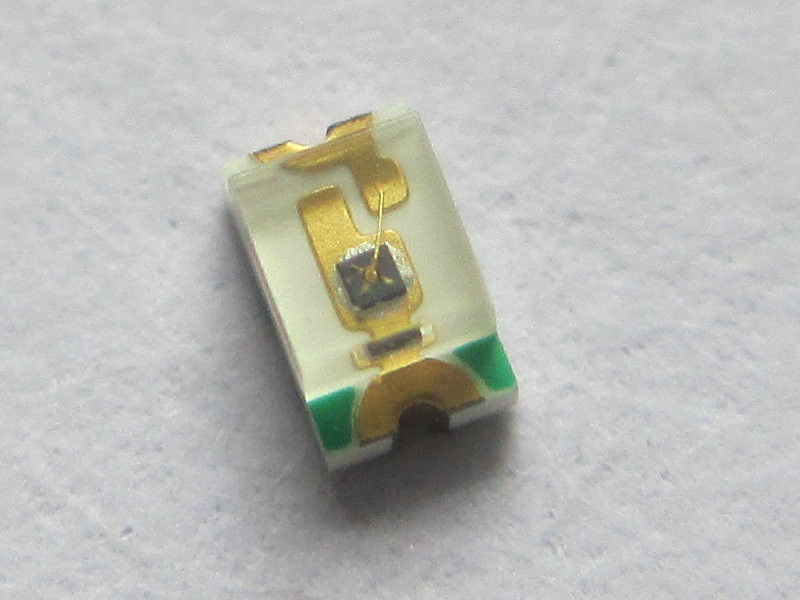

0.80Mm Height 0603 Package Infrared Emitting Diode , Infrared Chip LED

0.80Mm Height 0603 Package Infrared Emitting Diode , Infrared Chip LED
0.80Mm Height 0603 Package Infrared Emitting Diode , Infrared Chip LED

Large Image :  0.80Mm Height 0603 Package Infrared Emitting Diode , Infrared Chip LED

Product Details:
Place of Origin: China
Brand Name: Doule Light
Certification: RoHS/ REACH
Model Number: DL-PCB0603IRCA-1IR120
Payment & Shipping Terms:
Minimum Order Quantity: 4,000pcs/Real
Price: US$ 0.05-0.10per unit (Pieces)
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 2,000,000pcs per day
Contact Now
Detailed Product Description
Product Name: 0.80mm Height 0603 Package Infrared Chip LED Package: 0603 Package Chip LED
Emitted Color: Infrared Product Number: DL-PCB0603IRCA-1IR120
Color Temperature: 940nm Lens Type: Water Clear
Forward Voltage @20ma: 1.0-1.4V Viewing Angle: 140 Deg
High Light:

light emitting diode led

,

ir emitting diode

DL-PCB0603IRCA-1IR120.pdf



            This is 0.80mm height 0603 package infrared chip LED,its lens color is water clear.



Features:

  • Package in 8mm tape on 7" diameter reel.
  • Compatible with automatic placement equipment.
  • Compatible with infrared and vapor phase reflow solder process.
  • Mono-color type.
  • The product itself will remain within RoHS compliant Version.



Descriptions:

  • The 0603IR is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with flat top view lens.
  • The device is spectrally matched with photodiode and phototransistor.



Applications:

  • PCB mounted infrared sensor.
  • Infrared emitting for miniature light barrier.
  • Floppy disk drive.
  • Optoelectronic switch.
  • Smoke detector.



Part No. Chip Material Lens Color Source Color
DL-PCB0603IRCA-1IR120 GaAlAs Water Clear Infrared



Notes:

  • All dimensions are in millimeters (inches).
  • Tolerance is ± 0.10mm (.004″) unless otherwise specified.
  • Specifications are subject to change without notice.





Absolute Maximum Ratings at Ta=25℃



Parameters Symbol Max. Unit
Power Dissipation PD 100 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 1.00 A
Forward Current IF 50 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +100℃
Lead Soldering Temperature Tsld 260℃ for 5 Seconds





Electrical Optical Characteristics at Ta=25℃



Parameters Symbol Min. Typ. Max. Unit Test Condition
Radiant Intensity * Ee 0.20 0.35 --- mW/sr IF=20mA
--- 2.50 ---

IF=100mA

(Pulse Width≤100µs, Duty≤1%)
Viewing Angle * 2θ 1/2 --- 140 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 940 --- nm IF=20mA (Note 3)
Spectral Bandwidth △λ --- 50 --- nm IF=20mA
Forward Voltage VF 0.80 1.20 1.50 V IF=20mA
--- 1.60 1.80

IF=100mA

(Pulse Width≤100µs, Duty≤1%)
Reverse Current IR --- --- 10 µA VR=5V



Notes:

  • Luminous (Radiant) Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • The dominant wavelength (λp) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
