Detailed Product Description
Product Name: 3mm Round Standard T-1 Type Infrared LED Package: DIP 3mm Round Standard T-1 Type
Emitted Color: Infrared Product Number: DL-304IRCA-2IR45
Color Temperature: 940nm Lens Type: Water Clear
Forward Voltage @20ma: 0.8-1.5V Viewing Angle: 45 Deg
High Light:

ir emitting diode

,

940nm infrared led

DL-304IRCA-2IR45.pdf

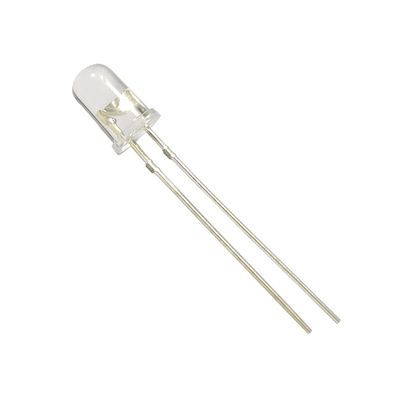

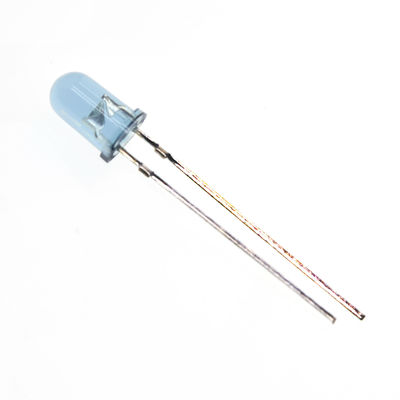

            This is 3mm round standard T-1 type infrared LED,its lens color is water clear.





Part No. Chip Material Lens Color Source Color
DL-304IRCA-2IR45 GaAlAs Water Clear Infrared



Notes:

  • All dimensions are in millimeters (inches).
  • Tolerance is ± 0.25 mm (.010″) unless otherwise specified.
  • Protruded resin under flange is 1.00 mm (.039″) max.

Specifications are subject to change without notice.





Features:

  • Standard T-1 diameter package.
  • Low forward voltage.
  • Viewing angle=45°.
  • Reliable and rugged.
  • The product itself will remain within RoHS complaint Version.



Descriptions:

  • The device is spectrally matched with silicon photodiode and phototransistor.



Applications:

  • Floppy disk drive.
  • Optoelectronic switch.
  • Camera.
  • Free air transmission system.
  • Video.



​Absolute Maximum Ratings at Ta=25℃



Parameters Symbol Max. Unit
Power Dissipation PD 100 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 1.00 A
Forward Current IF 100 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds





Electrical Optical Characteristics at Ta=25℃



Parameters Symbol Min. Typ. Max. Unit Test Condition
Radiant Intensity (Note 1) * Ee 4.0 8.0 --- mW/sr IF=20mA
--- 20.0 --- IF=100mA, tp=100µs, tp/T=0.01
Viewing Angle (Note 2) * 2θ1/2 --- 45 --- Deg IF=20mA
Peak Emission Wavelength λp --- 940 --- nm IF=20mA (Note 3)
Spectral Bandwidth △λ --- 50 --- nm IF=20mA
Forward Voltage VF 0.80 1.20 1.50 V IF=20mA
--- 1.60 1.80 IF=100mA, tp=100µs, tp/T=0.01
Reverse Current IR --- --- 10 µA VR=5V



Notes:

  • Luminous (Radiant) Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • The dominant wavelength (λp) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
