Flange Wide Viewing Angle Type White Indicator LED 4.80mm 80 Deg Viewing Angle

Flange Wide Viewing Angle Type White Indicator LED 4.80mm 80 Deg Viewing Angle
Flange Wide Viewing Angle Type White Indicator LED 4.80mm 80 Deg Viewing Angle Flange Wide Viewing Angle Type White Indicator LED 4.80mm 80 Deg Viewing Angle

Large Image :  Flange Wide Viewing Angle Type White Indicator LED 4.80mm 80 Deg Viewing Angle

Product Details:
Place of Origin: China
Brand Name: Double Light
Certification: RoHS/ REACH
Model Number: DL-484WC50E-1W80
Payment & Shipping Terms:
Minimum Order Quantity: 1,000pcs/Real
Price: US$ 0.03-0.05 per unit (Pieces) and can be discussed
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 2,000,000pcs per day
Detailed Product Description
Product Name: 4.80mm Round With Flange Wide Viewing Angle Type White LED Package: 4.80mm Round With Flange DIP LED
Emitted Color: White Color Product Number: DL-484WC50E-1W80
Color Temperature: 3000-6500K Lens Type: Water Clear
Forward Voltage @20ma: 3.0-3.6V Viewing Angle: 80 Deg
High Light:

high power light emitting diode

,

multi color led diode

DL-484WC65E-1W80.pdf

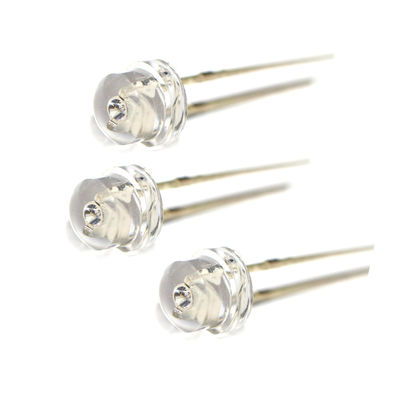

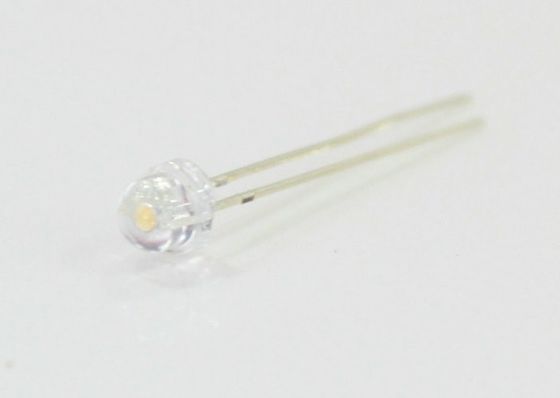

        This is 4.80mm round with flange wide viewing angle type white LED, its lens color is water clear and the emitting color of this size is changeable.





Part No. Chip Material Lens Color Source Color
DL-484WC50E-1W80 InGaN Water Clear White



Notes:

  • All dimensions are in millimeters (inches).
  • Tolerance is ± 0.25mm (.010″) unless otherwise noted.
  • Protruded resin under flange is 1.00mm (.039″) max.



Features:

  • 4.80mm diameter package.
  • Viewing angle=80°.
  • High efficiency.
  • Reliable and robust.
  • Emission color: X=0.33, y=0.34.
  • Industrial standard footprint.
  • The product itself will remain within RoHS compliant version.



Descriptions:

  • The series is specially designed for applications requiring higher brightness.
  • The white LED which was fabricated using a blue LED and a phosphor, and the phosphor is excited by blue light and emits yellow fluorescence. The mixture of blue light and yellow light results in white emission.
  • Utilizing advanced InGaN chip technology.



Applications:

  • QA equipment.
  • Backlighting of LCD.
  • Automotive equipment.
  • Replacement of conventional light bulbs and fluorescent lamps.
  • Indoor and out door displays, etc.



Absolute Maximum Ratings at Ta=25

Parameters Symbol Max. Unit
Power Dissipation PD 95 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 1000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃

Lead Soldering Temperature

[4mm (.157″) From Body]

Tsld 260℃ for 5 Seconds



Notes:

  • Proper current derating must be observed to maintain junction temperature below the maximum.
  • LEDs are not designed to be driven in reserve bias.



Electrical Optical Characteristics at Ta=25

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity IV 2000 2500 --- mcd IF=20mA (Note 1)
Viewing Angle 1/2 --- 80 --- Deg IF=20mA (Note 2)
Chromaticity Coordinates x --- 0.33 ---   IF=20mA (Note 3)
y --- 0.34 ---
Color Temperature CCT 4,500 5,000 5500 K IF=20mA
Forward Voltage VF 3.0 3.3 4.0 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V



Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.
