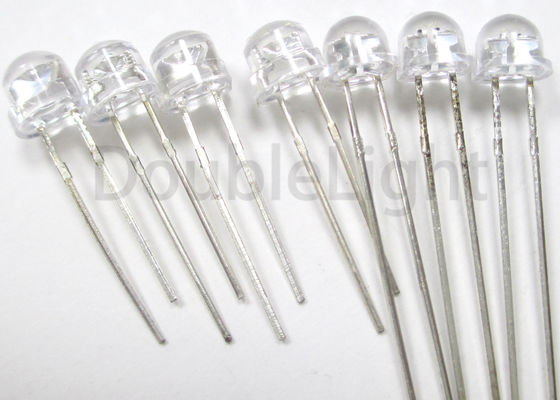

4.80mm Round With Flange Wide Viewing Angle Type Ultra Red LED，Blue ，Green，Yellow indication led，similar to straw hat

Name: 4.80mm Round With Flange Wide Viewing Angle Type Ultra Red LED，Blue ，Green，Yellow indication led，similar to straw hat
Brand: Double Light
SKU: DL-484SRCD-1SR80
Price: 0.015 USD
Availability: InStock
Rating: 4.9 (187 reviews)

Large Image : 4.80mm Round With Flange Wide Viewing Angle Type Ultra Red LED，Blue ，Green，Yellow indication led，similar to straw hat

Product Details:

Place of Origin:	China
Brand Name:	Double Light
Certification:	RoHS/ REACH
Model Number:	DL-484SRCD-1SR80

Payment & Shipping Terms:

Minimum Order Quantity:	1,000pcs/bag
Price:	US$ 0.015-0.025 per unit (Pieces)
Delivery Time:	7 days after payment received
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	2,000,000pcs per day

Contact Now

Detailed Product Description

Product Name:	4.80mm Round With Flange Type Ultra Red LED	Package:	4.80mm Round With Flange DIP LED
Emitted Color:	Ultra Red	Product Number:	DL-483SRCE-2SR80
Color Temperature:	620-630nm	Lens Type:	Water Clear
Forward Voltage @20ma:	1.8-2.6V	Datasheet:	Update
High Light:	high power light emitting diode , green light emitting diode

Datasheet:DL-484SRCD-1SR80.pdf Emitting color: Red

DL-484UYCD-1UY80.pdf Emitting color: Yellow

DL-484BCD-1B80.pdf Emitting colol: Blue

DL-484PGCD-1PG80.pdf Emitting color: Green

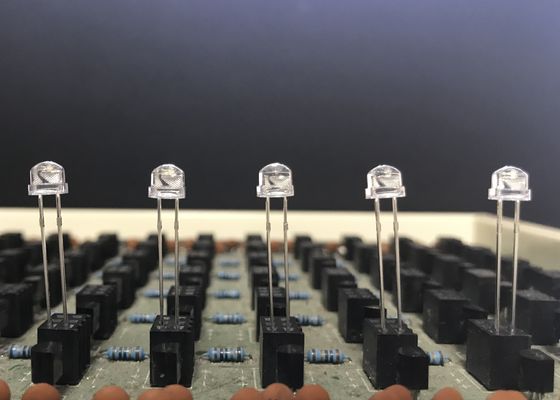

4.80mm Round With Flange Wide Viewing Angle Type Ultra Red LED，Blue ，Green，Yellow indication led，similar to straw hat 0

4.80mm Round With Flange Wide Viewing Angle Type

Ultra Red LED

This is 4.80mm Round With Flange Wide Viewing Angle Type Ultra Red LED, its Lens Color is Water Clear and Emitting Color is changeable.

Features:

Choice of various color.
Viewing angle=80º
High efficiency.
Selected minimum intensities.
Available on tape and reel.
Reliable and robust.
The product itself will remain within RoHS compliant Version.

Descriptions:

The series is specially designed for applications requiring higher brightness.
The LED lamps are available with different colors, intensities.

Applications:

TV set.
Monitor.
Telephone.
Computer.
Circuit board.
Status indicators.
Commercial use.
Advertising Signs.
Back lighting.

Part No.	Chip Material	Lens Color	Source Color
DL-483SRCE-2SR80	AlGaInP	Water Clear	Ultra Red

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	65	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
Forward Current	IF	30	mA
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-40℃ to +85℃
Storage Temperature Range	Tstg	-40℃ to +100℃
Lead Soldering Temperature [4mm (.157″) From Body]	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity (Note 1)*	IV	300	400	---	mcd	IF=20mA
Viewing Angle*	2θ_1/2	---	80	---	Deg	(Note 2)
Peak Emission Wavelength	λp	---	630	---	nm	IF=20mA
Dominant Wavelength	λd	---	624	---	nm	IF=20mA
Spectrum Radiation Bandwidth	Δλ	---	20	---	nm	IF=20mA
Forward Voltage	VF	1.80	2.20	----	V	IF=20mA
Reverse Current	IR	---	---	10	µA	V_R=5V

Notes:

Luminous Intensity Measurement allowance is ± 10%.
θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

For more details, please contact us.

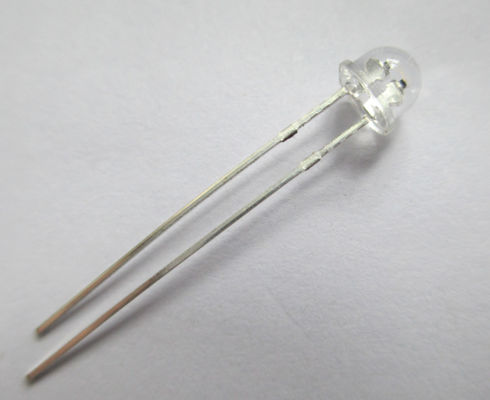

4.80mm Round With Flange Wide Viewing Angle Type Ultra Red LED，Blue ，Green，Yellow indication led，similar to straw hat 1
