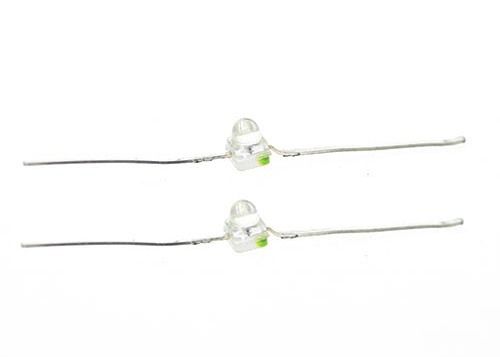

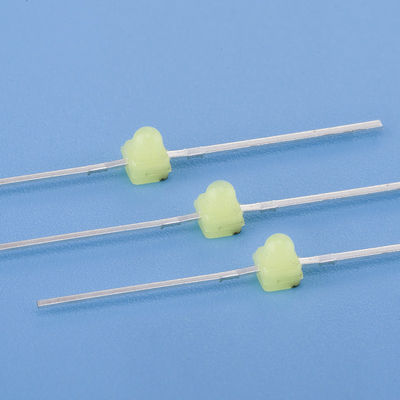

1.80mm Round Subminiature Axial White Chip LED, Lens Color is Water Clear and Emitting Color is Changeable

1.80mm Round Subminiature Axial White Chip LED, Lens Color is Water Clear and Emitting Color is Changeable

1.80mm Round Subminiature Axial White Chip LED,  Lens Color is Water Clear and Emitting Color is Changeable

Product Details:

Place of Origin: China
Brand Name: Double Light
Certification: RoHS/ REACH
Model Number: DL-R18W80Y

Payment & Shipping Terms:

Minimum Order Quantity: 1,000pcs/Real
Price: US$ 0.065-0.07 per unit (Pieces)
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 1,000,000pcs per day
Contact Now
Detailed Product Description
Product Name: 1.80mm Round Subminiature Axial White Chip LED Package: Subminiature Axial Chip LED
Emitted Color: White Product Number: DL-R18W80Y
Color Temperature: 3000-6500K Lens Type: Yellow Diffused
Forward Voltage @20ma: 3.0-3.6V Viewing Angle: 30 Deg

DL-R18W80Y.pdf



          This is 1.80mm round subminiature axial white chip LED, its lens color is water clear and emitting color is changeable.





Features:

  • 2.15×2.40mm with 1.80mm lens.
  • Small double-end package.
  • EIA Std. package.
  • Mono-color type.
  • High reliability.
  • Low forward voltage.
  • Compatible with automatic placement equipment.
  • The product itself will remain within RoHS compliant version.



Descriptions:

  • The R18 SMD taping is much smaller than leaded components. Thus enable smaller board size. Higher packing density. Reduced storage space and finally smaller equipment to be obtained.
  • Besides, light weight makes them ideal for miniature applications.
  • Furthermore by automation assembly machines the accuracy is anticipated.



Applications:

  • Small indicator for indoor applications.
  • Flat backlight for LCD, switches and symbols.
  • Indicator and backlight in office equipment.
  • Indicator and backlight for battery driven equipment.
  • Indicator and backlight for audio and video equipment.
  • Automotive: Backlighting in dashboards and switches.
  • Telecommunication: Indicator and backlighting in telephone and fax.



Part No. Chip Material Lens Color Source Color
DL-R18W80Y InGaN Yellow Diffused

White





Absolute Maximum Ratings at Ta=25

Parameters Symbol Max Unit
Power Dissipation PD 95 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Continuous Forward Current IF 25 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 400 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds





Electrical Optical Characteristics at Ta=25

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 450 600 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 30 --- Deg IF=20mA (Note 2)
Chromaticity Coordinates x --- 0.30 ---   IF=20mA (Note 3)
y --- 0.31 ---
Forward Voltage VF 3.00 3.30 4.00 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V



Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.
