2×3×4 mm or 2×5×7mm Square Rectangular Without Flange Type Red Lamp LED Diode Lights, signal indicator

2×3×4 mm or 2×5×7mm Square Rectangular Without Flange Type Red Lamp LED Diode Lights, signal indicator
2×3×4 mm or 2×5×7mm Square Rectangular Without Flange Type Red Lamp LED Diode Lights, signal indicator 2×3×4 mm or 2×5×7mm Square Rectangular Without Flange Type Red Lamp LED Diode Lights, signal indicator 2×3×4 mm or 2×5×7mm Square Rectangular Without Flange Type Red Lamp LED Diode Lights, signal indicator 2×3×4 mm or 2×5×7mm Square Rectangular Without Flange Type Red Lamp LED Diode Lights, signal indicator

Large Image :  2×3×4 mm or 2×5×7mm Square Rectangular Without Flange Type Red Lamp LED Diode Lights, signal indicator

Product Details:
Place of Origin: China
Brand Name: Double Light
Certification: RoHS/ REACH
Model Number: DL-234PGCA-1PG70
Payment & Shipping Terms:
Minimum Order Quantity: 1,000pcs/bag
Price: US$ 0.015-0.03 per unit (Pieces)
Delivery Time: 7-10 working days after payment received
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 5,000,000pcs per day
Contact Now
Detailed Product Description
Product Name: 3.2×2.0mm Rectangular LED Package: 3.2×2.0×4.0mm Rectangular DIP LED
Emitted Color: Pure Green Color Temperature: 520-530nm
Lens Type: Water Clear Forward Voltage @20ma: 2.8-3.6V
Viewing Angle: 70 Deg Datasheet: Update
High Light:

multi color led diode

,

green light emitting diode

Datasheet:DL-234PGCA-1PG70.pdf          water clear lens           Emitting color: Pure Green

                  DL-234BD-1B70.pdf                  Blue diffuesd lens       Emitting color: Blue

                  DL-234SRD-1SR70.pdf             Red diffused lens        Emitting color: Red

                  DL-234PGT-1PG70.pdf          Green Transparent lens       Emitting color:  Pure Green

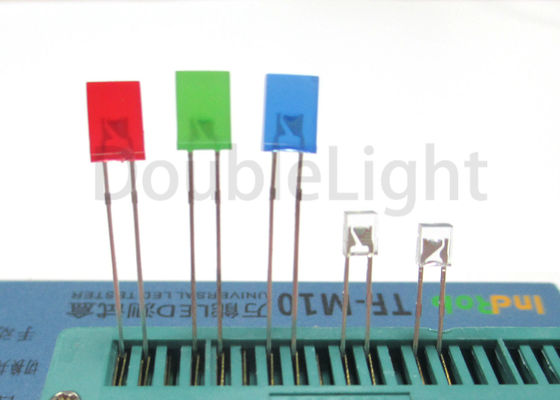

2×3×4 mm or 2×5×7mm Square Rectangular Without Flange Type Red Lamp LED Diode Lights, signal indicator 0



3.2×2.0mm Rectangular Without Flange Type

Pure Green LED




This is 3.2×2.0mm rectangular without flange type pure green LED, its lens color is water clear.

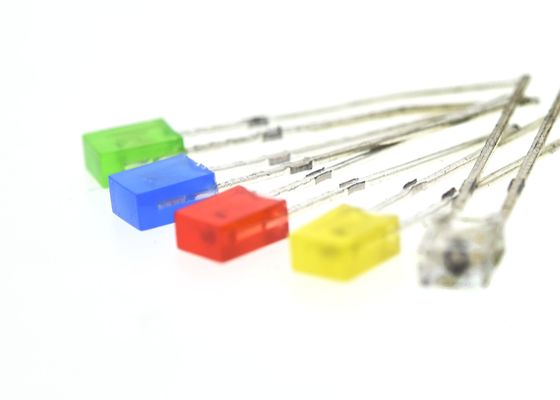

2×3×4 mm or 2×5×7mm Square Rectangular Without Flange Type Red Lamp LED Diode Lights, signal indicator 1

Features:

  • Choice of various colors.
  • 3.2×2mm Rectangular.
  • Available on tape and reel.
  • Reliable and robust.
  • The product itself will remain within RoHS compliant Version.



Descriptions:

  • The series is specially designed for applications requiring higher brightness.
  • The LED lamps are available with different colors, intensities.



Applications:

  • TV set.
  • Monitor.
  • Telephone.
  • Computer.
  • Circuit board.
  • Status indicators.
  • Commercial use.
  • Advertising Signs.
  • Back lighting.



Part No. Chip Material Lens Color Source Color
DL-234PGCA-1PG70 InGaN Water Clear Pure Green



Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 120 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current IF 30 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃

Lead Soldering Temperature

[4mm (.157″) From Body]

 Tsld 260℃ for 5 Seconds



Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 1100 2000 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 70 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 518 --- nm IF=20mA
Dominant Wavelength λd --- 523 --- nm IF=20mA (Note 3)
Spectrum Radiation Bandwidth Δλ --- 35 --- nm IF=20mA
Forward Voltage VF 2.8 3.3 --- V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V



Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

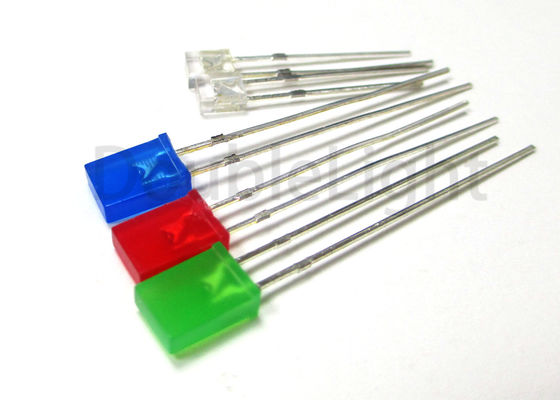

2×3×4 mm or 2×5×7mm Square Rectangular Without Flange Type Red Lamp LED Diode Lights, signal indicator 2



For more details, please contact us.

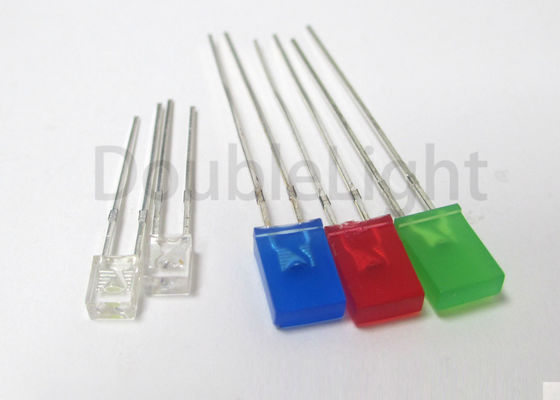

2×3×4 mm or 2×5×7mm Square Rectangular Without Flange Type Red Lamp LED Diode Lights, signal indicator 3
