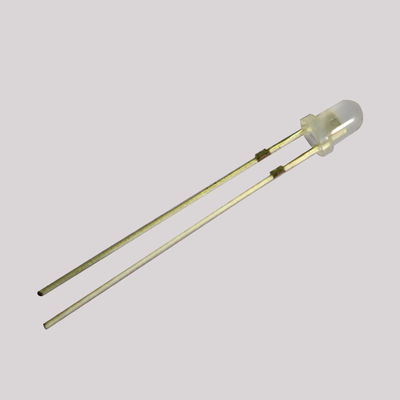

3mm Round Standard T-1 Type Pure Green LED, and Lens Color is Water Clear

3mm Round Standard T-1 Type Pure Green LED, and Lens Color is Water Clear

3mm Round Standard T-1 Type Pure Green LED, and Lens Color is Water Clear

Product Details:

Place of Origin: China
Brand Name: Double Light
Certification: ROHS/ REACH
Model Number: DL-304PGCA-1PG15

Payment & Shipping Terms:

Minimum Order Quantity: 1,000pcs/Real
Price: US$ 0.01-0.02 per unit (Pieces)
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 2,000,000pcs per day
Contact Now
Detailed Product Description
Product Name: 3mm Round Pure Green LED Package: 3mm DIP LED
Emitted Color: Pure Green Product Number: DL-304PGCA-1PG15
Color Temperature: 520nm Lens Type: Water Clear
Forward Voltage @20ma: 3.0-4.0V Viewing Angle: 15 Deg

DL-304PGCA-1PG15.pdf

Features:

  • Popular T-1 diameter package.
  • High efficiency.
  • Selected minimum intensities.
  • Available on tape and reel.
  • Reliable and robust.
  • The product itself will remain within RoHS compliant version.



Descriptions:

  • The series is specially designed for applications requiring higher brightness.
  • The LED lamps are available with different colors, intensities.



Applications:

  • Status indicators.
  • Commercial use.
  • Advertising Signs.
  • Back lighting.



Part No. Chip Material Lens Color Source Color
DL-304PGCA-1PG15 InGaN Water Clear Pure Green





  • Absolute Maximum Ratings at Ta=25
Parameters Symbol Max. Unit
Power Dissipation PD 100 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃

Lead Soldering Temperature

[4mm (.157″) From Body]

Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 8000 10500 --- mcd IF=20mA (Note 1)
Viewing Angle * 1/2 --- 15 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 518 --- nm IF=20mA
Dominant Wavelength λd --- 523 --- nm IF=20mA (Note 3)
Spectral Line Half-Width △λ --- 35 --- nm IF=20mA
Forward Voltage VF 3.00 3.30 4.00 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V



Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
