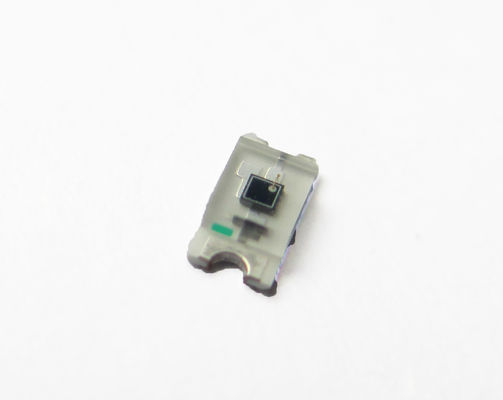

940Nm 880nm 850nm Infrared Emitting Diode Tyntek Infrared Chip LED 0603 1608 IR

940Nm 880nm 850nm Infrared Emitting Diode Tyntek Infrared Chip LED 0603 1608 IR

    • 940Nm 880nm 850nm Infrared Emitting Diode Tyntek Infrared Chip LED 0603 1608 IR
    • 940Nm 880nm 850nm Infrared Emitting Diode Tyntek Infrared Chip LED 0603 1608 IR
    • 940Nm 880nm 850nm Infrared Emitting Diode Tyntek Infrared Chip LED 0603 1608 IR
  • 940Nm 880nm 850nm Infrared Emitting Diode Tyntek Infrared Chip LED 0603 1608 IR

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: Double Light
    Certification: ISO9001:2008,ROHS
    Model Number: DL-PCB0603IRCA-1IR120

    Payment & Shipping Terms:

    Minimum Order Quantity: 10,000pcs
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: 0603 1608 Infrared LEDs Diameter: 0603 1608 SMD LED Infrared
    Emitted Color: SMD Infrared LED Peak Emission Wavelength: 940nm 880nm 850nm
    Chip Material: GaAlAs Lens Type: Water Clear
    Forward Voltage @20ma: 1.1-1.4V Viewing Angle: 120 Deg

    IR led 940nm 880nm 850nm Infrared Emitting Diode for Tyntek Infrared Chip LED 0603 1608 Package IR led



    • Features:
    1. Package in 8mm tape on 7" diameter reel.
    2. Compatible with automatic placement equipment.
    3. Compatible with infrared and vapor phase reflow solder process.
    4. Mono-color type.
    5. The product itself will remain within RoHS compliant Version.



    • Descriptions:
    1. The 0603IR is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with flat top view lens.
    2. The device is spectrally matched with photodiode and phototransistor.



    • Applications:
    1. PCB mounted infrared sensor.
    2. Infrared emitting for miniature light barrier.
    3. Floppy disk drive.
    4. Optoelectronic switch.
    5. Smoke detector.
    • Absolute Maximum Ratings at Ta=25℃
    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Radiant Intensity * Ee 0.20 0.35 --- mW/sr IF=20mA
    --- 2.50 ---

    IF=100mA

    (Pulse Width≤100µs, Duty≤1%)

    Viewing Angle * 2θ 1/2 --- 140 --- Deg IF=20mA (Note 2)
    Peak Emission Wavelength λp --- 940 --- nm IF=20mA (Note 3)
    Spectral Bandwidth △λ --- 50 --- nm IF=20mA
    Forward Voltage VF 0.80 1.20 1.50 V IF=20mA
    --- 1.60 1.80

    IF=100mA

    (Pulse Width≤100µs, Duty≤1%)

    Reverse Current IR --- --- 10 µA VR=5V




    Notes:

    Luminous (Radiant) Intensity Measurement allowance is ± 10%. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity. The dominant wavelength (λp) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
    Parameters Symbol Max. Unit
    Power Dissipation PD 100 mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 1.00 A
    Forward Current IF 50 mA
    Reverse Voltage VR 5 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +100℃
    Lead Soldering Temperature Tsld 260℃ for 5 Seconds
