Size 1608 SMD LED Light Components 0603 Package Hyper Red Chip LED

Size 1608 SMD LED Light Components 0603 Package Hyper Red Chip LED

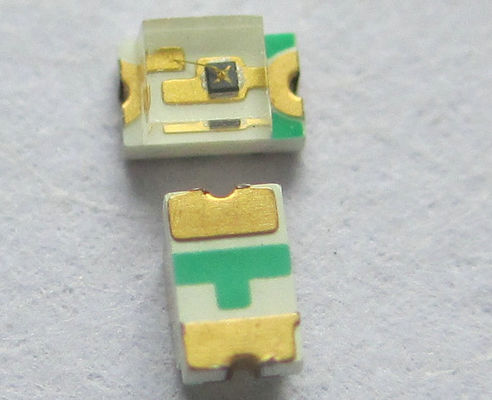

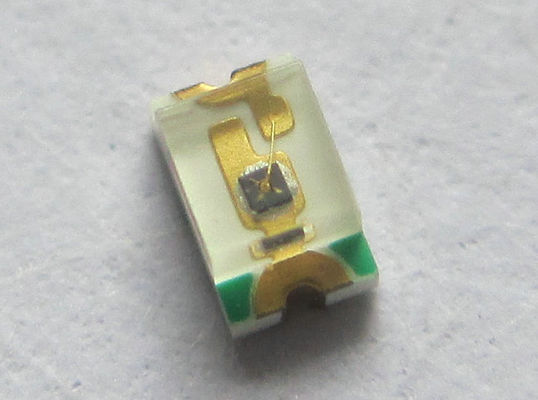

Size 1608 SMD LED Light Components 0603 Package Hyper Red Chip LED Size 1608 SMD LED Light Components 0603 Package Hyper Red Chip LED Size 1608 SMD LED Light Components 0603 Package Hyper Red Chip LED

Large Image :  Size 1608 SMD LED Light Components 0603 Package Hyper Red Chip LED

Product Details:
Place of Origin: China
Brand Name: Double Light
Certification: ISO9001:2008,Rosh
Model Number: DL-PCB0603SRC-1SR120
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Price: USD 0.1-0.13/PCS
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: SMD LED Light Components Power (mW): 100
Emitted Color: 0603 SMD LED Chip Material: AlGaInP
Peak Emission Wavelength: Hyper Red Forward Voltage @20ma: 1.8-2.0V
Viewing Angle: 120 Deg Luminous Intensitysity: 350mcd
High Light:

led light components parts

,

led light chip

Size 1608 SMD LED Light Components 0603 Package Hyper Red Chip LED



SMD LED Light Components



 Features:

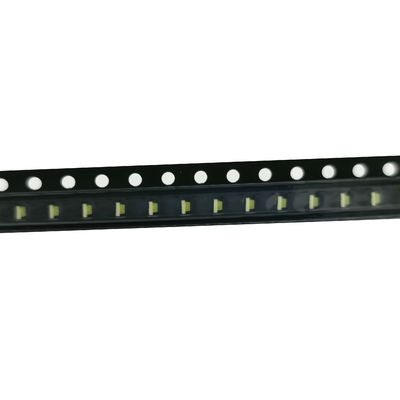

  1. Package in 8mm tape on 7″ diameter reel.
  2. 1.60mm×1.50mm SMT LED, 0.75mm thickness.
  3. Low power consumption.
  4. Compatible with automatic placement equipment.
  5. Compatible with infrared and vapor phase reflow solder process.
  6. Bi-color (Multi-color) type.
  7. Colors: Hyper Red & Super Yellow Green.
  8. The product itself will remain within RoHS compliant Version.



Descriptions:



  1. The 0605 SMD LED is much smaller than lead frame type components, thus enable smaller higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. Besides, light Weight makes them ideal for miniature applications, etc.
  3. The series is specially designed for applications requiring higher brightness.
  4. The SMD LEDs are available with different colors, intensities.





Applications:



  1. Automotive: Backlighting in dashboard and switch.
  2. Telecommunication: Indicator and backlighting in telephone and fax.
  3. Flat backlight for LCD, switch and symbol.
  4. Circuit board.
  5. Status indicators.
  6. Commercial use.
  7. Advertising Signs.
  8. Computer.
  9. TV set.
  10. Monitor.
  11. General use.



Part No. Chip Material Lens Color Source Color
DL-PCB0603SRC-1SR120 AlGaInP Water Clear Hyper Red















Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 60 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Continuous Forward Current IF 25 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds




Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 50 100 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 120 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 632 --- nm IF=20mA
Dominant Wavelength λd --- 624 --- nm IF=20mA (Note 3)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF 2.00 2.20 2.80 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V




Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.







SMD LED Light Components Package Dimension:

Size 1608 SMD LED Light Components 0603 Package Hyper Red Chip LED 0
