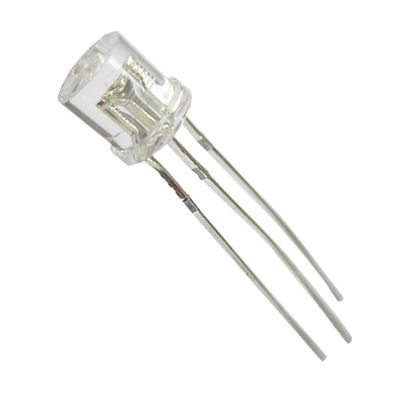

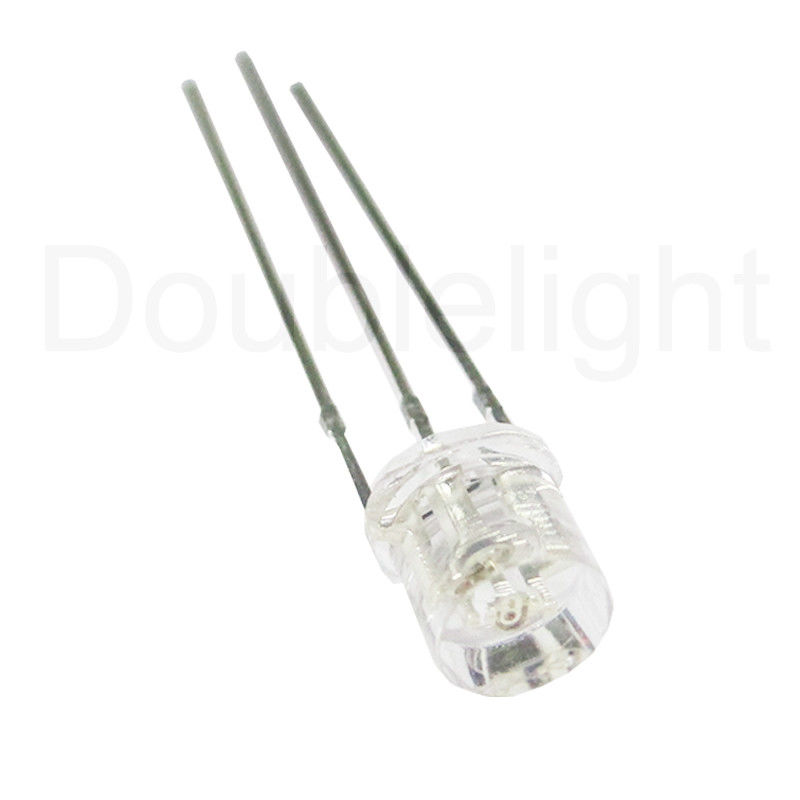

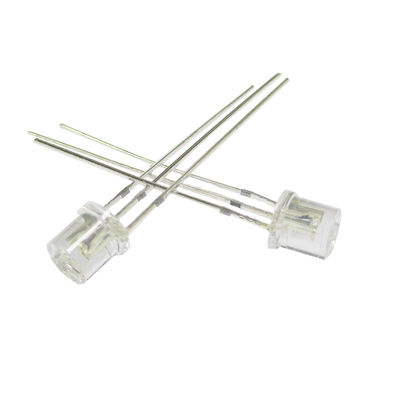

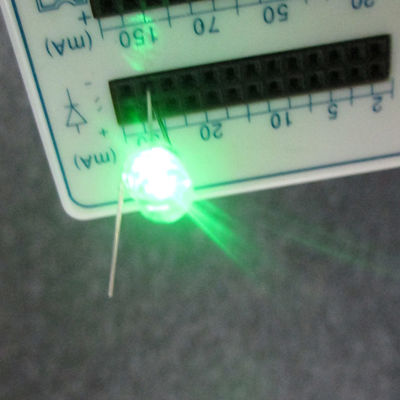

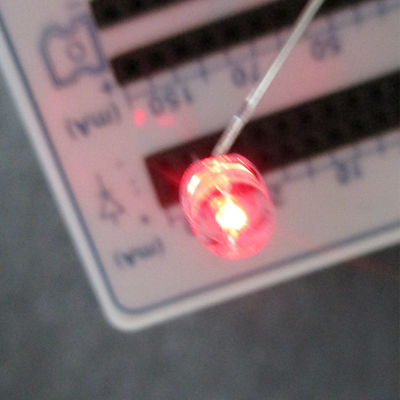

5mm Cylindrical Flat Lens Type Bi-Color Hyper Red & Pure Green LEDs led light components
Features:
1. 5mm standard T-1 3/4 type.
2. Bi-color: Hyper Red & Pure Green.
3. Uniform light output.
4. Low power consumption.
5. I.C. Compatible.
6. Long life-solid state reliability.
7. The product itself will remain within RoHS compliant Version.
Descriptions:
1. The Hyper Red source color devices are made with AlGaInP on N-GaAs substrate Light Emitting Diode.
2. The Pure Green source color devices are made with InGaN on Sapphire substrate Light Emitting Diode.
Applications:
1. TV set.
2. Monitor.
3. Telephone.
4. Computer.
5. Circuit board, etc.
Absolute Maximum Ratings at Ta=25℃
| Parameters | Symbol | Max. | Unit | |
| Power Dissipation | Hyper Red | PD | 60 | mW |
| Pure Green | 95 | |||
| Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 100 | mA | |
| Forward Current | Hyper Red | IF | 25 | mA |
| Pure Green | 25 | |||
| Reverse Voltage | VR | 5 | V | |
| Electrostatic Discharge(HBM) | Hyper Red | ESD | 2000 | V |
| Pure Green | 400 | |||
| Operating Temperature Range | Topr | -40℃ to +85℃ | ||
| Storage Temperature Range | Tstg | -40℃ to +100℃ | ||
| Lead Soldering Temperature [4mm (.157″) From Body] |
Tsld | 260℃ for 5 Seconds | ||
Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Emitting Color |
Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity* | IV | Hyper Red | 1000 | 2000 | --- | mcd | IF=20mA(Note 1) |
| Pure Green | 2000 | 3500 | --- | ||||
| Viewing Angle* | 2θ1/2 | Hyper Red | --- | 50 | --- | Deg | IF=20mA(Note 2) |
| Pure Green | --- | 50 | --- | ||||
| Peak Emission Wavelength | λp | Hyper Red | --- | 632 | --- | nm | IF=20mA |
| Pure Green |
-- |
520 | --- | ||||
| Dominant Wavelength | λd | Hyper Red | --- | 624 | --- | nm | IF=20mA (Note 3) |
| Pure Green | --- | 525 | --- | ||||
| Spectral Line Half-Width | △λ | Hyper Red | --- | 20 | --- | nm | I F =20mA |
| Pure Green | --- | 35 | --- | ||||
| Forward Voltage | VF | Hyper Red | 1.80 | 2.20 | 2.80 | V | IF=20mA |
| Pure Green | 2.80 | 3.30 | 3.80 | ||||
| Reverse Current | IR | Hyper Red | --- | --- | 10 | µA | V R =5V |
| Pure Green | --- | --- | 10 |
Notes:
1. Luminous Intensity Measurement allowance is ± 10%.
2. θ 1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single
wavelength which defines the color of the device.
