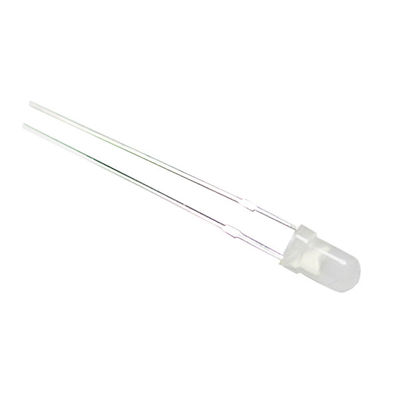

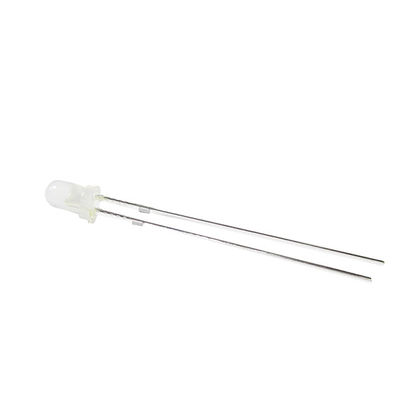

T-1 Type Ultra Amber 25mA 605nm 73mW LED Led Light Components

T-1 Type Ultra Amber 25mA 605nm 73mW LED Led Light Components
T-1 Type Ultra Amber 25mA 605nm 73mW LED Led Light Components

Large Image :  T-1 Type Ultra Amber 25mA 605nm 73mW LED Led Light Components

Product Details:
Place of Origin: China (mainland)
Brand Name: Double Light
Certification: ISO9001:2008/ROHS
Model Number: DL-304UAM-06W
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs/pack
Price: Negotiated
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 10-15 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: 3mm Round Standard T-1 Type Source Color: Ultra Amber
Forward Voltage @20ma: 2.00V Viewing Angle: 30Deg
Forward Current: 25mA Peak Emission Wavelength: 605nm
Power Dissipation: 73mW
High Light:

73mW LED Led Light Components

,

605nm LED Led Light Components

,

25mA High Power Led Chip

3mm Round Standard T-1 Type Ultra Amber LED led light components parts​



                                                                                              DL-304UAM-06W.pdf

Features:
1. High efficiency.
2. Selected minimum intensities.
3. Available on tape and reel.
4. Reliable and robust.
5. The product itself will remain within RoHS complaint Version.


Descriptions:
1. The series is specially designed for applications requiring higher brightness.
2. The LED lamps are available with different colors, intensities.


Applications:
1. TV set.
2. Monitor.
3. Telephone.
4. Computer.
5. Circuit board.
6. Status indicators.
7. Commercial use.
8. Advertising Signs.
9. Back lighting.
10. Traffic indicators.



T-1 Type Ultra Amber 25mA 605nm 73mW LED Led Light Components 0

Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
3. Protruded resin under flange is 1.00 mm (.039″) max.
4. Specifications are subject to change without notice.





Absolute Maximum Ratings at Ta=25



Parameters Symbol Max. Unit
Power Dissipation PD 73 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃
Lead Soldering Temperature
[4mm (.157″) From Body]
Tsld 260℃ for 5 Seconds



Electrical Optical Characteristics at Ta=25℃



Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 150 280 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 30 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 605 --- nm IF=20mA
Dominant Wavelength λd --- 600 --- nm IF=20mA (Note 3)
Spectral Line Half-Width △λ --- 35 --- nm I F =20mA
Forward Voltage VF 1.80 2.00 2.50 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V




Notes:
1. Luminous Intensity Measurement allowance is ± 10%.
2. θ 1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



T-1 Type Ultra Amber 25mA 605nm 73mW LED Led Light Components 1


Please read the following notes before using the product:



1.  Over-current-proof

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.

Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.



2.  Repairing

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90% RH or less.

2.3 The LEDs should be used within a year.

2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70% RH or less.

2.5 The LEDs should be used within 168 hours (7 days) after opening the package.



3.  Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.



4.  Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
