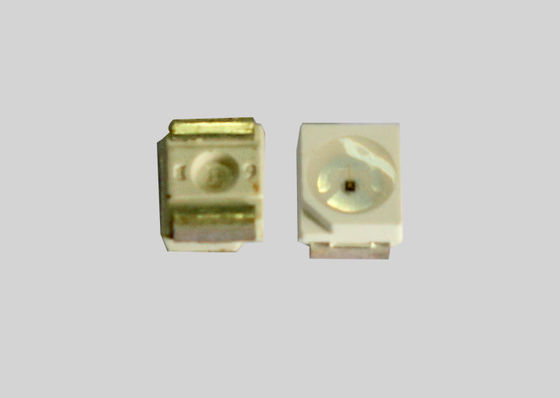

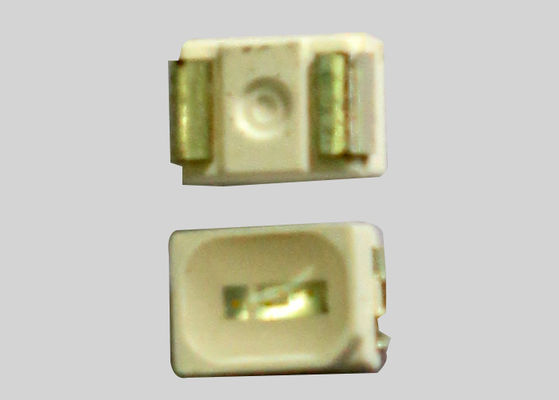

1.9mm Chip UV Emitting Led 405 - 410nm Dominant Wavelength With PLCC 2 SMD

1.9mm Chip UV Emitting Led 405 - 410nm Dominant Wavelength With PLCC 2 SMD

    • 1.9mm Chip UV Emitting Led 405 - 410nm Dominant Wavelength With PLCC 2 SMD
    • 1.9mm Chip UV Emitting Led 405 - 410nm Dominant Wavelength With PLCC 2 SMD
    • 1.9mm Chip UV Emitting Led 405 - 410nm Dominant Wavelength With PLCC 2 SMD
  • 1.9mm Chip UV Emitting Led 405 - 410nm Dominant Wavelength With PLCC 2 SMD

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-TOP3528UVC-UV410

    Payment & Shipping Terms:

    Minimum Order Quantity: 10,000pcs
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 15 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: Purple Uv LED Package: 3825 SMD LED On Tape And Reel (8mm Tape)
    Emitted Color: Purple Peak Emission Wavelength: 405nm
    Chip Material: InGaN Lens Type: Water Clear
    Forward Voltage @20ma: 3.0-3.3v Luminous Intensity: 40-55mcd
    Viewing Angle: 120 Deg Forward Current: 20mA

    uv emitting led 1.9mm Chip Led 405-410nm Dominant Wavelength uv led with plcc 2 smd uv led diode





    DL-TOP3528UVC-UV410.pdf


    Features:

    1. Available on tape and reel (8mm Tape).
    2. P-LCC-2 package.
    3. White package.
    4. Colorless clear window.
    5. Ideal for backlight and light pipe application.
    6. Inter reflector.
    7. Wide viewing angle.
    8. Long life.
    9. No IR emission. Ideal for heat sensitive materials.
    10. Instant on and instant off.
    11. Sharp spectrum.
    12. Compact light (free design).
    13. Power is adjustable by current (No Shutters Needed).
    14. Ability to operate in low temperature.
    15. Impact Resistant.
    16. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
    17. Computable with automatic placement equipment.
    18. The product itself will remain within RoHS compliant Version.

    Descriptions:

         1.The TOP3528 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized. Light coupling by inter reflector. This feature makes the TOP View LEDs ideal for portable equipment or any other application where is at a premium.

    Applications:

    1. Photo catalyst excitation.
    2. Phosphor excitation.
    3. Sensor.
    4. QA equipment.
    5. Counterfeit Bill Detection.



    Part No.Chip MaterialLens ColorSource Color
    DL-TOP3528UVC-UV410InGaNWater ClearPurple


    Notes:

    1. All dimensions are in millimeters (inches).
    2. Tolerance is ± 0.10mm (.004") unless otherwise specified.
    3. Specifications are subject to change without notice.


    Purple LED Absolute Maximum Ratings at Ta=25℃

    ParametersSymbolMax.Unit
    Power DissipationPD95mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP100mA
    Continuous Forward CurrentIF20mA
    Reverse VoltageVR5V
    Electrostatic Discharge (HBM)ESD1000V
    Operating Temperature RangeTopr-40℃ to +80℃
    Storage Temperature RangeTstg-40℃ to +85℃
    Soldering TemperatureTsld260℃ for 5 Seconds


    Purple LED Electrical Optical Characteristics at Ta=25℃


    ParametersSymbolMin.Typ.Max.UnitTest Condition
    Luminous Intensity *IV4055---mcdIF=20mA (Note 1)
    Viewing Angle *2θ1/2---120---DegIF=20mA (Note 2)
    Peak Emission Wavelengthλp---405---nmIF=20mA
    Dominant Wavelengthλd---400---nmIF=20mA (Note 3)
    Spectral Line Half-Width△λ---15---nmIF=20mA
    Forward VoltageVF3.003.304.00VIF=20mA
    Reverse CurrentIR------10µAVR=5V


    Notes:

    1. Luminous Intensity Measurement allowance is ± 10%.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

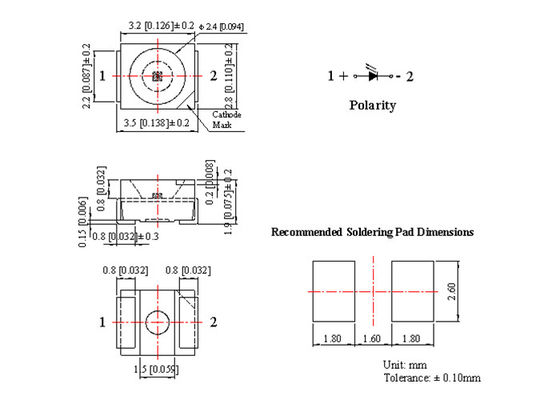

    UV LED Diodes Package Dimension:
    1.9mm Chip UV Emitting Led 405 - 410nm Dominant Wavelength With PLCC 2 SMD
    UV LED Diodes Typical Electrical / Optical Characteristics Curves
    (25℃ Ambient Temperature Unless Otherwise Noted)

    1.9mm Chip UV Emitting Led 405 - 410nm Dominant Wavelength With PLCC 2 SMD
