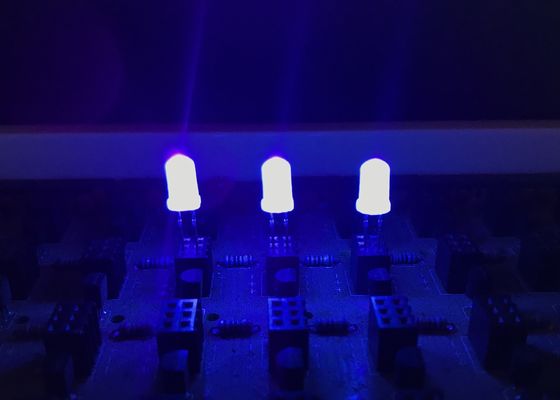

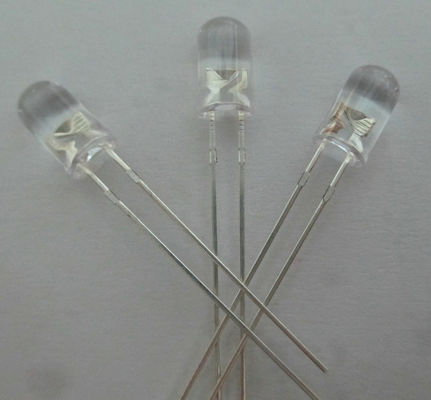

Dip 5 mm Round Purple UV LED Diode / uv light emitter 365nm Water Clear

Dip 5 mm Round Purple UV LED Diode / uv light emitter 365nm Water Clear
Dip 5 mm Round Purple UV LED Diode / uv light emitter 365nm Water Clear Dip 5 mm Round Purple UV LED Diode / uv light emitter 365nm Water Clear Dip 5 mm Round Purple UV LED Diode / uv light emitter 365nm Water Clear

Large Image :  Dip 5 mm Round Purple UV LED Diode / uv light emitter 365nm Water Clear

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-504UVCA-1UV20-365
Payment & Shipping Terms:
Minimum Order Quantity: 10,000pcs
Price: US$ 0.303-0.31per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 15 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: Purple LED Package: Dip 5 Mm
Emitted Color: Purple Peak Emission Wavelength: 365nm
Chip Material: InGaN Lens Type: Water Clear
Forward Voltage @20ma: 3.0-3.3v Luminous Intensity: 100mcd
Viewing Angle: 20 Deg
High Light:

365nm uv led

,

uv emitting led



Dip 5 mm Round Purple UV LED Diode / uv light emitter 365nm Water Clear



Features:

  1. Popular T-1 3/4 diameter package.
  2. No IR emission. Ideal for heat sensitive materials.
  3. Instant on and instant off.
  4. Long life.
  5. Sharp spectrum.
  6. Compact light (free design).
  7. Power is adjustable by current (No Shutters Needed).
  8. Ability to operate in low temperature.
  9. Impact resistance.
  10. The product itself will remain within RoHS compliant Version.



Applications:

  1. Photo catalyst excitation.
  2. Phosphor excitation.
  3. Sensor.
  4. QA equipment.
  5. Counterfeit Bill Detection.





Package Dimension:

Dip 5 mm Round Purple UV LED Diode / uv light emitter 365nm Water Clear 0





Part No. Chip Material Lens Color Source Color
DL-504UVCA-1UV20-365 InGaN Water Clear Purple













Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 100 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃

Lead Soldering Temperature

[4mm (.157″) From Body]

 Tsld 260℃ for 5 Seconds




Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 100 200 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 20 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 365 --- nm IF=20mA
Spectrum Radiation Bandwidth Δλ --- 15 --- nm IF=20mA
Forward Voltage VF 3.00 3.30 --- V IF=20mA
Reverse Current IR --- --- 10 µA IF=20mA




Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.



Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)



Dip 5 mm Round Purple UV LED Diode / uv light emitter 365nm Water Clear 1
