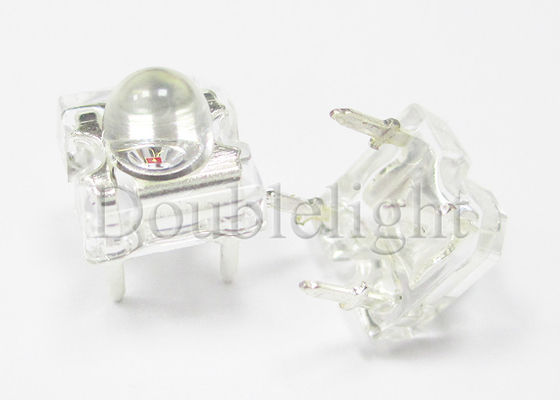

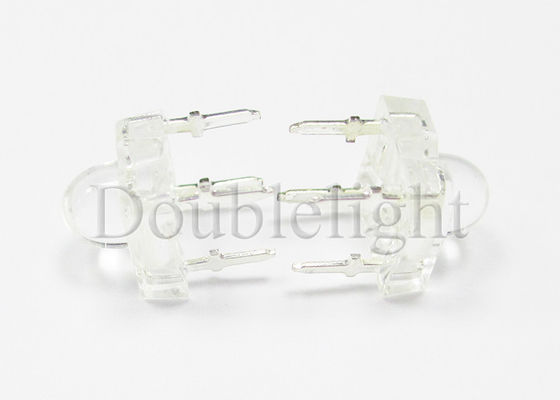

Square Shape 5Ф Dome 4 Lead Ultra Red LED Light Chip 100mA Peak Forward Current

Square Shape 5Ф Dome 4 Lead Ultra Red LED Light Chip 100mA Peak Forward Current
Square Shape 5Ф Dome 4 Lead Ultra Red LED Light Chip 100mA Peak Forward Current Square Shape 5Ф Dome 4 Lead Ultra Red LED Light Chip 100mA Peak Forward Current Square Shape 5Ф Dome 4 Lead Ultra Red LED Light Chip 100mA Peak Forward Current

Large Image :  Square Shape 5Ф Dome 4 Lead Ultra Red LED Light Chip 100mA Peak Forward Current

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-U50SRE-4SR45
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiated
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:5.1 Kilograms • Units per Export Carton:3000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:10.2 Kilograms
Delivery Time: 10-15 working days after received your payment
Payment Terms: T/T
Supply Ability: 8,000,000pcs per Day
Detailed Product Description
Light Source: Ultra Red Application: Automotive Exterior Lighting
Chip Material: AlGaInP Certification: RoHS
Product Name: Square With 5Ф Dome 4 Lead Ultra Red LED Peak Forward Current: 100mA
Dominant Wavelength: 624nm Power Dissipation: 180mW
Viewing Angle: 45deg
High Light:

high power led chip

,

led light chip

Square With 5Ф Dome 4 Lead Ultra Red LED led light components



DL-U50SRE-4SR45.pdf





Features:

  1. Fewer LEDs required.
  2. Low profile.
  3. Lowers lighting system cost.
  4. Super flux output.
  5. Viewing angle=45°.
  6. Emission color coordinates: Ultra Red.
  7. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. This revolutionary package design allows the light designer to reduce the number of LEDs required and provide a more uniform and unique illuminated appearance than with other LED solutions.
  2. The low profile package can be easily coupled with reflectors or lenses to efficiently distribute light and provide the desired light appearance.
  3. The white LED which was fabricated using a blue LED and a phosphor, and the phosphor is excited by blue light and emits yellow fluorescence the mixture of blue light and yellow light results in white emission.
  4. Utilizing advanced InGaN chip technology.

Applications:

  1. Automotive exterior lighting.
  2. Electronic signs and signals.
  3. Special lighting application.

Package Dimension:
Square Shape 5Ф Dome 4 Lead Ultra Red LED Light Chip 100mA Peak Forward Current 0


Part No. Chip Material Lens Color Source Color
DL-U50SRE-4SR45 AlGaInP Water Clear Ultra Red


Notes:

1.All dimensions are in millimeters (inches).

2.Tolerance is ±0.25mm (0.01”) unless otherwise specified.

3.Lead spacing is measured where the leads emerge from the package.

4.Specifications are subject to change without notice.

.
Absolute Maximum Ratings at Ta=25℃

Parameters Max. Unit
Power Dissipation 180 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

100 mA
Continuous Forward Current 50 mA
Derating Linear From 50℃ 0.4 mA/℃
Reverse Voltage 5 V
Operating Temperature Range -40℃ to +85℃
Storage Temperature Range -40℃ to +105℃

Lead Soldering Temperature

[4mm (.157″) From Body]

260℃ for 5 Seconds



Electrical Optical Characteristics at Ta=25℃




Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity (Note 1) * IV
1350
2650
4000
1600
2950
4500
---
---
---

IF=20mA
IF=30mA
IF=50mA
Luminous Flux (Note 1) * φ
0.80
1.80
1.55
3.20
---
---
lm
IF=30mA
IF=50mA
Viewing Angle (Note 2) * 1/2 --- 45 --- Deg IF=20mA
Peak Emission Wavelength λp --- 632 --- nm IF=20mA
Dominant Wavelength (Note 3) λd --- 624 --- nm IF=20mA
Spectrum Radiation Bandwidth Δλ --- 20 --- nm IF=20mA
Forward Voltage VF 1.80 2.20 2.60 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V

Notes:

  1. Luminous Intensity (Flux) is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2°values of Red, Green and Blue content of the measurement.
