Top View Hyper Red Chip LED Light Components 2.0-3.0v For Indicator / Backlight

Top View Hyper Red Chip LED Light Components 2.0-3.0v For Indicator / Backlight

    • Top View Hyper Red Chip LED Light Components 2.0-3.0v For Indicator / Backlight
    • Top View Hyper Red Chip LED Light Components 2.0-3.0v For Indicator / Backlight
    • Top View Hyper Red Chip LED Light Components 2.0-3.0v For Indicator / Backlight
  • Top View Hyper Red Chip LED Light Components 2.0-3.0v For Indicator / Backlight

    Product Details:

    Place of Origin: China
    Brand Name: Double LIGHT
    Certification: ISO9001:2008,Rosh
    Model Number: DL-TOP2835SRC-02W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description

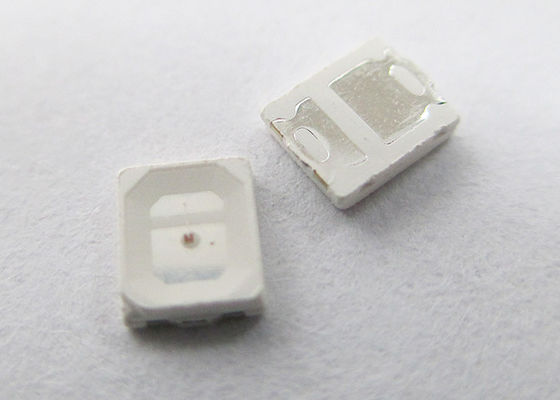

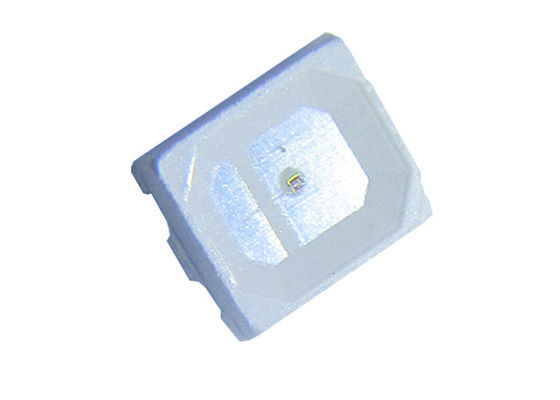

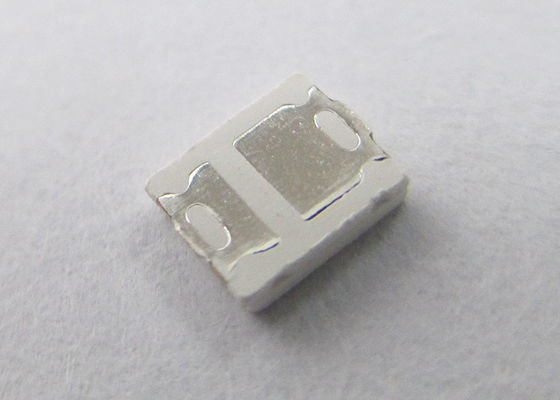

    Product Name: 2835 Red LED Components Light Source: Hyper Red
    Current: 60ma Certification: Rosh SGS ISO9001
    Luminous Intensity: 2880mcd Forward Voltage: 2.0-3.0v
    Chip Material: AlGaInP Viewing Angle: 120Deg
    Peak Emission Wavelength: 632nm Dominant Wavelength: 624nm
    Base Type: 2835 Application: Residential,Indoor Lighting,street Etc.





    0.75mm height led light Components 2835 Top View Hyper Red Chip LED for Indicator and backlight



    Know more details,please downlaod specifications:DL-TOP2835SRC-02W.pdf



    Features:

    1. P-LCC-2 package.
    2. White package.
    3. Optical indicator.
    4. Colorless clear window.
    5. Ideal for backlight and light pipe application.
    6. Inter reflector.
    7. Wide viewing angle.
    8. Suitable for automatic placement equipment.
    9. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
    10. Available on tape and reel (8mm Tape).
    11. The product itself will remain within RoHS compliant Version.



    Descriptions:

    1. The TOP2835 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



    Applications:

    1. Automotive: Backlighting in dashboards and switches.
    2. Telecommunication: Indicator and backlight in telephone and fax
    3. Indicator and backlight for audio and video equipment.
    4. Indicator and backlight in office and family equipment.
    5. Flat backlight for LCD’s, switches and symbols.
    6. Light pipe application.
    7. General use.



    Absolute Maximum Ratings at Ta=25℃

    Parameters Symbol Max. Unit
    Power Dissipation PD 150 mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 150 mA
    Continuous Forward Current IF 60 mA
    Reverse Voltage VR 5 V
    Electrostatic Discharge (HBM) ESD 1000 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds




    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition

    Luminous Intensity*

    IV

    1750 2880 --- mcd IF=60mA

    Viewing Angle *



    2θ1/2 --- 120 --- Deg

    IF=60mA



    Peak Emission Wavelength

    λp

    --- 632 --- nm IF=60mA (Note 3)

    Dominant Wavelength

    λd

    --- 624 --- nm

    Spectral Line Half-Width

    △λ

    --- 25 ---- nm IF=60mA
    Forward Voltage VF 2.00 2.50 3.00 V IF=20mA
    Reverse Current IR --- --- 10 µA VR=5V

    SMD 2835 LED Package Dimension:
