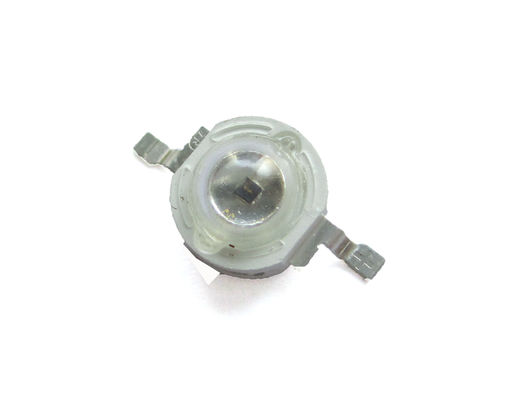

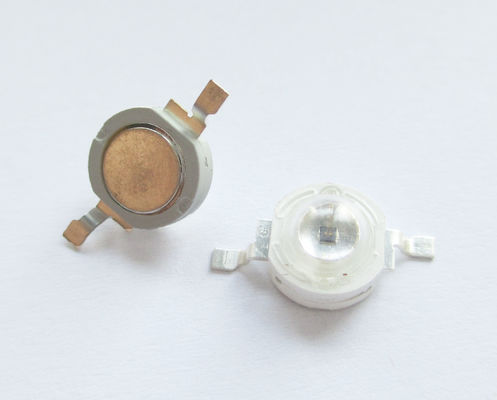

1W High Power Blue Led Chip , InGaN Chip Led Lamp Components 460nm Water clear

1W High Power Blue Led Chip , InGaN Chip Led Lamp Components 460nm Water clear

    • 1W High Power Blue Led Chip , InGaN Chip Led Lamp Components 460nm Water clear
    • 1W High Power Blue Led Chip , InGaN Chip Led Lamp Components 460nm Water clear
  • 1W High Power Blue Led Chip , InGaN Chip Led Lamp Components 460nm Water clear

    Product Details:

    Place of Origin: China
    Brand Name: Double Light
    Certification: ISO9001:2008,Rosh
    Model Number: DL-HP10BC-1W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: USD 0.1-0.13/PCS
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: High Power LED Power (W): 1w
    Emitted Color: Blue Chip Material: InGaN
    Lens Type: Water Clear Peak Emission Wavelength: 460nm
    Forward Voltage @20ma: 2.80-4.0V Viewing Angle: 120 Deg
    Luminous Flux: 10-15lm



    1W High Power Blue Led Chip , InGaN Chip Led Lamp Components 460nm Water clear



    • Features:

    1. Very long operating life (up to100k hours).
    2. Available in white, green, blue, red, yellow.
    3. More energy efficient than incandescent and most halogen lamps.
    4. Low voltage DC operated.
    5. Cool beam, safe to the touch.
    6. Instant light (less than 100 ns).
    7. The product itself will remain within RoHS compliant Version.

    • Applications:

    1. Reading lights (car, bus, aircraft).
    2. Portable (flashlight, bicycle).
    3. Mini_accent/Uplighters/Downlighters/Orientation.
    4. Bollards/Security/Garden.
    5. Cove/Undershelf/Task.
    6. Automotive rear combination lamps.
    7. Traffic signaling/Beacons/ Rail crossing and Wayside.
    8. Indoor/Outdoor Commercial and Residential Architectural.
    9. Edge lit signs (Exit, point of sale).
    10. LCD Backlights/Light Guides.





    Absolute Maximum Ratings at Ta=25℃

    Parameters Symbol Rating Units
    Forward Current IF 350 mA
    PeakPulseCurrent (tp≤100μs, Duty cycle=0.25) I pulse 500 mA
    Reverse Voltage VR 5 V
    LED Junction Temperature Tj 125
    Operating Temperature Range Topr -40 to +80
    Storage Temperature Range Tstg -40 to +100
    Soldering Time at 260 ℃ (Max.) Tsol 5 Seconds


    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Viewing Angle [1] 1/2 --- 120 -- Deg IF=350mA
    Forward Voltage [2] VF 2.80 3.50 4.00 V IF=350mA
    Reverse Current IR --- --- 10 µA VR=5V
    Peak Emission Wavelength λp --- 462 --- nm IF=350mA
    Dominant Wavelength λd --- 464 --- nm IF =350mA
    Spectrum Radiation Bandwidth Δλ --- 20 --- nm IF=350mA
    Luminous Flux Фv 10 15 --- lm IF=350mA


    Notes:

    1. 2θ1/2 is the off axis angle from lamp centerline where the luminous intensity is 1/2 of the peak value. 2. Forward Voltage measurement tolerance: ±0.1V





    Company introduction:

    HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.

    1W High Power Blue Led Chip , InGaN Chip Led Lamp Components 460nm Water clear



    why choose DOUBLE LIGHT?

    1. Well-known chip material

    2. 99.99% gold wire bonding

    3. 3 years warranty

    4. Over 10 years work experience technical service team

    5. 24 hours service Professional sales team

    6. Free Sample is available

    7. Fast delivery

    8.100% QC inspection Before Shippment

    9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.
