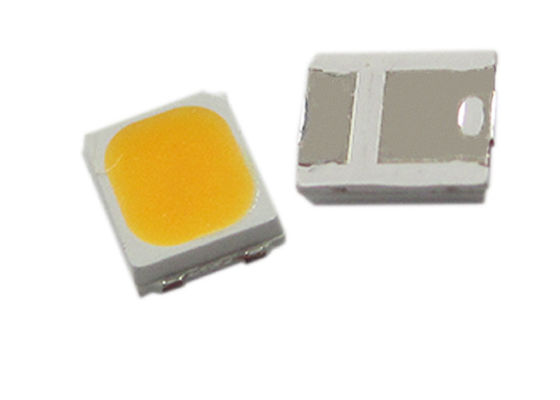

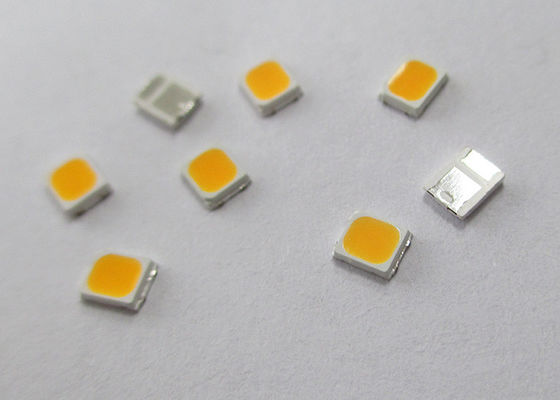

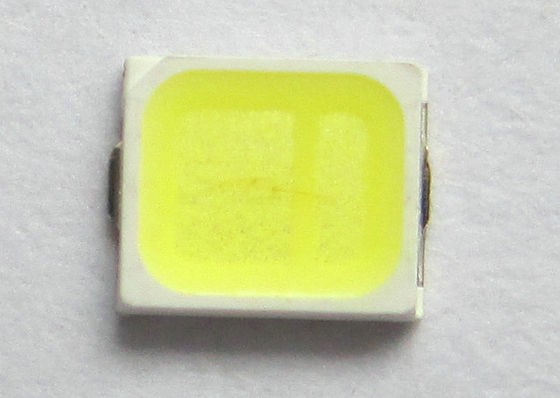

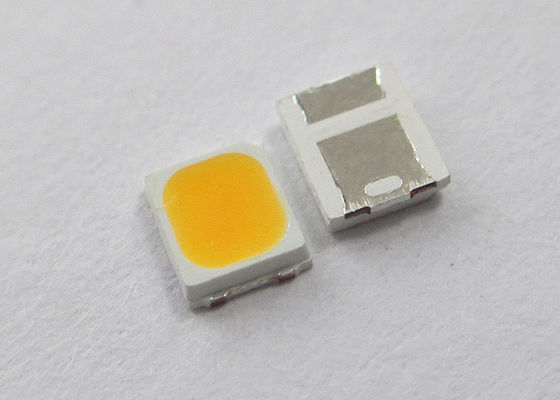

Warm White 2835 Chip LED Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight

Warm White 2835 Chip LED Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight

    • Warm White 2835 Chip LED  Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight
    • Warm White 2835 Chip LED  Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight
    • Warm White 2835 Chip LED  Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight
    • Warm White 2835 Chip LED  Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight
    • Warm White 2835 Chip LED  Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight
  • Warm White 2835 Chip LED  Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight

    Product Details:

    Place of Origin: China
    Brand Name: Double LIGHT
    Certification: ISO9001:2008,Rosh
    Model Number: DL-TOP2835W30-02W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 pcs
    Price: USD0.025-0.05/pcs
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 7-10 working days after payment received
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name:: 2835 Warm White SMD Chip LED Power Dissipation:: 210mW
    Forward Current:: 60mA Peak Emission Wavelength:: 3000K
    Viewing Angle: 120 Deg Luminous Flux: 22-30lm
    Forward Voltage: 3.0-3.8v Color Rendering Index: 70-75
    Peak Forward Current: 100mA Reverse Voltage: 5V

    DL-TOP2835W30-02W.pdf
    Warm White 2835 Chip LED Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight ​



    Features:


    1. P-LCC-2 package.
    2. White package.
    3. Optical indicator.
    4. Colorless clear window.
    5. Ideal for backlight and light pipe application.
    6. Inter reflector.
    7. Wide viewing angle.
    8. Suitable for automatic placement equipment.
    9. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
    10. Available on tape and reel (8mm Tape).
    11. The product itself will remain within RoHS compliant Version.


    Descriptions:

    1. The TOP2835 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.


    Applications:

    1. Automotive: Backlighting in dashboards and switches.
    2. Telecommunication: Indicator and backlight in telephone and fax
    3. Indicator and backlight for audio and video equipment.
    4. Indicator and backlight in office and family equipment.
    5. Flat backlight for LCD’s, switches and symbols.
    6. Light pipe application.
    7. General

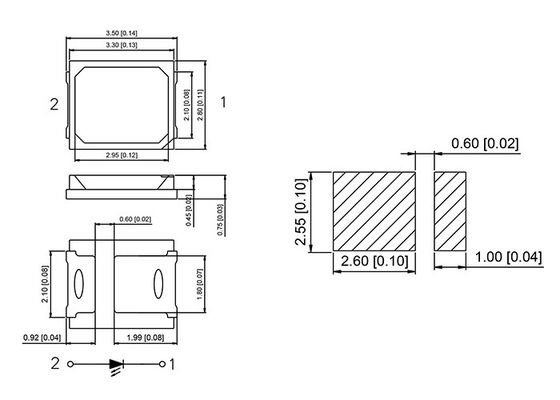

    Package Dimension:

    Warm White 2835 Chip LED  Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight

    Part No.Chip MaterialLens ColorSource Color
    DL-TOP2835W30-02WInGaNYellow DiffusedWarm White


    Notes:

    1. All dimensions are in millimeters.
    2. Tolerance is ± 0.10 mm (.004″) unless otherwise specified.
    3. Specifications are subject to change without notice.
    • Absolute Maximum Ratings at Ta=25



    ParametersSymbolMax.Unit
    Power DissipationPD210mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP100mA
    Continuous Forward CurrentIF60mA
    Reverse VoltageVR5V
    Electrostatic Discharge (HBM)ESD2000V
    Operating Temperature RangeTopr-40℃ to +80℃
    Storage Temperature RangeTstg-40℃ to +85℃
    Soldering TemperatureTsld260℃ for 5 Seconds


    Electrical Optical Characteristics at Ta=25


    ParametersSymbolMin.Typ.Max.UnitTest Condition
    Luminous Flux *Фv22 30lmIF=60mA (Note 1)

    Viewing Angle *



    2θ1/2---120---Deg

    IF=60mA (Note 2)



    Chromaticity Coordinatesx---0.45--- IF=60mA (Note 3)
    y---0.43---
    Color Rendering IndexRA7075---- IF=60mA
    Forward VoltageVF3.003.303.80VIF=60mA
    Reverse CurrentIR------10µAVR=5V


    Notes:

    1. Luminous Intensity Measurement allowance is ± 10%.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    3. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.
    • Typical Electrical / Optical Characteristics Curves

    (25℃ Ambient Temperature Unless Otherwise Noted)
    Warm White 2835 Chip LED  Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight
    Warm White 2835 Chip LED  Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight
    CIE Chromaticity Diagram:
    Warm White 2835 Chip LED  Bright Wiring 0.75mm SMD Chip LED with Plastic Housing for indicator and backlight
