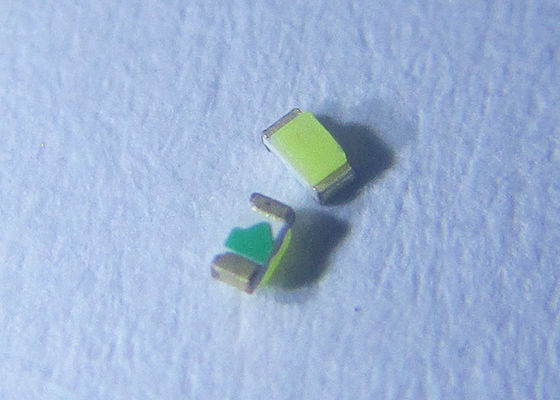

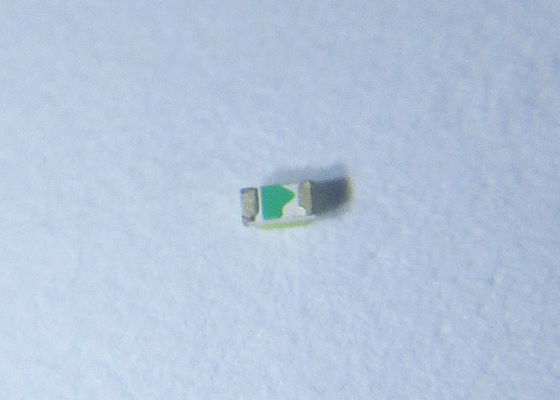

0.45mm Height 0402 Package White Chip LED SMD High Brightness

Name: 0.45mm Height 0402 Package White Chip LED SMD High Brightness
Brand: DOUBLE LIGHT
SKU: DL-PCB0402W80-1W120
Rating: 5 (113 reviews)

Large Image : 0.45mm Height 0402 Package White Chip LED SMD High Brightness

Product Details:

Place of Origin:	China (mainland)
Brand Name:	DOUBLE LIGHT
Certification:	ISO9001:2008/ROHS
Model Number:	DL-PCB0402W80-1W120

Payment & Shipping Terms:

Minimum Order Quantity:	3000pcs
Price:	Negotiated
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	10-15 working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	15,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:	0402 White SMD Chip LED	Model Number:	DL-PCB0402W80-1W120
Peak Forward Current:	100mA	Emitting Color:	White
Luminous Intensity:	400-500mcd	Size:	1.0mmx0.5mmx0.45mm
Forward Current:	25mA	Power Dissipation:	95mW
High Light:	led smd rgb , brightest smd led

Datasheet:DL-PCB0402W80-1W120.pdf

smd 0402 led chip 0.45mm height white high brightness smd led for LCD backlighting

Features:

Package in 8mm tape on 7" diameter reel.
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow solder process.
Mono-color type.
The product itself will remain within RoHS compliant Version.

Descriptions:

The 0402 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for miniature applications, etc.

Applications:

Automotive: Backlighting in dashboard and switch.
Telecommunication: Indicator and backlighting in telephone and fax.
Flat backlight for LCD, switch and symbol.
General use.

Package Dimension:

Part No.	Chip Material	Lens Color	Source Color
DL-PCB0402W80-1W120	InGaN	Yellow Diffused	White

Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.10mm (.004″) unless otherwise specified.
3. Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	95	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
Forward Current	IF	25	mA
Reverse Voltage	VR	5	V
Electrostatic Discharge (HBM)	ESD	400	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity *	IV	400	500	---	mcd	IF=20mA (Note 1)
Viewing Angle *	2θ1/2	---	130	---	Deg	IF=20mA (Note 2)
Chromaticity Coordinates	x	---	0.30	---		IF=20mA (Note 3)
Chromaticity Coordinates	y	---	0.31	---		IF=20mA (Note 3)
Forward Voltage	VF	2.80	3.40	3.80	V	IF=20mA
Reverse Current	IR	---	---	50	µA	V_R=5V

Notes:

Luminous Intensity Measurement allowance is ± 10%.
θ_1/2is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.

Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted) 0.45mm Height 0402 Package White Chip LED SMD High Brightness 1
CIE Chromaticity Diagram:

Reel Dimensions:

Carrier Tape Dimensions:
Loaded quantity 3000PCS per reel. 0.45mm Height 0402 Package White Chip LED SMD High Brightness 4

Why choose DOUBLE LIGHT?
1. Well-known chip material
2. 99.99% gold wire bonding
3. 3 years warranty
4. Over 10 years work experience technical service team
5. 24 hours service Professional sales team
6. Free Sample is available
7. Fast delivery
8.100% QC inspection Before Shippment
9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.
