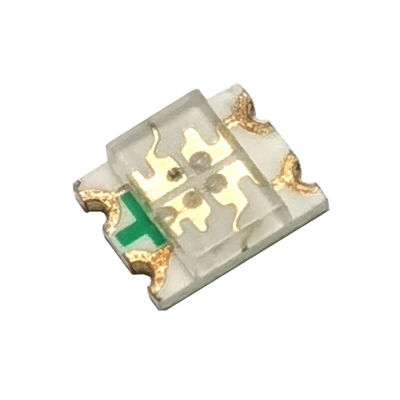

1.10mm Height 1210 Full - Color bright smd rgb led 3.5x2.8x1.9mm customized

1.10mm Height 1210 Full - Color bright smd rgb led 3.5x2.8x1.9mm customized

    • 1.10mm Height 1210 Full - Color bright smd rgb led 3.5x2.8x1.9mm customized
    • 1.10mm Height 1210 Full - Color bright smd rgb led 3.5x2.8x1.9mm customized
  • 1.10mm Height 1210 Full - Color bright smd rgb led 3.5x2.8x1.9mm customized

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-PCB1210RGBC

    Payment & Shipping Terms:

    Minimum Order Quantity: 2000pcs
    Price: US$ 0.01 per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: 1210 SMD Chip Led RGB Packag: 1210/3528 RGB
    Model Number: DL-PCB1210RGBC VF: 2.0-2.2 2.9-3.0 3.0-3.2
    Luminous Flux(lm): B:700 R:500 G:1000mcd Size: 3.5mm*2.8mm*1.9mm
    Loaded Quantity /Reel: 2000pcs Emitting Color: Red Blue Green
    Power: 0.2W Forward Current: 30mA
    Water Clear Flat Mold: Blue:470nm Red:630nm Green:520nm Chip Brand: Epistar

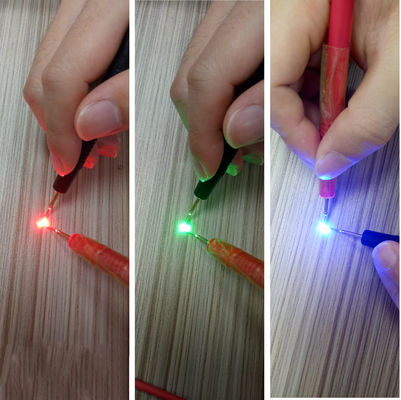

    1.10mm Height 1210 Full - Color bright smd rgb led 3.5x2.8x1.9mm customized



    1. More than 10 years experience in LED industrial.
    2. Biggest LED manufacturer by shipment in China,Asia.
    3. Have cooperated with such big companies as Samsung,Xiaomi,etc.
    4. High quality compliance with the international standard,pass CE, FCC, REACH, RoHS, UL.
    5. The most important thing is that our price is more competitive with our high quality.



    Package Dimension:



    Part No. Chip Material Lens Color Source Color
    DL-PCB1210RGBC

    InGaN

    Water Clear RGB













    •
    • Applications:
    • Automotive: Backlight in dashboards and switches.
    • Telecommunication: Indicator and backlight in telephone and fax.
    • Indicator and backlight for audio and video equipment.
    • Indicator and backlight in office and family equipment.
    • Flat backlight for LCD’s, switches and symbols.
    • Light pipe application.
    • General use.
    • Absolute Maximum Ratings at Ta=25
    • Parameters Symbol MAX Unit
      Power Dissipation PD Hyper Red 60 mW
      Pure Green 95
      Blue 95

      Peak Forward Current

      (1/10 Duty Cycle, 0.1ms Pulse Width)

      IFP Hyper Red 100 mA
      Pure Green 100
      Blue 100
      Continuous Forward Current IF Hyper Red 25 mA
      Pure Green 25
      Blue 25
      Reverse Voltage VR 5 V
      Electrostatic Discharge (HBM) ESD Hyper Red 2000 V
      Pure Green 1000
      Blue 1000
      Operating Temperature Range Topr -40℃ to +85℃
      Storage Temperature Range Tstg -40℃ to +100℃
      Soldering Temperature Tsld 260℃ for 5 Seconds









      Electrical Optical Characteristics at Ta=25

      Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
      Luminous Intensity IV Hyper Red 120 180 --- mcd

      IF=20mA

      (Note 1)

      Pure Green 300 500 ---
      Blue 80 140 ---
      Viewing Angle 1/2 Hyper Red --- 120 --- Deg

      IF=20mA

      (Note 2)

      Pure Green --- 120 ---
      Blue --- 120 ---
      Peak Emission Wavelength λp Hyper Red --- 632 --- nm

      IF=20mA

      (Measurement

      @Peak)

      Pure Green --- 520 ---
      Blue --- 468 ---
      Dominant Wavelength λd Hyper Red --- 624 --- nm

      IF=20mA

      (Note 3)

      pure Green --- 525 ---
      Blue --- 470 ---
      Spectral Line Half-Width △λ Hyper Red --- 20 --- nm IF=20mA
      Pure Green --- 35 ---
      Blue --- 25 ---
      Forward Voltage VF Hyper Red 1.80 2.20 2.40 V IF=20mA
      Pure Green 3.00 3.30 3.80
      Blue 3.00 3.30 3.80
      Reverse Current IR Hyper Red --- --- 10 µA VR=5V
      Pure Green 50
      Blue 50



      Notes:

    • Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
    • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
    • Package Dimension:1.10mm Height 1210 Full - Color bright smd rgb led 3.5x2.8x1.9mm customized
    • Reliability Test Items And Conditions (Per Chip):
    • The reliability of products shall be satisfied with items listed below:

      Confidence level: 90%.

      LTPD: 10%.

      1) Test Items and Results:

      No. Test Item Test Hours/Cycles Test Conditions Sample Size Ac/Re
      1 Resistance to Soldering Heat 6 Min

      Tsld=260±5℃,

      Min. 5sec

      25pcs 0/1
      2 Thermal Shock 300 Cycles

      H: +100℃ 5min ∫ 10 sec

      L: -10℃ 5min

      25pcs 0/1
      3 Temperature Cycle 300 Cycles

      H: +100℃ 15min ∫ 5min

      L: -40℃ 15min

      25pcs 0/1
      4 High Temperature Storage 1000Hrs. Temp: 100℃ 25pcs 0/1
      5 DC Operating Life 1000Hrs. IF=20mA 25pcs 0/1
      6 Low Temperature Storage 1000Hrs. Temp: -40℃ 25pcs 0/1
      7 High Temperature/ High Humidity 1000Hrs. 85℃/85%RH 25pcs 0/1



      2) Criteria for Judging the Damage:

      Item Symbol Test Conditions Criteria for Judgment
      Min Max
      Forward Voltage VF IF=20mA --- F.V.*)×1.1
      Reverse Current IR VR=5V --- F.V.*)×2.0
      Luminous Intensity IV IF=20mA F.V.*)×0.7 ---





    • Features:
    • Package in 8mm tape on 7” diameter reel.
    • Compatible with automatic placement equipment.
    • Compatible with infrared and vapor phase reflow solder process.
    • Full-Color Type.
    • The product itself will remain within RoHS compliant Version.



    • Descriptions:
    • The PCB1210 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
    • Besides, lightweight makes them ideal for miniature applications .etc.



    • Applications:
    • Automotive: Backlighting in dashboard and switch.
    • Telecommunication: Indicator and backlighting in telephone and fax.
    • Flat backlight for LCD, switch and symbol.
    • Indoor signboard use.
    • General use
    • Absolute Maximum Ratings at Ta=25
    Parameters Symbol Emitting Color Max. Unit
    Power Dissipation PD Hyper Red 60 mW
    Pure Green 95
    Blue 95

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP Hyper Red 100 mA
    Pure Green 100
    Blue 100
    Continuous Forward Current IF Hyper Red 25 mA
    Pure Green 25
    Blue 25
    Reverse Voltage VR 5 V
    Electrostatic Discharge (HBM) ESD Hyper Red 2000 V
    Pure Green 400
    Blue 400
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds

























    Electrical Optical Characteristics at Ta=25

    Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
    Luminous Intensity IV Hyper Red 50 70 --- mcd

    IF=20mA

    (Note 1)

    Pure Green 225 260 ---
    Blue 60 100 ---
    Viewing Angle 1/2 Hyper Red --- 120 --- Deg

    IF=20mA

    (Note 2)

    Pure Green --- 120 ---
    Blue --- 120 ---
    Peak Emission Wavelength λp Hyper Red --- 632 --- nm IF=20mA
    Pure Green --- 520 ---
    Blue --- 468 ---
    Dominant Wavelength λd Hyper Red --- 624 --- nm

    IF=20mA

    (Note 3)

    Pure Green --- 525 ---
    Blue --- 470 ---
    Spectral Line Half-Width △λ Hyper Red --- 20 --- nm IF=20mA
    Pure Green --- 35 ---
    Blue --- 25 ---
    Forward Voltage VF Hyper Red 1.60 2.00 2.40 V IF=20mA
    Pure Green 2.80 3.40 3.80
    Blue 2.80 3.40 3.80
    Reverse Current IR Hyper Red --- --- 10 µA VR=5V
    Pure Green 50
    Blue 50



    • Reliability Test Items And Conditions:

    The reliability of products shall be satisfied with items listed below:

    Confidence level: 90%.

    LTPD: 10%.

    1) Test Items and Results:

    No. Test Item Test Hours/Cycles Test Conditions Sample Size Ac/Re
    1 Resistance to Soldering Heat 6 Min

    Tsld=260±5℃,

    Min. 5sec

    25pcs 0/1
    2 Thermal Shock 300 Cycles

    H: +100℃ 5min ∫ 10 sec

    L: -10℃ 5min

    25pcs 0/1
    3 Temperature Cycle 300 Cycles

    H: +100℃ 15min ∫ 5min

    L: -40℃ 15min

    25pcs 0/1
    4 High Temperature Storage 1000Hrs. Temp: 100℃ 25pcs 0/1
    5 DC Operating Life 1000Hrs. IF=20mA 25pcs 0/1
    6 Low Temperature Storage 1000Hrs. Temp: -40℃ 25pcs 0/1
    7 High Temperature/ High Humidity 1000Hrs. 85℃/85%RH 25pcs 0/1



    2) Criteria for Judging the Damage:

    Item Symbol Test Conditions Criteria for Judgment
    Min Max
    Forward Voltage VF IF=20mA --- F.V.*)×1.1
    Reverse Current IR VR=5V --- F.V.*)×2.0
    Luminous Intensity IV IF=20mA F.V.*)×0.7 ---
    • Package Dimension:1.10mm Height 1210 Full - Color bright smd rgb led 3.5x2.8x1.9mm customized
    • Reel Dimensions
    • 1.10mm Height 1210 Full - Color bright smd rgb led 3.5x2.8x1.9mm customized

    Carrier Tape Dimensions

    Loaded quantity 2000PCS per reel.

    1.10mm Height 1210 Full - Color bright smd rgb led 3.5x2.8x1.9mm customized

    Notes:

    • Luminous Intensity Measurement allowance is ± 10%.
    • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.





    1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
