Detailed Product Description

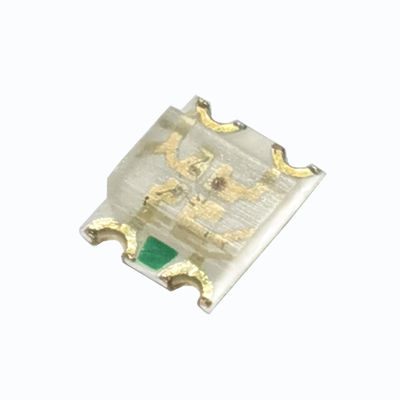

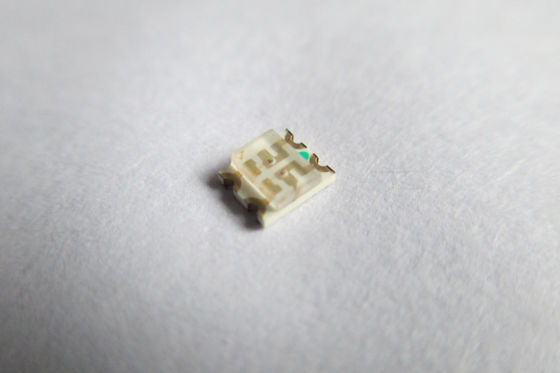

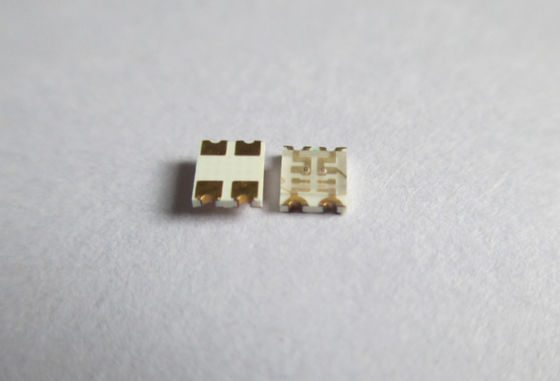

Product Name: Bi-Color LEDs Package: SMD LED
Emitted Color: Hyper Red & Yellow Green Peak Emission Wavelength: 640nm & 572nm
Chip Material: AlGaInP & GaP Lens Type: Water Clear
Forward Voltage @20ma: Typ:2.0/2.2v Viewing Angle: 120 Deg
High Light:

common anode bi color led

,

dual colour led



Package Size 1.90mm×1.60mm Smt Bi Colour Led Multi - Color Chip Led

Features:

  1. Package in 8mm tape on 7″ diameter reel.
  2. 1.90mm×1.60mm SMT LED, 0.80mm thickness.
  3. Low power consumption.
  4. Compatible with automatic placement equipment.
  5. Compatible with infrared and vapor phase reflow solder process.
  6. Bi-color (Multi-color) type.
  7. Colors: Hyper Red & Super Yellow Green.
  8. The product itself will remain within RoHS compliant Version.



Descriptions:

  1. The 0706 SMD LED is much smaller than lead frame type components, thus enable smaller higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. Besides, light Weight makes them ideal for miniature applications, etc.
  3. The series is specially designed for applications requiring higher brightness.
  4. The SMD LEDs are available with different colors, intensities.



Applications:

  1. Automotive: Backlighting in dashboard and switch.
  2. Telecommunication: Indicator and backlighting in telephone and fax.
  3. Flat backlight for LCD, switch and symbol.
  4. Circuit board.
  5. Status indicators.
  6. Commercial use.
  7. Advertising Signs.
  8. Computer.
  9. TV set.
  10. Monitor.
  11. General use.







Part No. Chip Material Lens Color Source Color
DL-PCB0706SRYGC R GaAlAs Water Clear Super Red
G GaP Yellow Green



















Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Emitting Color Max. Unit
Power Dissipation PD Super Red 60 mW
Yellow Green 72

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP Super Red 100 mA
Yellow Green 100
Continuous Forward Current IF Super Red 25 mA
Yellow Green 30
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 2000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Intensity IV Super Red 30 60 --- mcd

IF=20mA

(Note 1)
Yellow Green 16 30 ---
Viewing Angle 2θ1/2 Super Red --- 120 --- Deg

IF=20mA

(Note 2)
Yellow Green --- 120 ---
Peak Emission Wavelength λp Super Red --- 660 --- nm

IF=20mA

(Measurement

@Peak)
Yellow Green --- 575 ---
Dominant Wavelength λd Super Red --- 640 --- nm

IF=20mA

(Note 3)
Yellow Green --- 573 ---
Spectral Line Half-Width △λ Super Red --- 45 --- nm IF=20mA
Yellow Green --- 30 ---
Forward Voltage VF Super Red 1.80 2.20 2.80 V IF=20mA
Yellow Green 1.80 2.20 2.80
Reverse Current IR Super Red --- --- 10 µA VR=5V
Yellow Green





Bi-Color LED Package Dimension:

Package Size 1.90mm×1.60mm Smt Bi Colour Led Multi - Color Chip Led 0

Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)

Super Red:

Package Size 1.90mm×1.60mm Smt Bi Colour Led Multi - Color Chip Led 1

Yellow Green:

Package Size 1.90mm×1.60mm Smt Bi Colour Led Multi - Color Chip Led 2



Reel Dimensions:

Package Size 1.90mm×1.60mm Smt Bi Colour Led Multi - Color Chip Led 3





Carrier Tape Dimensions:

Loaded quantity 2000/3000PCS per reel.

Package Size 1.90mm×1.60mm Smt Bi Colour Led Multi - Color Chip Led 4
