Product Name: | 0603 Package Hyper Red And Super Yellow Green Bi-color (Multi-color) Chip LED | Package: | 0603 Package SMD LED |
---|---|---|---|
Emitted Color: | Hyper Red & Super Yellow Green | Product Number: | Hyper Red And Super Yellow Green Bi-color |
Color Temperature: | Red:632nm,Super Yellow Green:575nm | Lens Type: | Water Clear |
Forward Voltage @20ma: | Red:1.8-2.8V, Super Yellow Green:1.8-2.8V | Viewing Angle: | Red:120 Deg, Super Yellow Green:120 Deg |
High Light: | common anode bi color led,bi colour led |

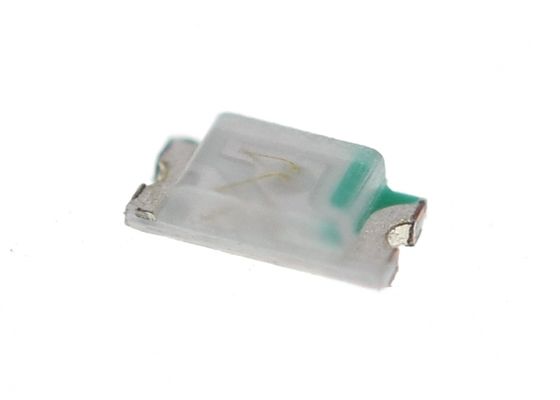

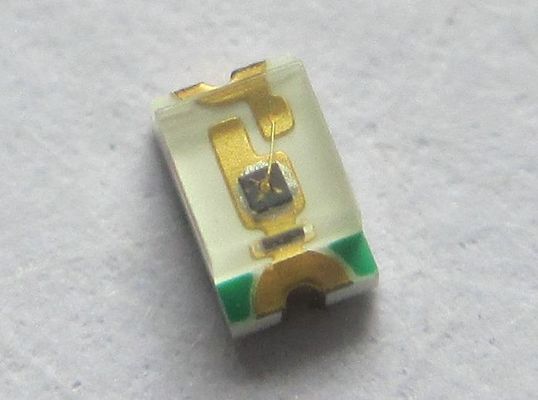

0.60Mm Height 0603 Package Multi color Chip LED Hyper Red and Super Yellow Green
This is our 0.60mm Height 0603 Package Hyper Red and Super Yellow Green Bi-color (Multi-color) Chip LED,its emitting color is able Bi-color and Multi-color. The SMD 0603 LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Part No. | Chip Material | Lens Color | Source Color | |
DL-PCBE0603SRYGC | R | AlGaInP | Water Clear | Hyper Red |
G | AlGaInP | Super Yellow Green |
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.10mm (.004″) unless otherwise specified.
3. Specifications are subject to change without notice.
Features:
Descriptions:
Applications:
Absolute Maximum Ratings at Ta=25℃
Parameters | Symbol | Emitting Color | Max. | Unit |
Power Dissipation | PD | Hyper Red | 65 | mW |
Super Yellow Green | 75 | |||
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | Hyper Red | 100 | mA |
Super Yellow Green | 100 | |||
Continuous Forward Current | IF | Hyper Red | 25 | mA |
Super Yellow Green | 30 | |||
Reverse Voltage | VR | 5 | V | |
Electrostatic Discharge (HBM) | ESD | 2000 | V | |
Operating Temperature Range | Topr | -40℃ to +80℃ | ||
Storage Temperature Range | Tstg | -40℃ to +85℃ | ||
Soldering Temperature | Tsld | 260℃ for 5 Seconds |
Electrical Optical Characteristics at Ta=25℃
Parameters | Symbol | Emitting Color | Min. | Typ. | Max. | Unit | Test Condition |
Luminous Intensity | IV | Hyper Red | 50 | 100 | --- | mcd |
IF=20mA (Note 1) |
Super Yellow Green | 50 | 80 | --- | ||||
Viewing Angle | 2θ1/2 | Hyper Red | --- | 120 | --- | Deg |
IF=20mA (Note 2) |
Super Yellow Green | --- | 120 | --- | ||||
Peak Emission Wavelength | λp | Hyper Red | --- | 632 | --- | nm | IF=20mA |
Super Yellow Green | --- | 575 | --- | ||||
Dominant Wavelength | λd | Hyper Red | --- | 624 | --- | nm |
IF=20mA (Note 3) |
Super Yellow Green | --- | 573 | --- | ||||
Spectral Line Half-Width | △λ | Hyper Red | --- | 20 | --- | nm | IF=20mA |
Super Yellow Green | --- | 20 | --- | ||||
Forward Voltage | VF | Hyper Red | 1.80 | 2.20 | 2.80 | V | IF=20mA |
Super Yellow Green | 1.80 | 2.20 | 2.80 | ||||
Reverse Current | IR | Hyper Red | --- | --- | 10 | µA | VR=5V |
Super Yellow Green |
Notes:
1. Luminous Intensity Measurement allowance is ± 10%.
2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
Hyper Red:
Super Yellow Green:
Reliability Test Items And Conditions:
The reliability of products shall be satisfied with items listed below:
Confidence level: 90%.
LTPD: 10%.
1) Test Items and Results:
No. | Test Item | Test Hours/Cycles | Test Conditions | Sample Size | Ac/Re |
1 | Resistance to Soldering Heat | 6 Min |
Tsld=260±5℃, Min. 5sec |
25pcs | 0/1 |
2 | Thermal Shock | 300 Cycles |
H: +100℃ 5min ∫ 10 sec L: -10℃ 5min |
25pcs | 0/1 |
3 | Temperature Cycle | 300 Cycles |
H: +100℃ 15min ∫ 5min L: -40℃ 15min |
25pcs | 0/1 |
4 | High Temperature Storage | 1000Hrs. | Temp: 100℃ | 25pcs | 0/1 |
5 | DC Operating Life | 1000Hrs. | IF=20mA | 25pcs | 0/1 |
6 | Low Temperature Storage | 1000Hrs. | Temp: -40℃ | 25pcs | 0/1 |
7 | High Temperature/ High Humidity | 1000Hrs. | 85℃/85%RH | 25pcs | 0/1 |
2) Criteria for Judging the Damage:
Item | Symbol | Test Conditions | Criteria for Judgment | |
Min | Max | |||
Forward Voltage | VF | IF=20mA | --- | F.V.*)×1.1 |
Reverse Current | IR | VR=5V | --- | F.V.*)×2.0 |
Luminous Intensity | IV | IF=20mA | F.V.*)×0.7 | --- |
*) F.V.: First Value.
Reel Dimensions:
Carrier Tape Dimensions:
Loaded quantity 4000 PCS Per reel.
Please read the following notes before using the product:
1. Over-current-proof
Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.
2.3 The LEDs should be used within a year.
2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.
2.5 The LEDs should be used within 168 hours (7 days) after opening the package.
2.6 If the moisture adsorbent material (silica gel) has fabled away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours.
3. Soldering Condition
3.1 Pb-free solder temperature profile.
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
4. Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.
5. Repairing
Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
6. Caution in ESD
Static Electricity and surge damages the LED. It is recommended to use a wrist band or anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be properly grounded.
