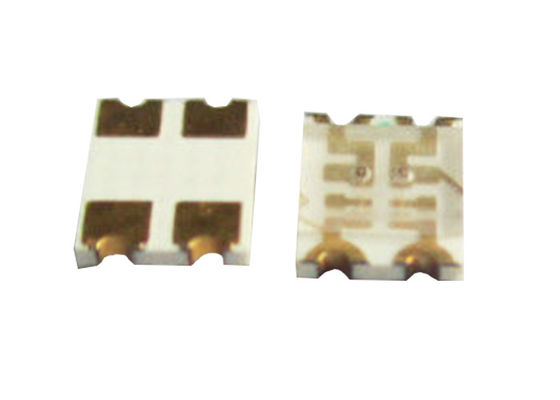

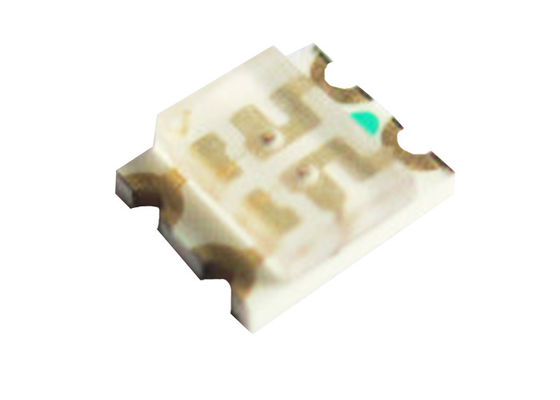

1.10mm Height 1210 Package Multi Color LED Diode Light Weight For Miniature Applications

Name: 1.10mm Height 1210 Package Multi Color LED Diode Light Weight For Miniature Applications
Brand: DOUBLE LIGHT
SKU: DL-PCB1210RGC
Rating: 4.8 (139 reviews)

Large Image : 1.10mm Height 1210 Package Multi Color LED Diode Light Weight For Miniature Applications

Product Details:

Place of Origin:	China (mainland)
Brand Name:	DOUBLE LIGHT
Certification:	ISO9001:2008/ROHS
Model Number:	DL-PCB1210RGC

Payment & Shipping Terms:

Minimum Order Quantity:	3000PCS/Reel
Price:	Negotiated
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	10-15 working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	15,000,000pcs per Day

Contact Now

Detailed Product Description

Type:	Bi-color	Colors:	Super Red & Yellow Green
Applications:	Flat Backlight For LCD, Switch And Symbol	Lens Color:	Water Clear
Reverse Voltage:	5V	Electrostatic Discharge (HBM):	2000V
High Light:	common anode bi color led , dual colour led

1.10mm Height 1210 Package Bi-color (Multi-color) Chip LED red and green bi color led

DL-PCB1210RGC.pdf

Features:

Package in 8mm tape on 7″diameter reel.
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow solder process.
Bi-color type.
Colors: Super Red & Yellow Green.
The product itself will remain within RoHS compliant Version.

Descriptions:

The 1210 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for miniature applications, etc.

Applications:

Automotive: Backlighting in dashboard and switch.
Telecommunication: Indicator and backlighting in telephone and fax.
Flat backlight for LCD, switch and symbol.
General use.

Package Dimension:

Part No.	Chip Material		Lens Color	Source Color
DL-PCB1210RGC	R	GaAlAs	Water Clear	Super Red
DL-PCB1210RGC	G	GaP	Water Clear	Yellow Green

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Emitting Color	Max.	Unit
Power Dissipation	PD	Super Red	60	mW
		Yellow Green	72
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	Super Red	100	mA
		Yellow Green	100
Continuous Forward Current	IF	Super Red	25	mA
		Yellow Green	30
Reverse Voltage	VR	5		V
Electrostatic Discharge (HBM)	ESD	2000		V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Emitting Color	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	IV	Super Red	15	35	---	mcd	IF=20mA (Note 1)
		Yellow Green	16	30	---
Viewing Angle	2θ_1/2	Super Red	---	120	---	Deg	IF=20mA (Note 2)
		Yellow Green	---	120	---
Peak Emission Wavelength	λp	Super Red	---	660	---	nm	IF=20mA (Measurement @Peak)
		Yellow Green	---	575	---
Dominant Wavelength	λd	Super Red	---	640	---	nm	IF=20mA (Note 3)
		Yellow Green	---	573	---
Spectral Line Half-Width	△λ	Super Red	---	45	---	nm	IF=20mA
		Yellow Green	---	30	---
Forward Voltage	VF	Super Red	1.80	2.20	2.80	V	IF=20mA
		Yellow Green	1.80	2.20	2.80
Reverse Current	IR	Super Red	---	---	10	µA	V_R=5V
		Yellow Green

Notes:
1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE
eye-response curve.
2. θ 1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single
wavelength which defines the color of the device.

Typical Electrical / Optical Characteristics Curves(25℃ Ambient Temperature Unless Otherwise Noted)

Super Red:

Yellow Green:

Reel Dimensions:

Carrier Tape Dimensions:

Loaded quantity 2000/3000PCS per reel.
