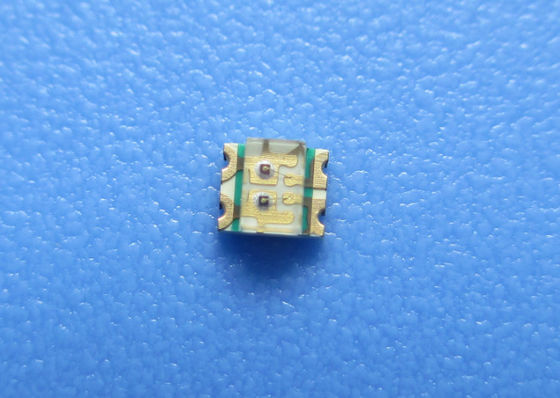

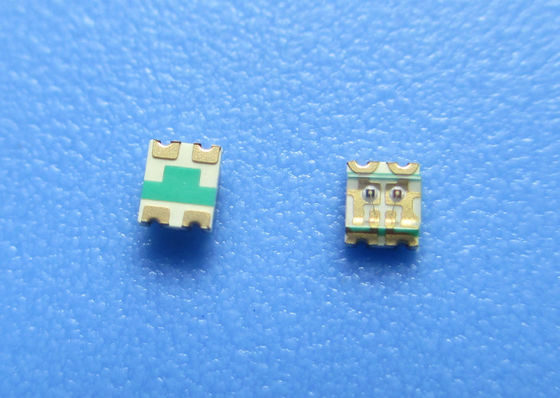

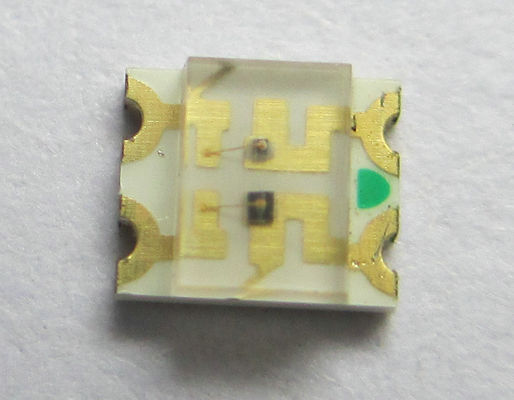

1206 smd led Bi Color Red Green high power smd led 1210 3.2 *2.7 *1.1 mm

1206 Bi Color Red Green SMD LED Factory direct sale 1210 Bi Color Red Green 3.2 *2.7 *1.1 mm

1. More than 10 years experience in LED industrial.
2. Biggest LED manufacturer by shipment in China,Asia.
3. Have cooperated with such big companies as Samsung,Xiaomi,etc.
4. High quality compliance with the international standard,pass CE, FCC, REACH, RoHS, UL.
5. The most important thing is that our price is more competitive with our high quality.

Package Dimension:

​

• Features:

• Package in 8mm tape on 7″diameter reel.
• Compatible with automatic placement equipment.
• Compatible with infrared and vapor phase reflow solder process.
• Bi-color type.
• Colors: Super Red & Yellow Green.
• The product itself will remain within RoHS compliant Version.

• Descriptions:

• The 1210 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
• Besides, lightweight makes them ideal for miniature applications, etc.

• Applications:

• Automotive: Backlighting in dashboard and switch.
• Telecommunication: Indicator and backlighting in telephone and fax.
• Flat backlight for LCD, switch and symbol.
• General use.
• Package Dimension:
• Absolute Maximum Ratings at Ta=25℃

• Parameters	Symbol	Emitting Color	Max.	Unit
  Power Dissipation	PD	Super Red	60	mW
  		Yellow Green	72
  Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	Super Red	100	mA
  		Yellow Green	100
  Continuous Forward Current	IF	Super Red	25	mA
  		Yellow Green	30
  Reverse Voltage	VR	5		V
  Electrostatic Discharge (HBM)	ESD	2000		V
  Operating Temperature Range	Topr	-40℃ to +80℃
  Storage Temperature Range	Tstg	-40℃ to +85℃
  Soldering Temperature	Tsld	260℃ for 5 Seconds

































  Electrical Optical Characteristics at Ta=25℃

  Parameters	Symbol	Emitting Color	Min.	Typ.	Max.	Unit	Test Condition
  Luminous Intensity	IV	Super Red	15	35	---	mcd	IF=20mA (Note 1)
  		Yellow Green	16	30	---
  Viewing Angle	2θ1/2	Super Red	---	120	---	Deg	IF=20mA (Note 2)
  		Yellow Green	---	120	---
  Peak Emission Wavelength	λp	Super Red	---	660	---	nm	IF=20mA (Measurement @Peak)
  		Yellow Green	---	575	---
  Dominant Wavelength	λd	Super Red	---	640	---	nm	IF=20mA (Note 3)
  		Yellow Green	---	573	---
  Spectral Line Half-Width	△λ	Super Red	---	45	---	nm	IF=20mA
  		Yellow Green	---	30	---
  Forward Voltage	VF	Super Red	1.80	2.20	2.80	V	IF=20mA
  		Yellow Green	1.80	2.20	2.80
  Reverse Current	IR	Super Red	---	---	10	µA	VR=5V
  		Yellow Green



  Notes:

• Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
• θ_1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
• The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
• Typical Electrical / Optical Characteristics Curves

• (25℃ Ambient Temperature Unless Otherwise Noted)

  Super Red:Yellow Green:

• Reliability Test Items And Conditions:

• The reliability of products shall be satisfied with items listed below:

  Confidence level: 90%.

  LTPD: 10%.

  1) Test Items and Results:

  No.	Test Item	Test Hours/Cycles	Test Conditions	Sample Size	Ac/Re
  1	Resistance to Soldering Heat	6 Min	Tsld=260±5℃, Min. 5sec	25pcs	0/1
  2	Thermal Shock	300 Cycles	H: +100℃ 5min ∫ 10 sec L: -10℃ 5min	25pcs	0/1
  3	Temperature Cycle	300 Cycles	H: +100℃ 15min ∫ 5min L: -40℃ 15min	25pcs	0/1
  4	High Temperature Storage	1000Hrs.	Temp: 100℃	25pcs	0/1
  5	DC Operating Life	1000Hrs.	IF=20mA	25pcs	0/1
  6	Low Temperature Storage	1000Hrs.	Temp: -40℃	25pcs	0/1
  7	High Temperature/ High Humidity	1000Hrs.	85℃/85%RH	25pcs	0/1



  2) Criteria for Judging the Damage:

  Item	Symbol	Test Conditions	Criteria for Judgment
  			Min	Max
  Forward Voltage	VF	IF=20mA	---	F.V.*)×1.1
  Reverse Current	IR	VR=5V	---	F.V.*)×2.0
  Luminous Intensity	IV	IF=20mA	F.V.*)×0.7	---



• Reel Dimensions:

  Carrier Tape Dimensions:

  Loaded quantity 2000PCS per reel.

•



Notes:

1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
2. θ_1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
