Infrared Sensor SMD Led Chip , 0.95mm SMT Led Lamp Chip Diode Light PCB Mounted

Name: Infrared Sensor SMD Led Chip , 0.95mm SMT Led Lamp Chip Diode Light PCB Mounted
Brand: DOUBLE LIGHT
SKU: DL-PCB0603IRCA-3IR60
Price: 0.011 USD
Availability: InStock
Rating: 4.9 (113 reviews)

Large Image : Infrared Sensor SMD Led Chip , 0.95mm SMT Led Lamp Chip Diode Light PCB Mounted

Product Details:

Place of Origin:	China (mainland)
Brand Name:	DOUBLE LIGHT
Certification:	ISO9001:2008/ROHS
Model Number:	DL-PCB0603IRCA-3IR60

Payment & Shipping Terms:

Minimum Order Quantity:	4,000pcs
Price:	US$ 0.011-0.020 per unit (Pieces) depend on the quantity
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	7-10 working days after payment received
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	4,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:	0603 Package Infrared Chip LED	Emitted Color:	Infrared
Lens Type:	Water Clear	Forward Voltage @20ma:	0.8-1.8v
Radiant Intensity:	30-50mW/sr	Size:	1.6mmX0.8mmX0.95mm
Package:	4000 Pieces Per Reel In 8mm Tape On 7″ Diameter Reel	Chip Material:	GaAlAs
Power Dissipation:	110mW	Viewing Angle:	60Deg
High Light:	high power smd led , brightest smd led

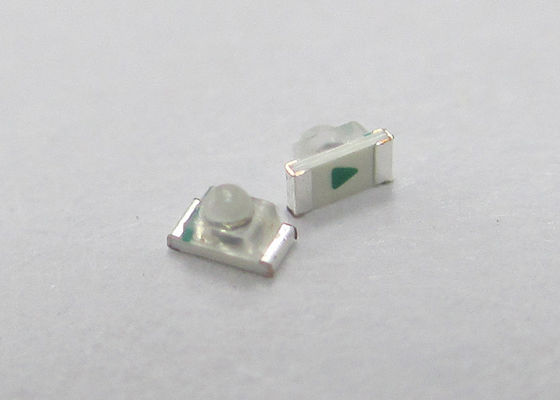

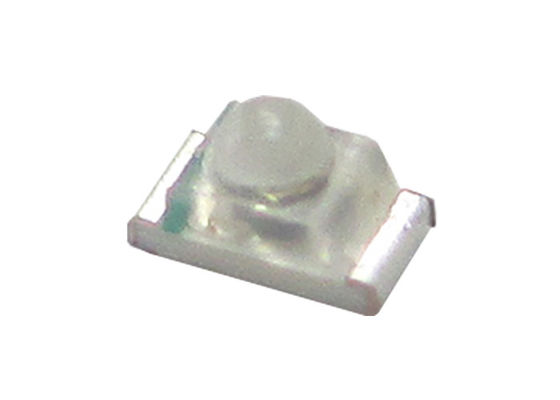

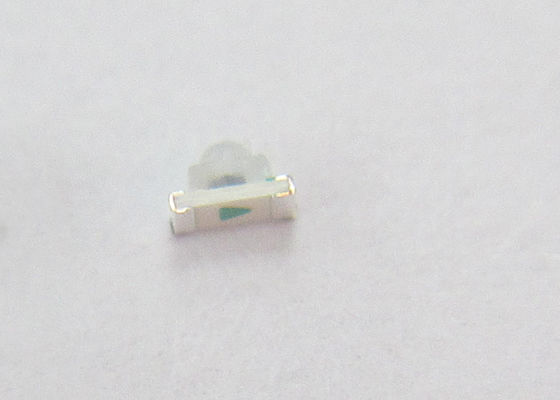

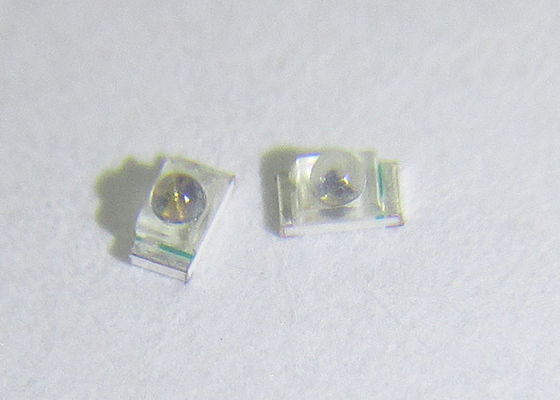

This is 0.95mm Infrared SMD led Chip LED smd led 0603 package SMT led lamp chip Diode Light PCB mounted infrared sensor

Datasheet:DL-PCB0603IRCA-3IR60.pdf

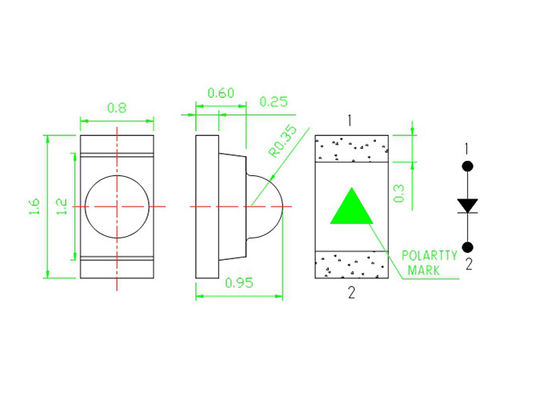

Package Dimension:

Infrared Sensor SMD Led Chip , 0.95mm SMT Led Lamp Chip Diode Light PCB Mounted 0

Part No.	Chip Material	Lens Color	Source Color
DL-PCB0603IRCA-3IR60	GaAlAs	Water Clear	Infrared

Notes:

All dimensions are in millimeters (inches).
Tolerance is ± 0.10mm (.004″) unless otherwise specified.
Specifications are subject to change without notice.

Features:

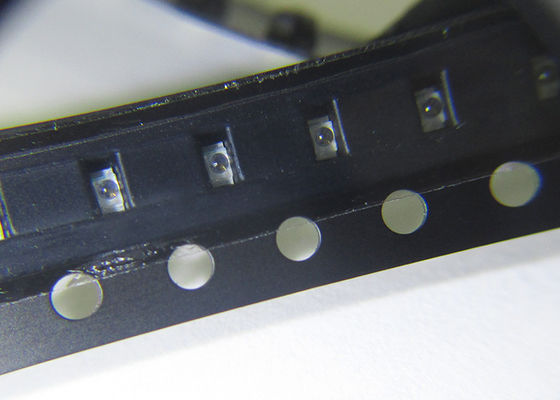

Package in 8mm tape on 7" diameter reel.
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow solder process.
Mono-color type.
All devices, equipment and machinery must be electrically grounded.
The product itself will remain within RoHS compliant Version.

Descriptions:

The 0603IR is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with flat top view lens.
The device is spectrally matched with photodiode and phototransistor.

Applications:

PCB mounted infrared sensor.
Infrared emitting for miniature light barrier.
Floppy disk drive.
Optoelectronic switch.
Smoke detector.

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	110	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	1.00	A
Forward Current	IF	50	mA
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +100℃
Lead Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Radiant Intensity *	Ee	---	10.0	---	mW/sr	IF=20mA
Radiant Intensity *	Ee	30.0	---	50.0	mW/sr	IF=100mA (Pulse Width≤100µs, Duty≤1%)
Viewing Angle *	2θ 1/2	---	60	---	Deg	IF=20mA (Note 2)
Peak Emission Wavelength	λp	---	940	---	nm	IF=20mA (Note 3)
Spectral Bandwidth	△λ	---	50	---	nm	IF=20mA
Forward Voltage	VF	0.80	1.20	1.50	V	IF=20mA
Forward Voltage	VF	1.40	1.60	1.80	V	IF=100mA (Pulse Width≤100µs, Duty≤1%)
Reverse Current	IR	---	---	10	µA	V_R=5V

Notes:

Luminous (Radiant) Intensity Measurement allowance is ± 10%.
θ_1/2is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
The dominant wavelength (λp) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
