Super Yellow Color SMD Chip LED Diode 75mW AlGaInP Chip Material Indicator Applied

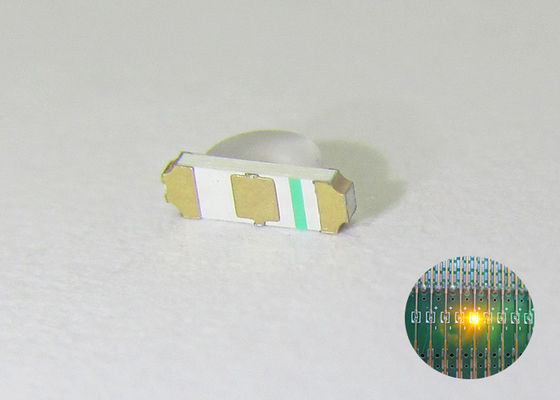

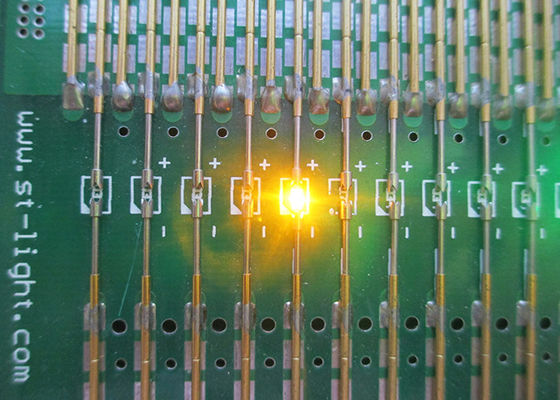

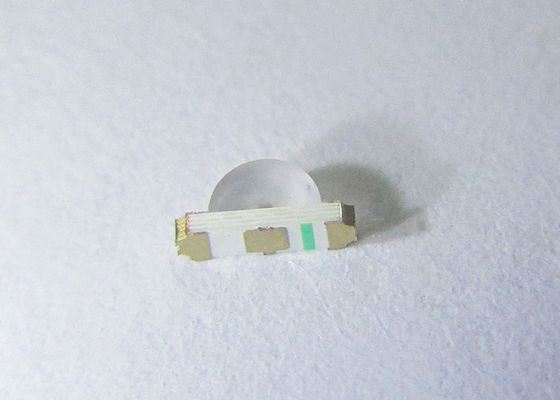

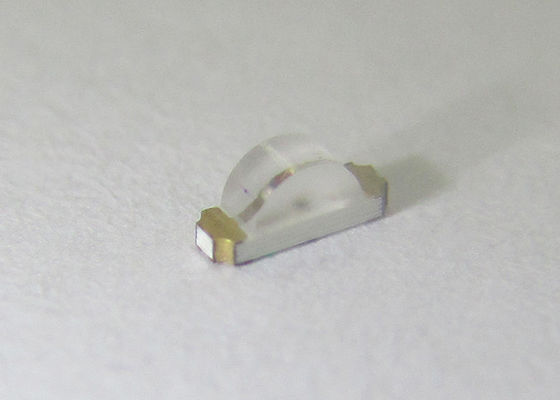

Large Image : Super Yellow Color SMD Chip LED Diode 75mW AlGaInP Chip Material Indicator Applied

Product Details:

Place of Origin:	China (mainland)
Brand Name:	DOUBLE LIGHT
Certification:	ISO9001:2008/ROHS
Model Number:	DL-PCB1204UYC-3UY120

Payment & Shipping Terms:

Minimum Order Quantity:	4000pcs
Price:	US$ 0.03-0.033 per unit (Pieces)
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	5-7 working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	15,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:	1204 SMD Chip Led	Package:	8mm Tape On 7″ Diameter Reel
Peak Emission Wavelength:	592nm	Chip Material:	AlGaInP
Lens Type:	Water Clear	Forward Voltage @20ma:	2.0-2.8v
Luminous Intensity:	450-550mcd	Viewing Angle:	120 Deg
Dominant Wavelength:	589nm	Source Color:	Super Yellow
Highlight:	high power smd led , brightest smd led

592nm pcb led light super yellow color smd led diode 75mW pcb led light panel smd led chip light for Indicator

Know more details,please downlaod specifications:DL-PCB1204UYC-3UY120.pdf
Features:

Package in 8mm tape on 7″ diameter reel.
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow solder process.
3.2mmX1.0mm SMT LED, 1.5mm .
Low power consumption.
Wide viewing angle.
Ideal for backlight and indicator.
AVAILABLE.Various colors and lens types available
The product itself will remain within RoHS compliant Version.

Descriptions:

The 1204 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for miniature applications, etc.

Applications:

Automotive: Backlighting in dashboard and switch.
Telecommunication: Indicator and backlighting in telephone and fax.
Flat backlight for LCD, switch and symbol.
General use.

Part No.	Chip Material	Lens Color	Source Color
DL-PCB1204UYC-3UY120	AlGaInP	Water Clear	Super Yellow

Notes:

All dimensions are in millimeters (inches).
Tolerance is ± 0.10 mm (.004") unless otherwise specified.
Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	75	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
Continuous Forward Current	IF	25	mA
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity *	IV	450	550	---	mcd	IF=20mA (Note 1)
Viewing Angle *	2θ1/2	---	120	---	Deg	IF=20mA (Note 2)
Peak Emission Wavelength	λp	---	592	---	nm	IF=20mA
Dominant Wavelength	λd	---	589	---	nm	IF=20mA (Note 3)
Spectral Line Half-Width	△λ	---	15	---	nm	IF=20mA
Forward Voltage	VF	2.00	2.20	2.80	V	IF=20mA
Reverse Current	IR	---	---	10	µA	V_R=5V

Notes:

Luminous Intensity Measurement allowance is ± 10%.
θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

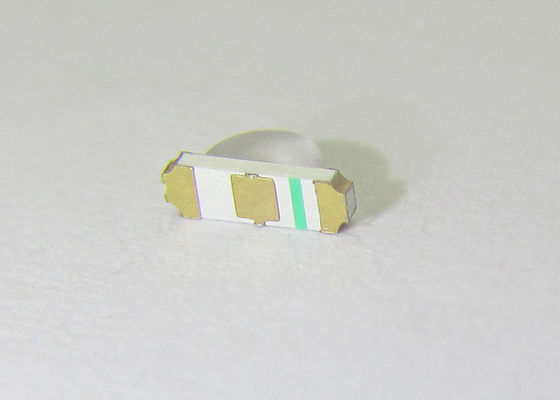

Package Dimension:

Super Yellow Color SMD Chip LED Diode 75mW AlGaInP Chip Material Indicator Applied 0
Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
