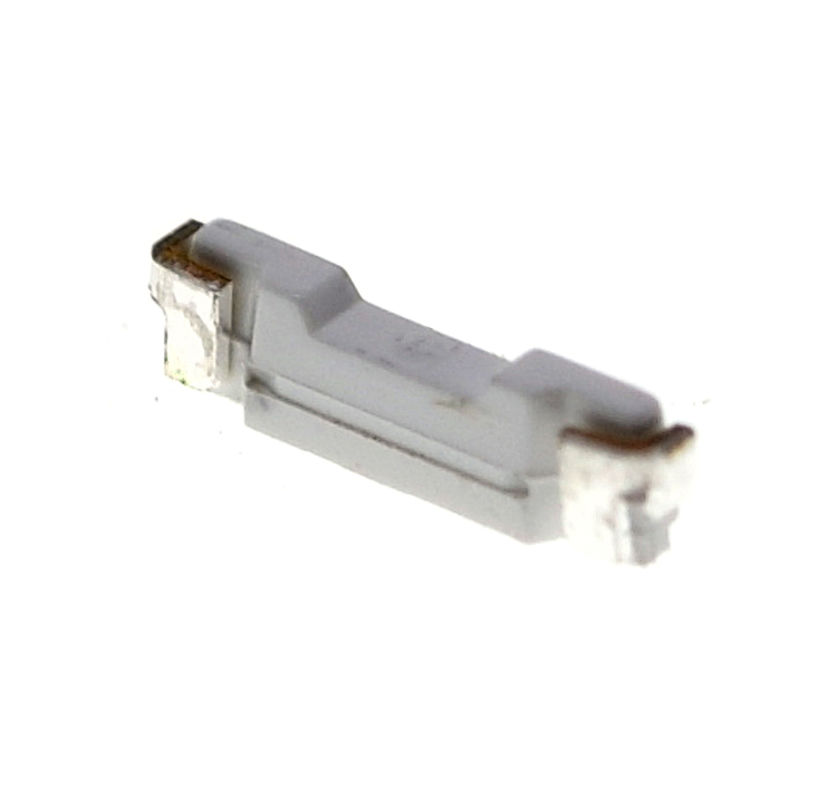

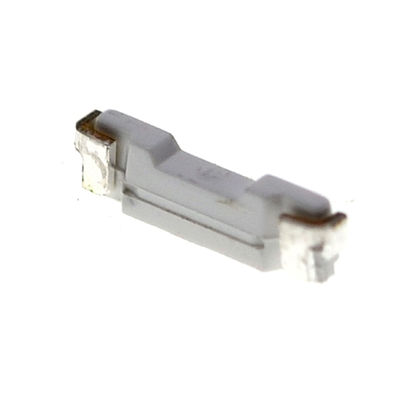

SMD020 1.00mm Height 1502 Package Side View White Chip LED

DL-TOP020W85M-1W120.pdf

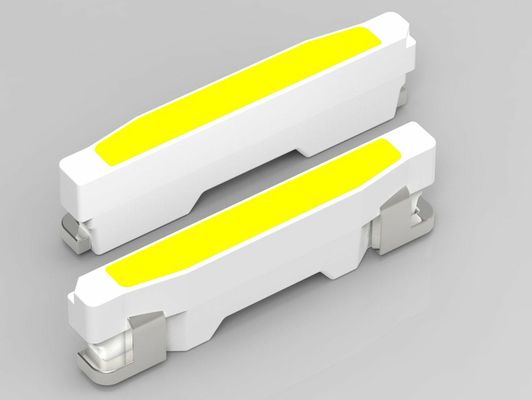

         This is SMD020 1.00mm Height 1502 Package Side View White Chip LED

, its lens color is yellow diffused and warm white color.

Features:

• White SMT package.
• Package: 3.8*1.0*0.6mm
• Side view white LED.
• Wide viewing angle.
• Lead frame package with individual 2 pins.
• Compatible with automatic placement equipment.
• Compatible with infrared and vapor phase reflow solder process.
• The product itself will remain within RoHS compliant Version.

Descriptions:

• Due to the package design, the 020 SMD LED has wide viewing angle, low power consumption and white LEDs are devices which are materialized by combing blue LEDs and special phosphors. This feature makes the LED ideal for light guide application.
• The 020 SMD LEDs much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
• The white LED which was fabricated using a blue LED and a phosphor, and the phosphor is excited by blue light and emits yellow fluorescence the mixture of blue light and yellow light results in white emission.
• Utilizing advanced InGaN chip technology.
• Besides, lightweight makes them ideal for miniature applications, etc.

Applications:

• Automotive: Backlighting in dashboard and switch.
• Telecommunication: Indicator and backlighting in telephone and fax.
• Flat backlight for LCD, switch and symbol.
• Indoor signboard use.
• LCD Back Light.
• Indicators.
• Illuminations.
• Mobile phones.
• General use.

Package Dimension:

Notes:

• All dimensions are in millimeters (inches).
• Tolerance is ± 0.10mm (.004″) unless otherwise specified.
• Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Electrical Optical Characteristics at Ta=25℃

Notes:

• Luminous Intensity Measurement allowance is ± 10%.
• θ_1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
• It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.

Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)

CIE Chromaticity Diagram:

Chromaticity Coordinates Specifications for Bin Rank:(1)

Chromaticity Coordinates Specifications for Bin Rank:(2)

Chromaticity Coordinates Specifications for Bin Rank:(3)

Reliability Test Items And Conditions:

The reliability of products shall be satisfied with items listed below:

Confidence level: 90%.

LTPD: 10%.

1) Test Items and Results:

2) Criteria for Judging the Damage:

*) F.V.: First Value.

Reel Dimensions:

Carrier Tape Dimensions:

Loaded quantity 3000/4000PCS per reel.

Please read the following notes before using the product:

1. Over-current-proof

Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 The LEDs should be used within a year.

2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

2.6 If the moisture adsorbent material (silica gel) has fabled away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours.

3. Soldering Condition

3.1 Pb-free solder temperature profile.

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

4. Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

5. Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.

6. Caution in ESD

Static Electricity and surge damages the LED. It is recommended to use a wrist band or anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be properly grounded.
