1.10Mm Height 0805 Package Pure Green Chip Led Emitting Color Changeable

1.10Mm Height 0805 Package Pure Green Chip Led Emitting Color Changeable

1.10Mm Height 0805 Package Pure Green Chip Led Emitting Color Changeable

Product Details:

Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-PCB0805PGC-1PG120

Payment & Shipping Terms:

Minimum Order Quantity: 3,000pcs
Price: US$ 0.03-0.05per unit (Pieces) can be discussed
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 10 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 2,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: 0805 Package Pure Green Chip LED Package: 0805 Package Chip LED
Emitted Color: Pure Green Peak Emission Wavelength: 520-530nm
Lens Type: Water Clear Forward Voltage @20ma: 3.0-3.6v
Luminous Intensity: 260-650mcd Viewing Angle: 120 Deg

DL-PCB0805PGC-1PG120.pdf



         This is 1.10mm height 0805 package pure green chip LED, its lens color is water clear and the emitting color of this size is changeable.





Features:

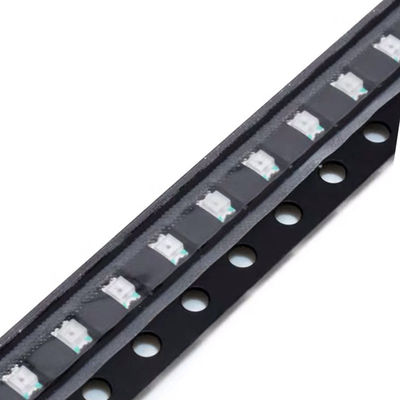

  • Package in 8mm tape on 7″ diameter reel.
  • Compatible with automatic placement equipment.
  • Compatible with infrared and vapor phase reflow solder process.
  • Mono-color type.
  • The product itself will remain within RoHS compliant Version.



Descriptions:

  • The 0805 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  • Besides, lightweight makes them ideal for miniature applications, etc.



Applications:

  • Automotive: Backlighting in dashboard and switch.
  • Telecommunication: Indicator and backlighting in telephone and fax.
  • Flat backlight for LCD, switch and symbol.
  • General use.



Part No. Material Lens Color Source Color
DL-PCB0805PGC-1PG120 InGaN Water Clear Pure Green





Notes:

  • All dimensions are in millimeters (inches).
  • Tolerance is ± 0.10mm (.004″) unless otherwise specified.

Specifications are subject to change without notice.





Absolute Maximum Ratings at Ta=25



Parameters Symbol Max. Unit
Power Dissipation PD 95 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 400 V
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +90℃
Soldering Temperature Tsld 260℃ for 5 Seconds







Electrical Optical Characteristics at Ta=25℃



Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 260 450 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 120 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 520 --- nm IF=20mA
Dominant Wavelength λd --- 525 --- nm IF=20mA (Note 3)
Spectral Line Half-Width △λ --- 35 --- nm IF=20mA
Forward Voltage VF 3.0 3.3 --- V IF =20mA
Reverse Current IR --- --- 10 µA VR=5V



Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
