0.39 Inch Dual Digit White SMD led number display common cathode and anode

0.39 Inch Dual Digit White SMD led number display common cathode and anode
0.39 Inch Dual Digit White SMD led number display common cathode and anode 0.39 Inch Dual Digit White SMD led number display common cathode and anode

Large Image :  0.39 Inch Dual Digit White SMD led number display common cathode and anode

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL2-PCB391XWA
Payment & Shipping Terms:
Minimum Order Quantity: 3000PCS
Price: US$ 0.012-0.015 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description

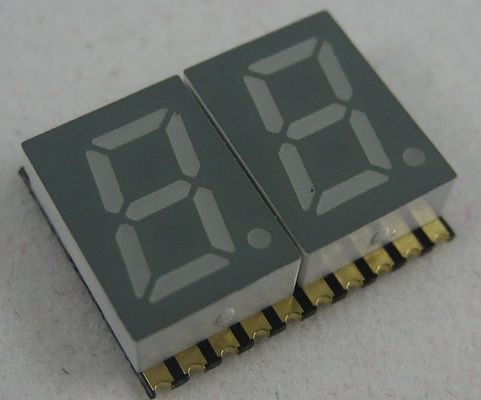

Product Name: White SMD LED Display Package: 0.39 Inch
Emitted Color: White Chromaticity Coordinates: Chromaticity Coordinates X:0.30 Y:0.31
Model Number: DL2-PCB391XWA Lens Color: White Diffused
Forward Voltage @60ma: 3.0-3.4v Luminous Flux: 8mcd
Viewing Angle: 120 Deg Power Dissipation: 100mW
High Light:

led seven segment display

,

led bar display

0.39 Inch Dual Digit White SMD led number display common cathode and anode



White SMD LED Displays
Features:

  • 0.39″ (inch) digit height.
  • Packaged in tape and reel for SMT manufacturing.
  • Design flexibility (common cathode and anode).
  • Categorized for luminous intensity.
  • The thickness is thinness than tradition display.
  • The product itself will remain within RoHS compliant Version.

Descriptions:

  • The SMD type is much smaller than tradition type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  • These devices are made with white segments and gray surface.


Applications:

  • Suitable for indoor use.
  • Audio equipment.
  • Set top box.
  • Game machine.
  • Channel indicator of TV.



Device Selection Guide





Model No. Chip Material Source Color Description
DL2-PCB391CWA InGaN White Common Cathode
DL2-PCB391AWA White Common Anode
















Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation (Per Segment) PD 75 mW

Peak Forward Current (Per Segment)
(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Continuous Forward Current (Per Segment) IF 25 mA
Derating Linear From 50℃   0.35 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +105℃
Storage Temperature Range Tstg -40℃ to +105℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition

Luminous Intensity
(Per Segment)

IV 5 10 --- mcd IF=10mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) IV-M     2:1   IF=10mA
Chromaticity Coordinates X --- 0.30 ---   IF=20mA
Y --- 0.31 ---
Forward Voltage (Per Segment) VF 3.0 3.3 --- V IF=20mA
Reverse Current (Per Segment) IR --- --- 100 µA VR=5V









Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.


 White SMD LED Displays Package Dimension:
