0.28 Inch SMD Single Digit LED Display / seven segment display

Name: 0.28 Inch SMD Single Digit LED Display / seven segment display
Brand: DOUBLE LIGHT
SKU: DL1-PCB281XWA
Price: 0.012 USD
Availability: InStock
Rating: 4.8 (134 reviews)

Large Image : 0.28 Inch SMD Single Digit LED Display / seven segment display

Product Details:

Place of Origin:	China (mainland)
Brand Name:	DOUBLE LIGHT
Certification:	ISO9001:2008/ROHS
Model Number:	DL1-PCB281XWA

Payment & Shipping Terms:

Minimum Order Quantity:	3000PCS
Price:	US$ 0.012-0.015 per unit (Pieces)
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	5-7 working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	15,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:	White SMD LED Display	Package:	0.28 Inch
Emitted Color:	White	Chromaticity Coordinates:	Chromaticity Coordinates X:0.30 Y:0.31
Model Number:	DL1-PCB281XWA	Lens Color:	White Diffused
Forward Voltage @60ma:	3.0-3.4v	Luminous Flux:	8mcd
Viewing Angle:	120 Deg	Power Dissipation:	100mW
High Light:	alphanumeric led display , led bar display

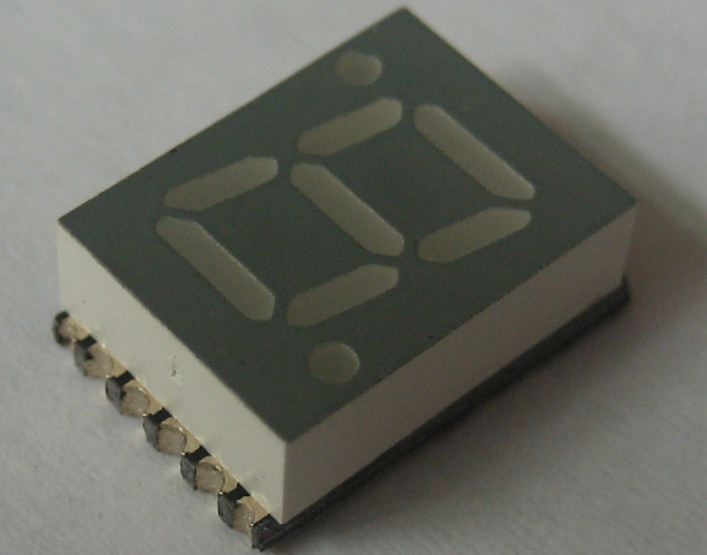

0.28 Inch SMD Single Digit LED Display / seven segment display

White SMD LED Displays
Features:

0.28″ (inch) digit height.
Packaged in tape and reel for SMT manufacturing.
Design flexibility (common cathode and anode).
Categorized for luminous intensity.
The thickness is thinness than tradition display.
The product itself will remain within RoHS compliant Version.

Descriptions:

The SMD type is much smaller than tradition type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
These devices are made with white segments and gray surface.

Applications:

Suitable for indoor use.
Audio equipment.
Set top box.
Game machine.
Channel indicator of TV.

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation (Per Segment)	PD	75	mW
Peak Forward Current (Per Segment) (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
Continuous Forward Current (Per Segment)	IF	25	mA
Derating Linear From 50℃		0.35	mA/℃
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-40℃ to +105℃
Storage Temperature Range	Tstg	-40℃ to +105℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity (Per Segment)	IV	5	10	---	mcd	IF=10mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment)	I_V-M			2:1		IF=10mA
Chromaticity Coordinates	X	---	0.30	---		IF=20mA
Chromaticity Coordinates	Y	---	0.31	---		IF=20mA
Forward Voltage (Per Segment)	VF	3.0	3.3	---	V	IF=20mA
Reverse Current (Per Segment)	IR	---	---	100	µA	V_R=5V

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity *	IV	1500	3000	---	mcd	IF=20mA (Note 1)
Viewing Angle *	2θ1/2	---	30	---	Deg	IF=20mA (Note 2)
Chromaticity Coordinates	x	---	0.30	---		IF=20mA (Note 3)
Chromaticity Coordinates	y	---	0.31	---		IF=20mA (Note 3)
Forward Voltage	VF	3.00	3.30	4.00	V	IF=20mA
Reverse Current	IR	---	---	10	µA	V_R=5V

Notes:

Luminous Intensity Measurement allowance is ± 10%.
θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.

White SMD LED Displays Package Dimension:

0.28 Inch SMD Single Digit LED Display / seven segment display 0

DL1-PCB281CWA

0.28 Inch SMD Single Digit LED Display / seven segment display 1

DL1-PCB281AWA

0.28 Inch SMD Single Digit LED Display / seven segment display 2

Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
