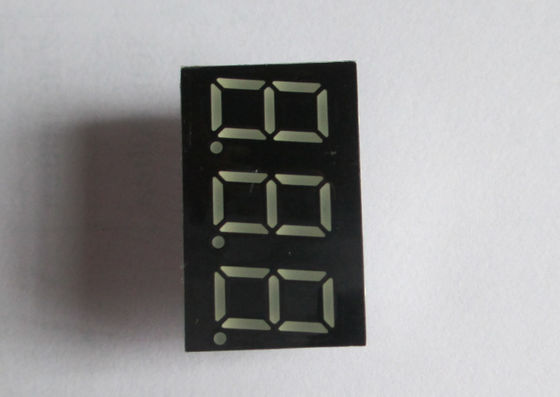

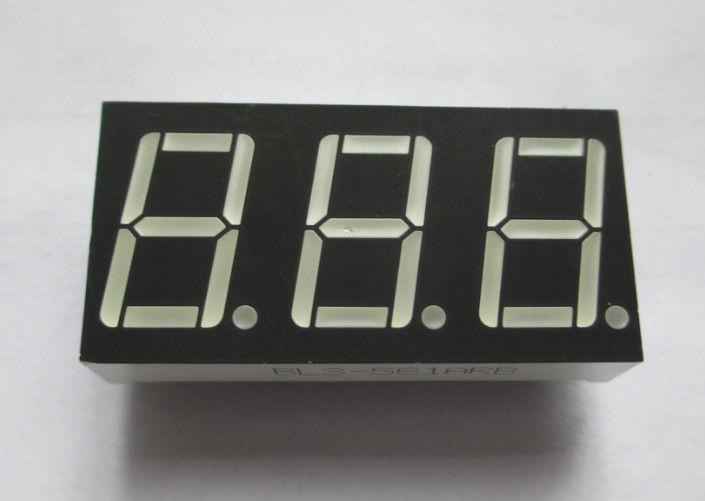

White Diffused segments / black surface LED Digital Display 0.52 Inch Triple Digit

White Diffused segments / black surface LED Digital Display 0.52 Inch Triple Digit

Triple Digit Numeric Displays

Features:

1. 0.52″ (inch) digit height.
2. Excellent segment uniformity.
3. Sold state reliability.
4. Industrial standard size.
5. Low power consumption.
6. The product itself will remain within RoHS compliant Version

Descriptions:

1. The DL3-521XBB series is a lager10.20mm (0.40″) high seven segments display designed for viewing distances up to 7 meters.
2. These displays provide excellent reliability in bright ambient light.
3. These devices are made with white segments and black surface.

Applications:

1. Audio equipment.
2. Instrument panels.
3. Digital read out display.

Device Selection Guide:

Triple Digit Numeric Displays Absolute Maximum Ratings at Ta=25℃

Triple Digit Numeric Displays Electrical Optical Characteristics at Ta=25℃

Notes:

1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

0.52 Inch Triple Digit Numeric Displays Package Dimension:

DL3-521ABB

DL3-521CBB

Digit LED DisplaysTypical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)
