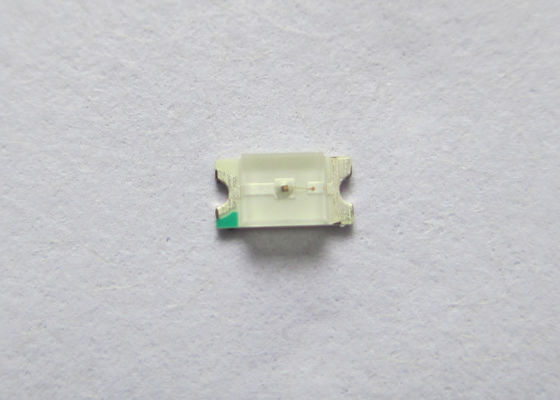

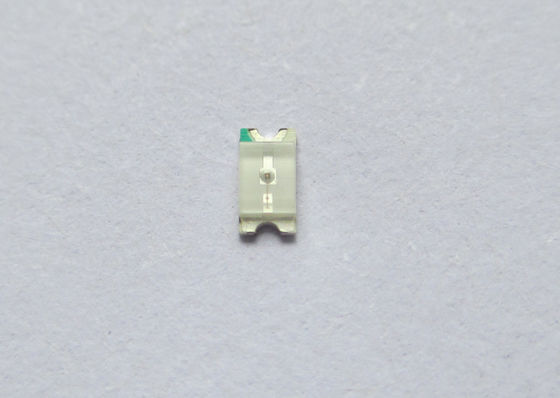

SMD LED 0805 Package Yellow Green 572nm Led Light Emitting Diode Luminous Intensity 50mcd

SMD LED 0805 Package Yellow Green 572nm Led Light Emitting Diode Luminous Intensity 50mcd
SMD LED 0805 Package Yellow Green 572nm Led Light Emitting Diode Luminous Intensity 50mcd SMD LED 0805 Package Yellow Green 572nm Led Light Emitting Diode Luminous Intensity 50mcd

Large Image :  SMD LED 0805 Package Yellow Green 572nm Led Light Emitting Diode Luminous Intensity 50mcd

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-PCB0805YGC-1YG120
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: US$ 0.03-0.033per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 10,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: SM Led Light Emitting Diode Package: 0805 SMD LED
Emitted Color: Yellow Green Peak Emission Wavelength: 570nm
Chip Material: Gap Lens Type: Water Clear
Forward Voltage @20ma: 2.2-2.4v Luminous Intensity: 30-60mcd
Viewing Angle: 120 Deg
High Light:

light emitted diode

,

led emitting diode

SMD LED 0805 Package Yellow Green 572nm Led Light Emitting Diode Luminous Intensity 50mcd



0805 SMD LED Light Emitting Diode



Features:

  1. Package in 8mm tape on 7" diameter reel.
  2. Compatible with automatic placement equipment.
  3. Compatible with infrared and vapor phase reflow solder process.
  4. Mono-color type.
  5. The product itself will remain within RoHS compliant Version.

Applications:

  1. The 0402 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. Besides, lightweight makes them ideal for miniature applications, etc



Descriptions:

  1. Automotive: Backlighting in dashboards and switches.
  2. Telecommunication: Indicator and backlight in telephone and fax
  3. Indicator and backlight for audio and video equipment.
  4. Indicator and backlight in office and family equipment.
  5. Flat backlight for LCD’s, switches and symbols.
  6. Light pipe application.
  7. General use.



Part No. Chip Material Lens Color Source Color
DL-PCB0805YGC-1PG120 Gap Water Clear Yellow Green













Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 60 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Continuous Forward Current IF 25 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 2000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds




Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 20 50 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 120 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 575 --- nm IF=20mA
Dominant Wavelength λd --- 573 --- nm IF=20mA (Note 3)
Spectral Line Half-Width △λ --- 30 --- nm IF=20mA
Forward Voltage VF 2.00 2.20 2.80 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V




Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



​0402 SMD LED Package Dimension:

SMD LED 0805 Package Yellow Green 572nm Led Light Emitting Diode Luminous Intensity 50mcd 0
