3528 SMD LED Super Yellow Chip Led Light Emitting Diode 350mcd

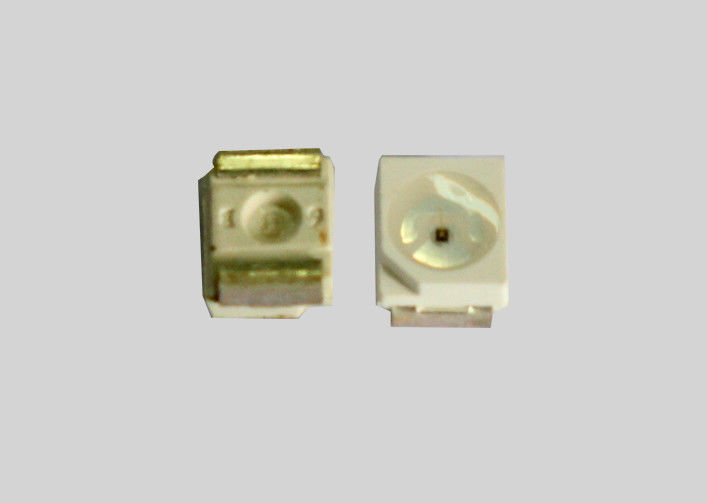

Large Image : 3528 SMD LED Super Yellow Chip Led Light Emitting Diode 350mcd

Product Details:

Place of Origin:	China (mainland)
Brand Name:	DOUBLE LIGHT
Certification:	ISO9001:2008/ROHS
Model Number:	DL-TOP3528UYC-1UY120

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	US$ 0.03-0.033per unit (Pieces)
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	5-7 working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	10,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:	Led Light Emitting Diode	Package:	3528 SMD LED
Emitted Color:	Super Yellow	Peak Emission Wavelength:	590nm
Chip Material:	AlGaInP	Lens Type:	Water Clear
Forward Voltage @20ma:	2.0-2.2v	Luminous Intensity:	180-260mcd
Viewing Angle:	120 Deg
Highlight:	light emitted diode , led emitting diode

3528 SMD LED Super Yellow Chip Led Light Emitting Diode 350mcd

3528 SMD LED Light Emitting Diode

Features:

P-LCC-2 package.
White package.
Optical indicator.
Colorless clear window.
Ideal for backlight and light pipe application.
Inter reflector.
Wide viewing angle.
Suitable for automatic placement equipment.
Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
Available on tape and reel (8mm Tape).
The product itself will remain within RoHS compliant Version.

Applications:

The TOP3528 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Descriptions:

Automotive: Backlighting in dashboards and switches.
Telecommunication: Indicator and backlight in telephone and fax
Indicator and backlight for audio and video equipment.
Indicator and backlight in office and family equipment.
Flat backlight for LCD’s, switches and symbols.
Light pipe application.
General use.

Part No.	Chip Material	Lens Color	Source Color
DL-TOP3528UYC-1UY120	AlGaInP	Water Clear	Super Yellow

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	60	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
Continuous Forward Current	IF	25	mA
Reverse Voltage	VR	5	V
Electrostatic Discharge (HBM)	ESD	2000	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity *	IV	60	120	---	mcd	IF=20mA (Note 1)
Viewing Angle *	2θ_1/2	---	120	---	Deg	IF=20mA (Note 2)
Peak Emission Wavelength	λp	---	592	---	nm	IF=20mA
Dominant Wavelength	λd	---	589	---	nm	IF=20mA (Note 3)
Spectral Line Half-Width	△λ	---	15	---	nm	IF=20mA
Forward Voltage	VF	1.80	2.20	2.80	V	IF=20mA
Reverse Current	IR	---	---	10	µA	V_R=5V

Notes:

Luminous Intensity Measurement allowance is ± 10%.
θ_1/2is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

3528 SMD LED Package Dimension:

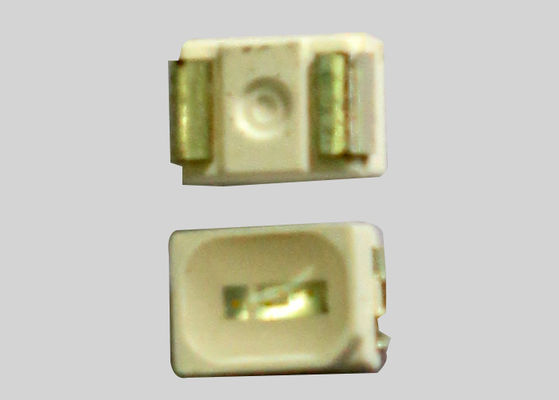

3528 SMD LED Super Yellow Chip Led Light Emitting Diode 350mcd 0
