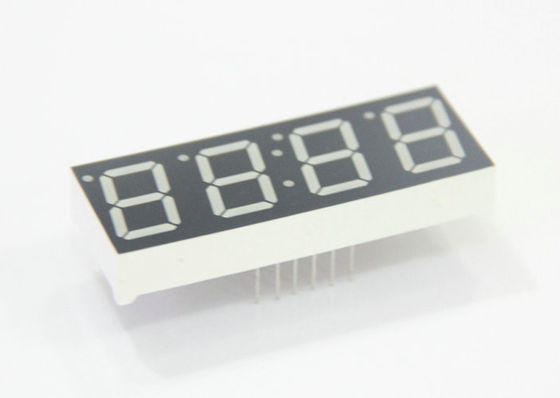

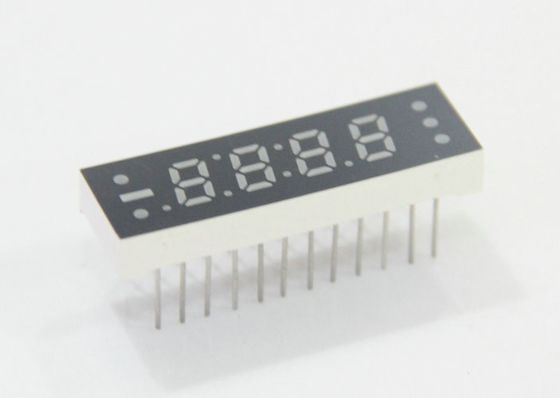

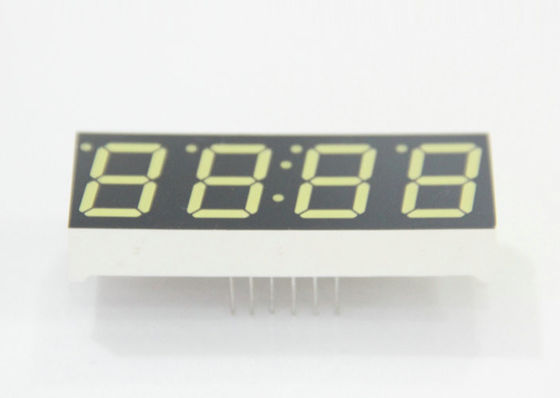

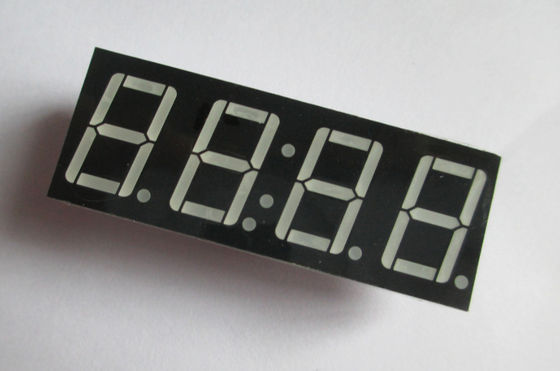

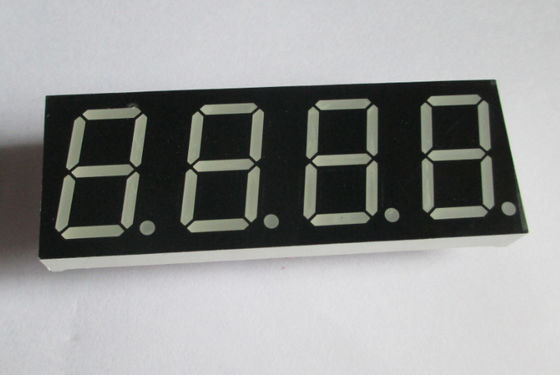

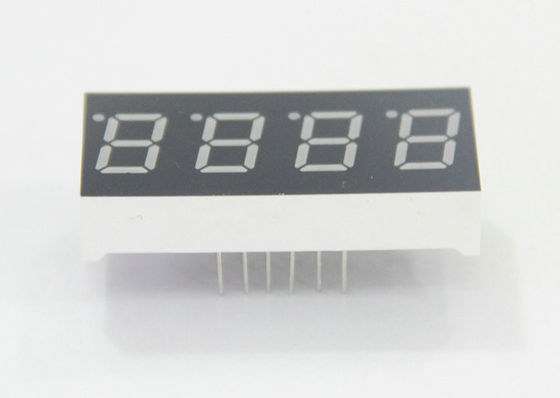

Common anode white emitting color 4 digit 7 segment displays 572nm

Common anode white emitting color 4 digit 7 segment displays 572nm
Common anode white emitting color 4 digit 7 segment displays 572nm Common anode white emitting color 4 digit 7 segment displays 572nm Common anode white emitting color 4 digit 7 segment displays 572nm Common anode white emitting color 4 digit 7 segment displays 572nm Common anode white emitting color 4 digit 7 segment displays 572nm Common anode white emitting color 4 digit 7 segment displays 572nm

Large Image :  Common anode white emitting color 4 digit 7 segment displays 572nm

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL2-501XYGB
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 10-15 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 8,000,000pcs per Day
Detailed Product Description
Product Name: 7 Segment LED Display Package: 0.5 Inch
Emitted Color: Yellow Green Peak Emission Wavelength: 572nm
Chip Material: GaP Face Color: Black Surface
Forward Voltage @20ma: 2.1V Luminous Intensity: 3-5mcd
High Light:

brightest smd led chip

,

led bar display

​7 Segment LED DisplayKey Specifications/Special Features:



  1. Specifications:
    • Emitting colors: red
    • Digits quantity: 2
    • Surface colors: black/gray surface
    • Chip materials: InGaN/GaN/InGaAlP
    • Lens colors: yellow diffused
    • Polarity: common anode/cathode
    • Operating temperature range: -25 to +85°C
    • Emitting colors are available: white, blue, red, green, yellow, orange and dual color
  2. Features:
    • Low-voltage and current operating
    • Ultra low-power consumption
    • Solid-state LED chip based
    • Black face empty seal
    • ESD 1000V
    • IC compatible, easy assembly
    • RoHS Directive-compliant
  3. Applications:
    • Audio equipment or instrument panels
    • General use for digital indicators
    • Multimedia product
    • Bank exchange rate display
    • LED clock display
    • Display for gas stations, charging stations and other different display areas of equipment/machine
    • DVD player LED displays
    • Home appliance, such as air conditioner, water heater, air purifier
    • Kitchen appliance such as rice cookers, refrigerators, ovens, cooktops, ranges, dishwashers, microwave ovens
  4. We promise:
    • Your inquiry be replied in shortest time, no more than 12 hours
    • 15 years of experience in LED and 7 segment LED display industry
    • Good after-service
    • Prompt delivery time
    • OEM/ODM orders are accepted
  5. For OEM orders
    • Usually, we make samples free for customers, while customers afford shipping charge of samples
    • If sample need new mold, customers will afford the mold charge
  6. For ODM orders:
    • We have an experienced designer and technician team to develop new products according to customer's demands
    • We provide with various solutions
    • Providing you with the best service is our mission
    • Sizes:
    • Digit size: 14.20mm (0.56 inches)
    • Outer size: 25 x 19 x 8mm





Device Selection Guide:

Model No. Chip Material Source Color Description
DL2-501ARB Gap Yellow Green Common Anode
DL2-501CRB Yellow Green Common Cathode




  1. Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation (Per Segment) PD 84 mW

Peak Forward Current (Per Segment)

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current (Per Segment) IF 30 mA
Dating Linear From 25℃   0.25 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds




Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity IV 1.3 2.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1   IF=10mA
Peak Emission Wavelength λp --- 568 --- nm IF=20mA
Dominant Wavelength λd --- 572 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF --- 2.20 2.80 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V




Notes:



Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



7 Segment LED Display Package Dimension:

Common anode white emitting color 4 digit 7 segment displays 572nm 0


      DL2-501CYGB

Common anode white emitting color 4 digit 7 segment displays 572nm 1
